12mm Full Color Leds Pixel Light Sm16716

12mm Full Color Leds Pixel Light Sm16716 thumbnail-1
12mm Full Color Leds Pixel Light Sm16716 photo-1
US$ 0.1 - 0.38 MOQ: 100 Pieces
Key Specifications
Get Latest Price
LED Light Source:
Epistar F8mm Dip LED
Input Voltage(V):
DC5V
Lamp Power:
0.3
Contact Supplier Request Quote Chat Now
Shenzhen Soya LED Technology Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
SHENZHEN
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
LED Light Source Epistar F8mm Dip LED
Input Voltage(V) DC5V
Lamp Power 0.3
Lamp Luminous Flux(lm) 18-20
Lamp Luminous Efficiency(lm/w) 0.3
Color Temperature(CCT) Other, RGB pixel digital
Working Temperature(℃) -40, +60
Working Lifetime(Hour) 50000
Lamp Body Material PVC
IP Rating IP66
Certification CCC, CE, EMC
Emitting Color Changeable
Place of Origin Guangdong, China
Brand Name SOYA LED
Model Number SY-1515-ICRGB

12mm full color leds pixel light sm16716

Product Description

1. This IP68 12mm full color leds pixel light sm16716 festive string of addressable RGB LEDs can add color to indoor or outdoor displays.

Much like our addressable RGB digital LED strips, this 12mm RGB led pixel chain of lights is composed of 50 individually sealed 8mm diffused RGB LED and an internal 8-bit PWM LED driver ( 24-bit color for 16 million different shades) like ws2801 / DMX512 / SM16716/ LPD6803/ WS2811, etc.



2. It has a microprocessor that control the RGB LED and provides various dynamic effects of different colors or luminance, that means they are digitally-controllable, you can set to any colors or animates. ( You need to buy a pixel led controller to run it).



3. These 12mm full color leds pixel light sm16716 have a flat square back,  the RGB LED and IC driver chip is molded into a 'dot' of silicone, sealed, so they are weatherproof and rugged. With four flanges so they can be pushed into 12mm drill holes in thin sheet material  up to 1.5mm/0.06" thick


4. The pixels led are connected by a 4-pin cable. +5V , GND , DAT and CLK .

In both ends there are  two JST SM 4-pin connectors that you can connect multiple 12mm full color leds pixel light sm16716 in a row.  as many as you wish, just watch for how much current they want. We recommend every 50 pcs/ strand should be powerd by power supplies.

Product features



Item

12mm full color leds pixel light sm16716

Model NO.

SY-1515ICRGB

IC driver

WS2801 / DMX512 / WS2811/ SM16716/ P9813, etc

Power

0.3W

Work Voltage

DC 5V

Beam Angle

≥120

LED Quantity

1 pcs  DIP 8mm LED

Emitting color

RGB pixel digital

Dimension

26*18*23mm

Waterproof

IP66 / IP68

Life-span

50,000H

Certificate

CE&RoHS&EMC

Warranty

2 years

Brightness

Red = 3.3 Lumens/300 mcd, Green = 10 Lumens/1000 mcd,

Blue = 2.7 Lumens/300 mcd

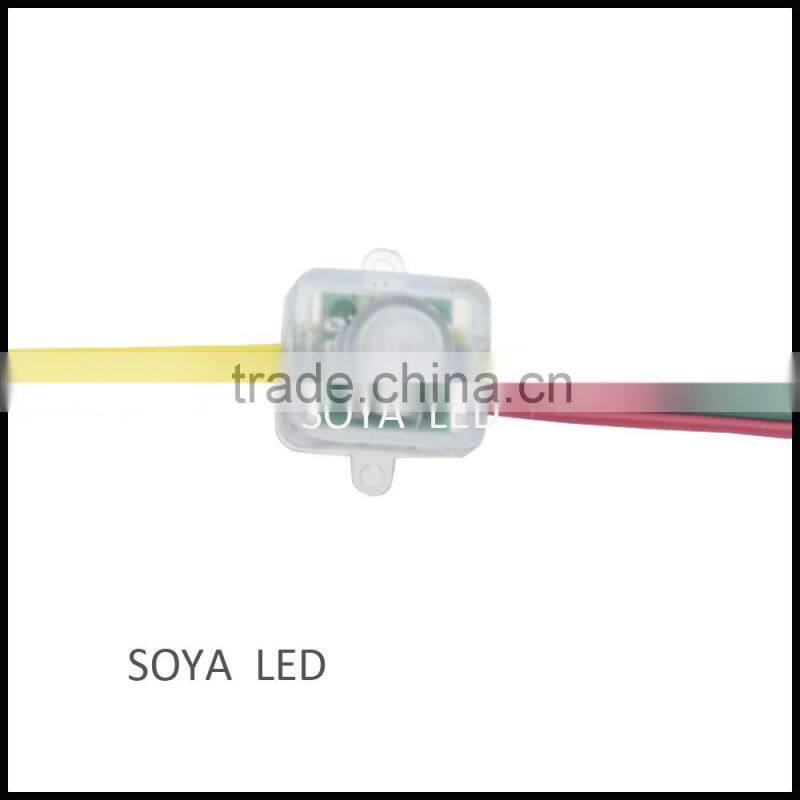

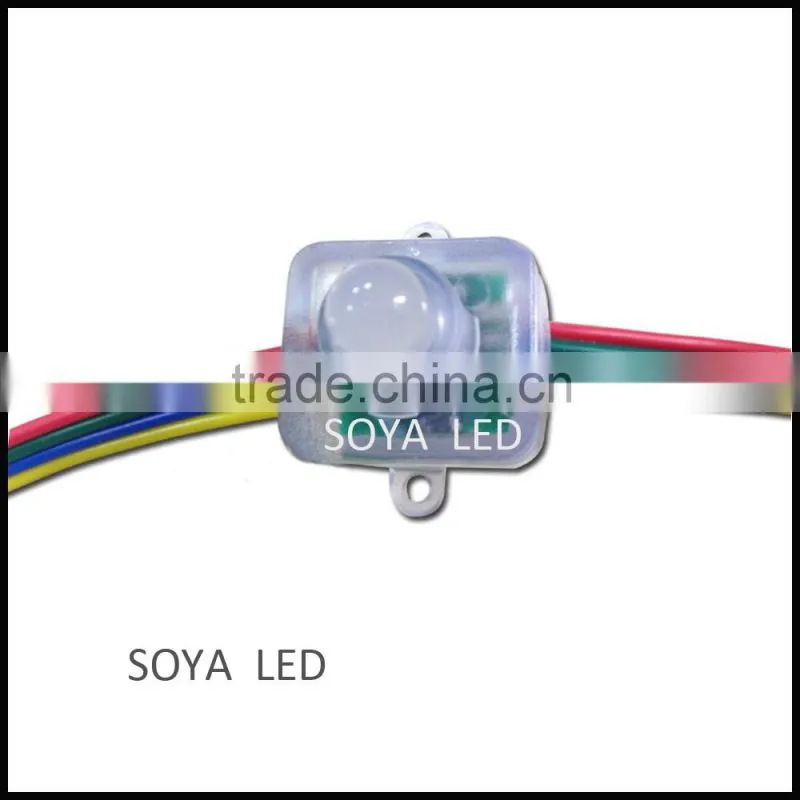

Detailed Images

12mm full color leds pixel light sm16716 detailed images:

12mm full color leds pixel light sm16716

12mm full color leds pixel light sm1671612mm full color leds pixel light sm16716

12mm full color leds pixel light sm16716

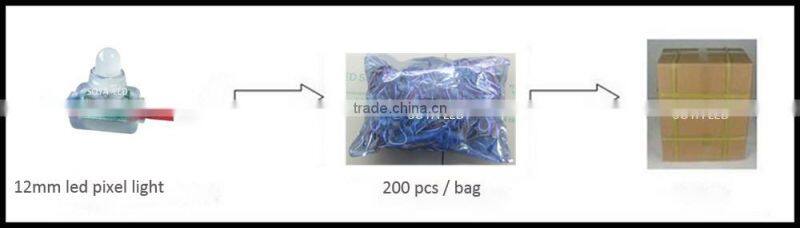

Packaging & Shipping

  12mm full color leds pixel light sm16716 packaing12mm full color leds pixel light sm16716

Trade Terms

1. Payment Terms:

T/T, Western Union, Aliexpress Escrow

2. Lead Time:

Usually we had materials in stock, regular order delivery time 1--7days after the profoma invoice paid,

OEM products:  10--15days (Customized PCB board).

3.Warranty:

2 years warranty since the data of purchase our LED products.

4. Delivery Way:

DHL, Fedex, TNT UPS, EMS door to door service, by sea, by air, etc
