IP68 12mm rgb pixel led light sm16716
- 5000 Piece / Pieces per Month
- SHENZHEN
- T/T L/C D/P D/A Credit Card PayPal
- WS2811 Digital Addressable LED Strip 12V Programmable 5050 RGB 5M 60 LED Strip Dream Color White PCB Waterproof
- 60leds Per Meter RGB Flexible Led Strip 020 Led strip 5m tape light 12v led strip IP67 waterproof
- Magic car light RGB IP65 led strip light kit glow strip car WS2811 252LED 12V
- Dv24v 420leds/m 12w/m Orange Cob Led Strip Flexible COB LED Strip Light
- Flexible 2835 led strip light High Brightness IP65 IP20 5M 120 led per meter factory sales
- Led strip car light RGB led strip light kit IP65 WS2811 252LED 12V glow strip car
Product Details
LED Light Source: | Epistar F8mm Dip LED | Input Voltage(V): | DC5V | Lamp Power: | 0.3 |
Lamp Luminous Flux(lm): | 18-20 | Lamp Luminous Efficiency(lm/w): | 0.3 | Color Temperature(CCT): | Other, RGB pixel digital |
Working Temperature(℃): | -40, +60 | Working Lifetime(Hour): | 50000 | Lamp Body Material: | PVC |
IP Rating: | IP66 | Certification: | CCC, CE, EMC | Emitting Color: | Changeable |
Place of Origin: | Guangdong, China | Brand Name: | SOYA LED | Model Number: | SY-1515-ICRGB |
Product Description

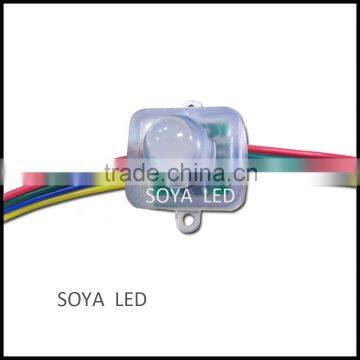

IP68 12mm rgb pixel led light sm16716
1. This IP68 12mm rgb pixel led light sm16716 festive string of addressable RGB LEDs can add color to indoor or outdoor displays.
Much like our addressable RGB digital LED strips, this 12mm RGB led pixel chain of lights is composed of 50 individually sealed 8mm diffused RGB LED and an internal 8-bit PWM LED driver ( 24-bit color for 16 million different shades) like ws2801 / DMX512 / SM16716/ LPD6803/ WS2811, etc.
2. It has a microprocessor that control the RGB LED and provides various dynamic effects of different colors or luminance, that means they are digitally-controllable, you can set to any colors or animates. ( You need to buy a pixel led controller to run it).
3. These IP68 12mm rgb pixel led light sm16716 have a flat square back, the RGB LED and IC driver chip is molded into a 'dot' of silicone, sealed, so they are weatherproof and rugged. With four flanges so they can be pushed into 12mm drill holes in thin sheet material up to 1.5mm/0.06" thick
4. The pixels led are connected by a 4-pin cable. +5V , GND , DAT and CLK .
In both ends there are two JST SM 4-pin connectors that you can connect multiple 12mm led pixel chains in a row. as many as you wish, just watch for how much current they want. We recommend every 50 pcs/ strand should be powerd by power supplies.
Item | IP68 12mm rgb pixel led light sm16716 |
Model NO. | SY-1515ICRGB |
IC driver | WS2801 / DMX512 / WS2811/ SM16716/ P9813, etc |
Power | 0.3W |
Work Voltage | DC 5V |
Beam Angle | ≥120 |
LED Quantity | 1 pcs DIP 8mm LED |
Emitting color | RGB pixel digital |
Dimension | 26*18*23mm |
Waterproof | IP66 / IP68 |
Life-span | 50,000H |
Certificate | CE&RoHS&EMC |
Warranty | 2 years |
Brightness | Red = 3.3 Lumens/300 mcd, Green = 10 Lumens/1000 mcd, Blue = 2.7 Lumens/300 mcd |
IP68 12mm rgb pixel led light sm16716 detailed images:
