Help CenterElectric Heating Element for All Industry Use
Related Products
Specifications
real manufacturerCheap price
As customer's requirement
CE ,ETEX, ISO certificate

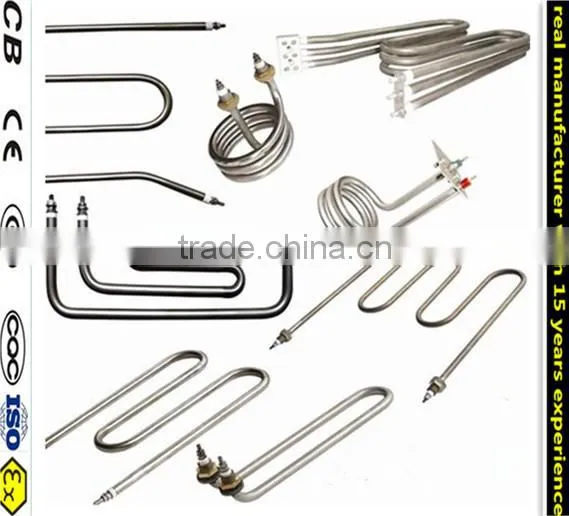

Tubular heater element/heating tube are the most versatile and widely used source of electric heat for industrial, commercial and scientific applications. They can be designed in a wide range of electrical ratings, diameters, lengths, terminations, and sheathmaterials.
Also screw plug immersion heaters, flanged immersion heaters, circulation heaters, and high temperature process air heaters are available. and any other special heaters for particular requirements are available.

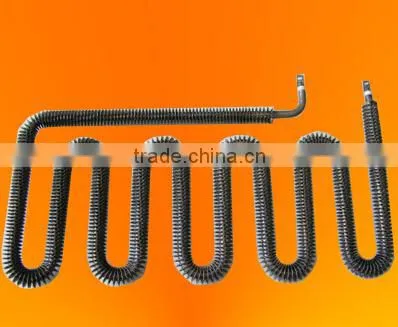

Tubular heater is used for almost every kind of heating appliances. They are easy to form and feature highest mechanical stability and electric properties at the same time. Screw in tubular heater is standardized for use in water or other liquids, Finned tubular heater is especially for air heating cabinets or tunnels. Flange heater is easy to install, control and maintain. Unique designer as your requirement. For corrosive environment, titanium material tubular heating element is better. Additional teflon sleeving is available.
1.We offer standard as well as customized models
2.We offer different tube diameters
voltage: 110V 180V 220V 230V 280V 380V or as customer's demands
Wattage:5KW to 2500KW
3.We offer different sheath materials. It can be availed in different materials like Incoloy 800, SS 304, SS 321, SS 316, Copper & Titanium
4.We offer various shapes as customer demand, immersion heater with flange or screw, explosion proof heater.
5.Various terminal options are available
6.Various shapes and sizes are available
7.Durable and has longer life
Electric kitchenwares
Home appliance or industrial heaters
Commercial or industrial Heater for water,oil heating,tank heating.
Water and Oil Heating Appliances.
Heating Chemical Solutions.
Medical equipments
Used in many other applications.
he following are the most common tubular element sheath materials.
Material |
Material Max. Temp. °C |
Application |
Copper |
150 |
Water, non-corrosive liquids |
Steel |
400 |
Oil immersion |
Stainless Steel 304 |
650 |
Water,Corrosive liquids, food processing |
Stainless Steel 316 |
650 |
Corrosive liquids |
Stainless Steel 321 |
650 |
intergranular corrosion situation |
Incoloy 800 |
800 |
Water ,Corrosive liquids, air, clamp on |
Electricheating element introduce
We have equipment and machines to produce highaccuracy tubular electric heating element, and also have perfect detection methods.Electric heating element is the only product which get National Explosion-ProofCertification. Our products reach Exe Ⅱ, explosion-proof level GYB13.1410 U, accessNational Technology Innovation Fund.
1)Electricheating element shell adopts S31603 stainless steel pipe, shrinkage pipespecifications for diameter12.
2)Electricheating element internal fever materials choose high-temperature alloy wire.Heat conductor and lead electrode adopts advanced soft connection technology,which make heat conductor effectivelyand reliably lead electrode connection for an organic whole, to avoid heatconductor and raises effective electrode from lead to electric heating elementis not hot.
3)Insulatingmaterials use high purity crystalline magnesium oxide powder.
4)Electric heating element of the sealingmaterial adopt high temperature secondary curing insulation sealing materials(epoxy resin), to avoid electric heating elements work long-term insulationdrop, increase leakage current insecurity.
5)Singleelectric heat pipe cold insulation resistance is more than 500 m Ω, dielectricstrength test of 2000 v/min, no breakdown, flashing phenomenon.
Wuxi Hengye Electric Heater Equipment Co.,Ltd is a high-tech real manufacturer, with 15 years rich experience in production electric heating fields, also have many years successful experience in design and production which are accumulated from large-scale engineering projects. Established in 1996, our company registered capital is15 million Yuan RMB, and net assets is 58 million Yuan RMB. Our company covers area 18000 m2& 20000 m2 building area. We have 165 employees, including 47 middle and high ranking technicians. We have passed the National Safety Standard Factory Acceptance inspection.
