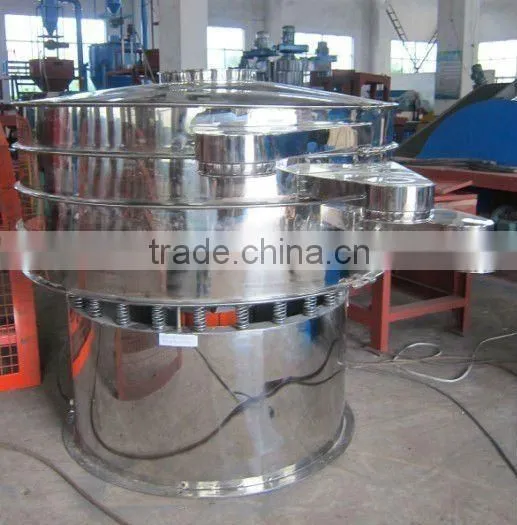

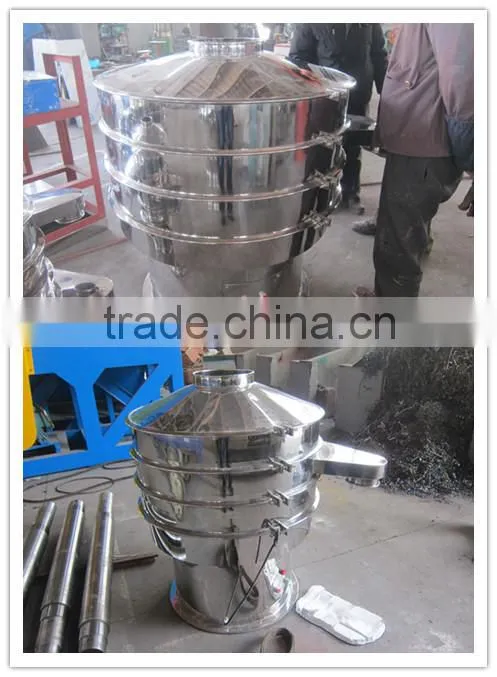

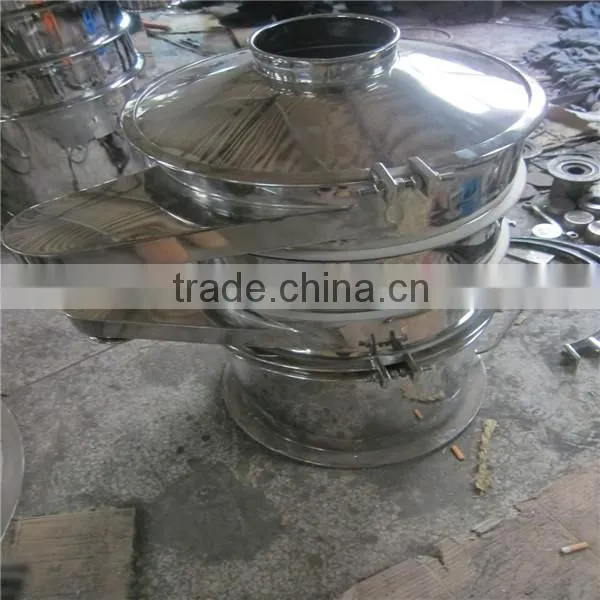

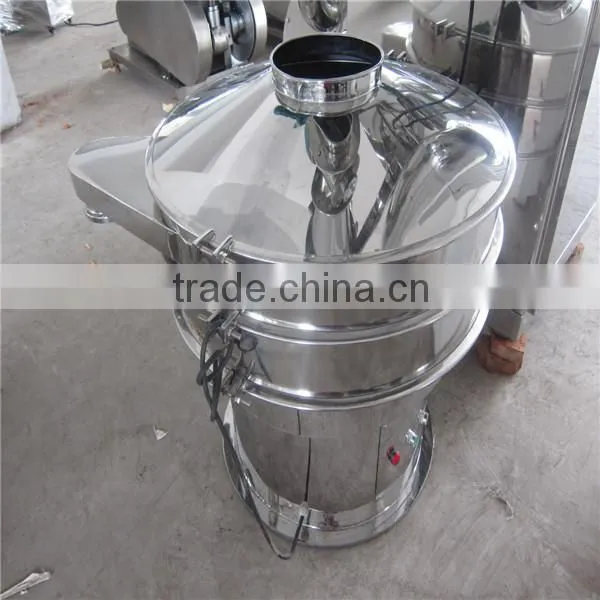

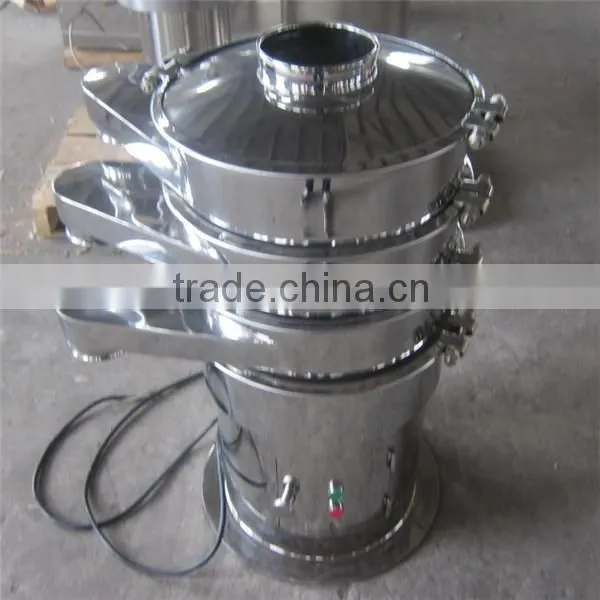

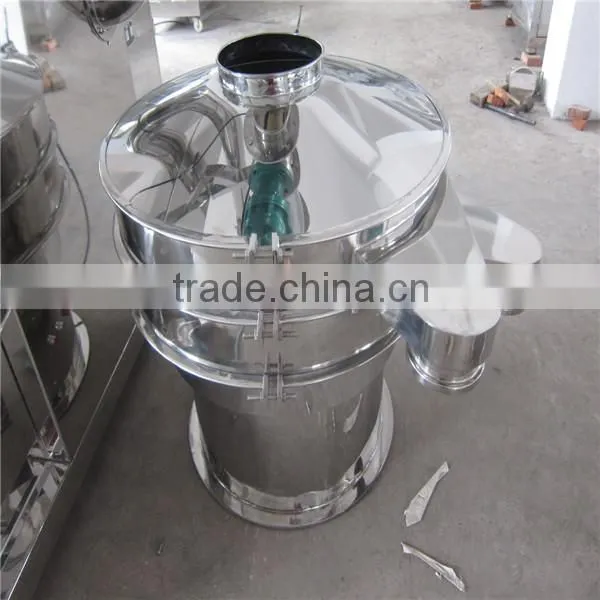

1.Product name: ZS Series Frequency Machine
2.Main Application:
The machine is applied for the sorting of the granule size of dry power material market in the trades medicine,chemical and foodstuff etc.And it can sift out the product continuously .
3.Structure and Characteristics :
The machine is composed of the vertical vibration motor a sieve bottom a mesh frame sieve room rubber vibrating bowl and all fastening pieces,etc.It can be operated for the sorting purpose either in single sieve or multi-sieves with a compact structure easy operating and repairing,smooth running,low noise,large target material treatment good fineness and wide applicability,etc.
4.Technical Data:
Model |
400 |
600 |
800 |
1000 |
1200 |
|
Capacity(kg/h) |
100-800 |
200-1500 |
300-2500 |
50-3500 |
800-5000 |
|
Number of mesh(Mesh) |
2-200 |
2-200 |
2-200 |
2-200 |
2-200 |
|
Vibration frequency(r/min) |
1500 |
1500 |
1500 |
1500 |
1500 |
|
Motor power(kw) |
0.2 |
0.4 |
0.75 |
1.1 |
1.5 |
|
Weight(kg) |
200 |
250 |
320 |
420 |
600 |
Overall size(mm) |
650×500×1100 |
860×650×900 |
1100×850×950 |
1350×1100×1100 |
1600×1250×1100 |
wooden packing
one year guarantee for whole machine
24 hours technical support by email
calling or door-to-door service
user manual and detailed video/CD
