Descriptive abstract:
This type can do dosing and filling work. Due to the special design, it suits most kinds of powder and small granular materials filling, like white sugar, spice powder, milk powder, wheat powder, starch powder, talcum powder, salt, solid drink, white sugar, dextrose, coffee powder, fodder, pharmaceuticals, agriculture pesticide, granular additive, dyestuff, and so on.
Characteristics:
² Made of stainless steel 304, Meet GMP standard
² Servo control auger, more stable and accuracy
² PLC+ Touch screen control, English version interface
² Electric scale connect with touch screen for Weight feedback, the system can adjust at the next filling when detect there have deviation on the first filling
² Save the parameter of each product to later use, to save 8 sets at most.

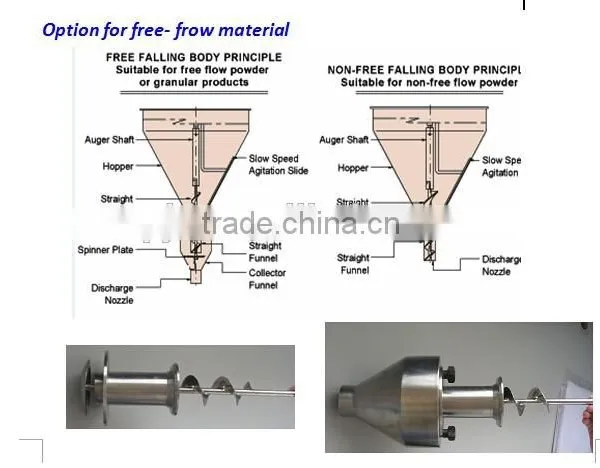

² Changing the auger attachment, it fits for lots of material ranging from fine-powder to granule.

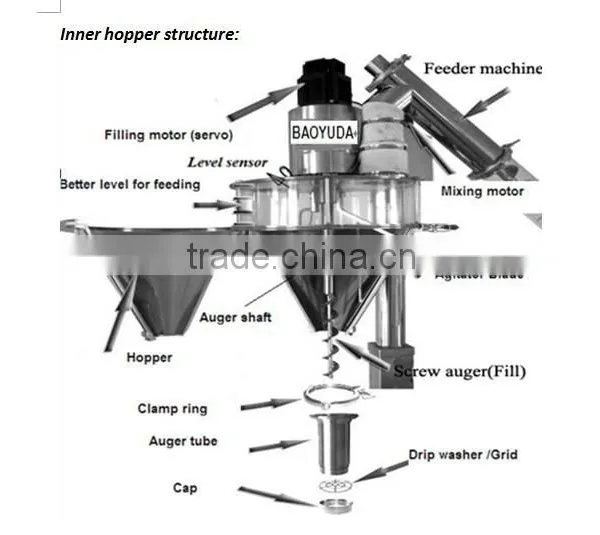

² Hopper with Level sensor to control the feeding machine work automatically
² Foot Pedal control filling or by the delay time set by the touch screen ,all simple opearate
² With worktable—left parts for bag place, middle for dust drop, right for the scale
² Hopper easy load and unload without tools , inner wall polished .easy cleaning
Main Specification
Model |
BYD-BX-13 |
BYD-BX-23 |
Metering Mode |
Auger rotation filling traced by weighing feedback |
|
Hopper |

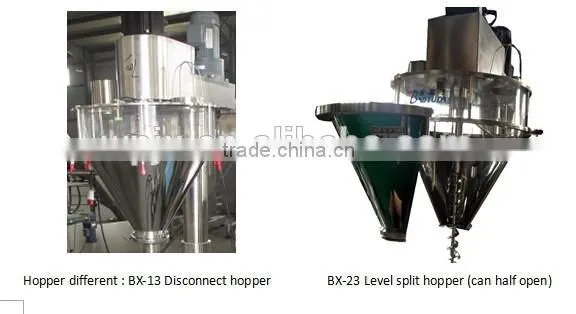

Disconnect hopper 25L |
Level split Hopper 25L |
Display |
PLC ,touch screen control |
|
Packaging Weight |
1g ~ 500g (screw changed) |
|
Packaging Accuracy |
<100g, with <±2%; 100-500g, with <±1% |
|
Packing speed |
15 ~ 60 bpm (detail according to the material and worker’s operation) |
|
Power Supply |
3P / AC208V ~ 415V 50/60HZ |
|
Total Power |
0.93KW |
|
Total Weight |
130Kg |
140Kg |
Overall Dimensions |
870×820×1850mm |
|
