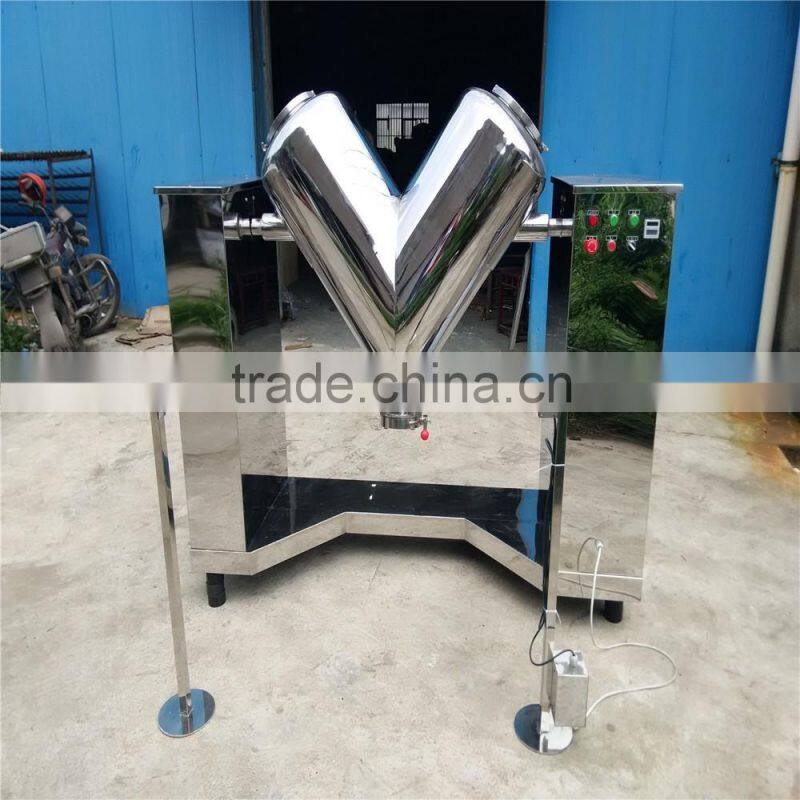

Ghj Series Universal Food Powder Mixer
1.Application:
This series of machine are newly design, high efficient and high accuracy mixer. It is widely used for dry material grains in the field of medical, chemical, food, metallurgical and other industry.
2.Working Principle:
the machine is mainly composed of mixing tank, spiral agitating vane and transmission parts. There are two layers of spiral agitating vane. The outside vanes accumulate the material from side to center, while the inner vanes separate the material from center to side. So that material will mix to each other in convective mixing inside the tank. It’s high efficient.
| VI Series Forced Stirring Mixer | |||||||||
| Technical Data | Total Volume | Max loading volume | Max loading capacity | Mixing Time | Motor Power(KW) | Drum Speed | Stirring speed (rpm) | Machine Size(L*W*H)mm | Weight(kg) |
| VI-180 | 180L | 80L | 80kg | 0-99min | 1.1×1.1 | 12r/min | 500r/min | 1950×650×1750 | 380 |
| VI-300 | 300L | 120L | 80kg | 0-99min | 1.1×2.2 | 12r/min | 500r/min | 2100×650×1850 | 450 |
| VI-500 | 500L | 200L | 80kg | 0-99min | 3×2.2 | 12r/min | 500r/min | 2700×800×2050 | 480 |
| VI-1000 | 1000L | 400L | 80kg | 0-99min | 5.5×2.2 | 10r/min | 500r/min | 3000×1050×2450 | 950 |
| VI-1500 | 1500L | 600L | 80kgL | 0-99min | 7.5×3 | 10r/min | 500r/min | 3600×1100×3100 | 1020 |
| VI-2000 | 2000L | 850L | 80kg | 0-99min | 7.5×4 | 10r/min | 350r/min | 4215×1280×3100 | 2000 |
| VI-2500 | 2500L | 1200L | 80kg | 0-99min | 11×4 | 8r/min | 350r/min | 4260×1280×3200 | 2040 |
| VI-3000 | 3000L | 1500L | 80kg | 0-99min | 11×5.5 | 8r/min | 350r/min | 4400×1300×3300 | 2500 |
| VI-4000 | 4000L | 1800L | 80kg | 0-99min | 15×5.5 | 6r/min | 300r/min | 4800×1080×4200 | 3000 |
| VI-5000 | 5000L | 2200L | 80kg | 0-99min | 15×7.5 | 5r/min | 300r/min | 5656×1300×4380 | 3500 |
4.Feature:
This series of mixer, made by stainless steel, is in unique structure, high efficient, easy operation, widely use and small occupation.

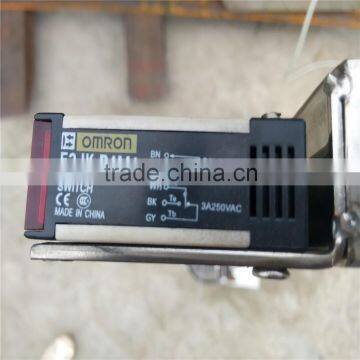

Omron safety sensors
wooden packing
one year guarantee for whole machine
24 hours technical support by email
calling or door-to-door service
user manual and detailed video/CD
How to choose a right mixer ?
1)How many kinds of powder ?what are they ?How many moisture does it have ?
2)pls tell me how many kg per batch.
