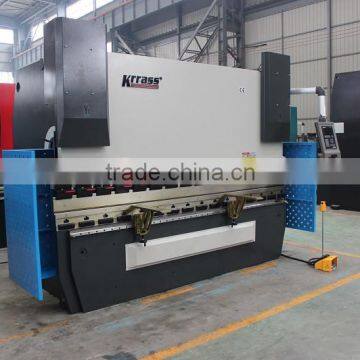

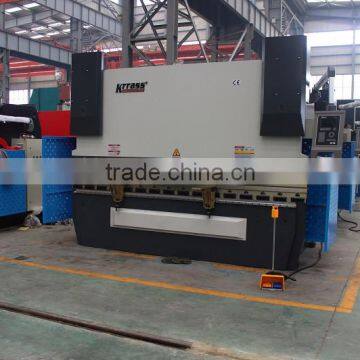

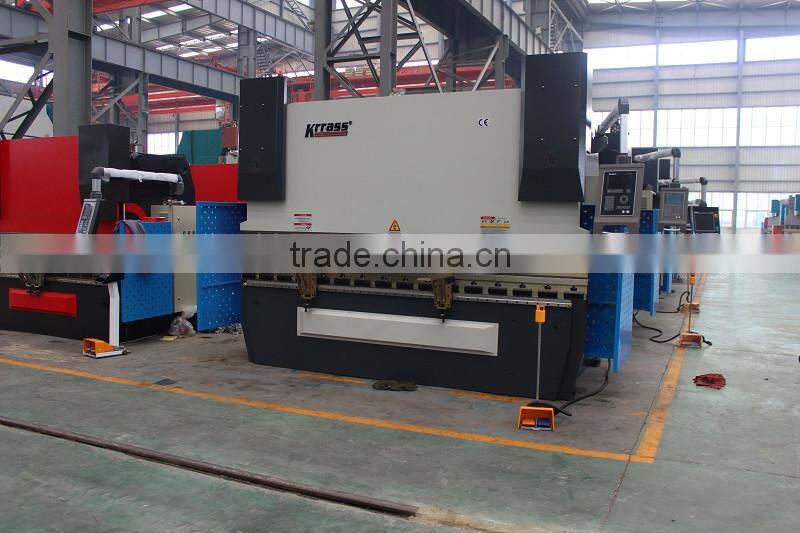

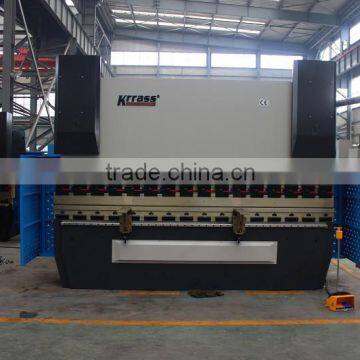

Hydraulic Press Brake,80 Tons Bender,magnetic Sheet Metal Bending Machine

Name: Hydraulic Press Brake,80 Tons Bender,magnetic Sheet Metal Bending Machine
Brand: Krrass
SKU: 119657307
Availability: InStock

US$ 15,640 - 46,041 MOQ: 1 Set

Key Specifications

Condition:

New

Place of Origin:

Jiangsu, China

Brand Name:

Krrass

Nanjing Klaus CNC Machinery Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

shanghai or any port in China

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Place of Origin Jiangsu, China

Brand Name Krrass

Model Number 80 tons bender

Machine Type Press Brake

Raw Material Sheet / Plate Rolling

Material / Metal Processed Stainless Steel

Power Hydraulic

Automation Automatic

Extra Services End Forming

Certification ISO 9001:2000

After-sales Service Provided Engineers available to service machinery overseas

1. Product Description

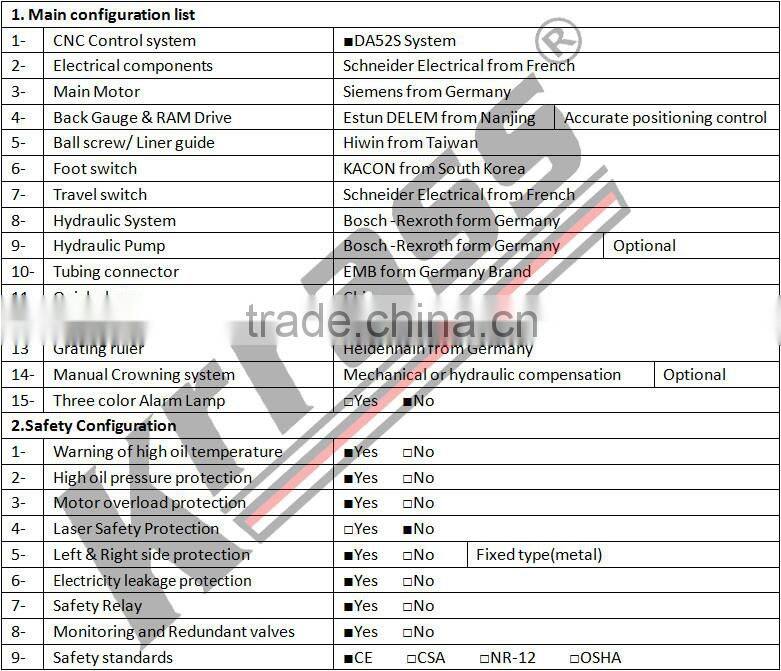

1. Standard Equipment:

Delem DA52S CNC control System
Powered Depth Y1-axis&Y2-axis&X-axis&V-axis&Back gauge X-axis (X-axis 0.01mm/Y1/Y2-axis 0.01mm)
Servo motor control block

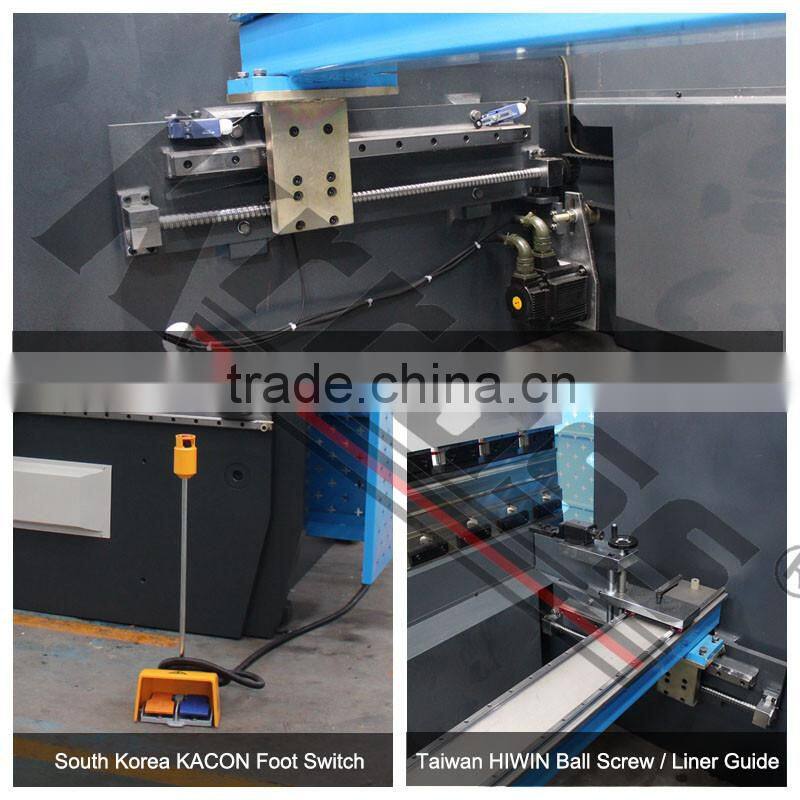

HIWIN Ball screws & Polished rod with 0,01mm accuracy
Plate Support Arms

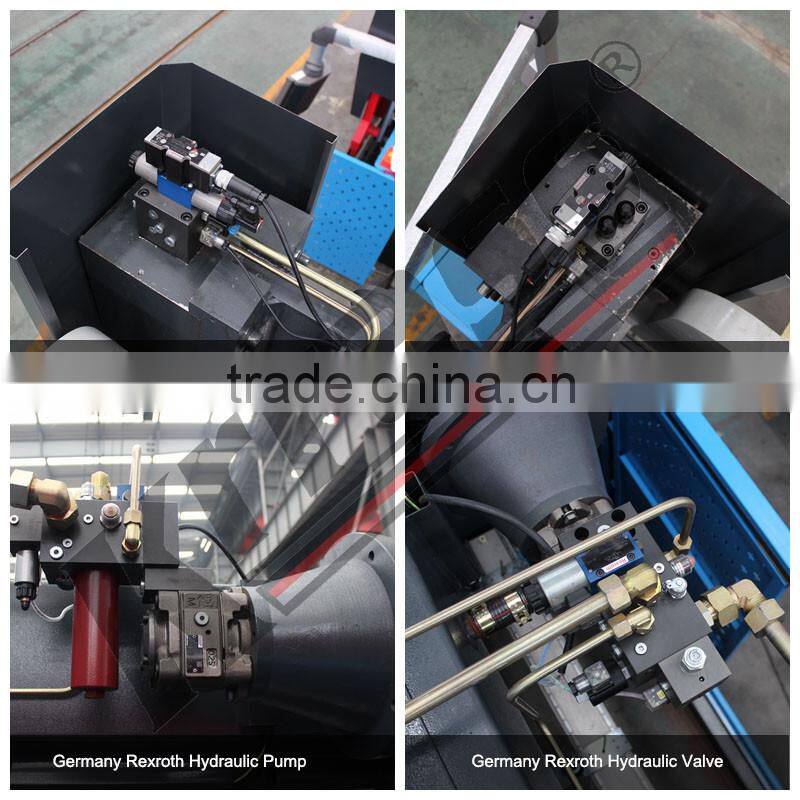

Germany Bosch-Rexroth Hydraulic
Germany EMB Tubing connector
Germany Siemens Main Motor
Tele mecanique/Schneider Electrics
Hydraulic &Electrical overload protection

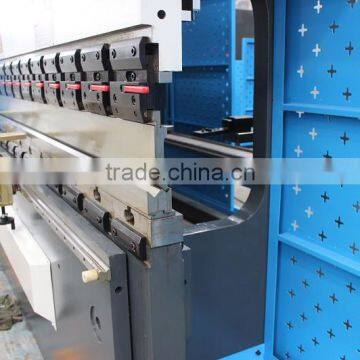

Top and Bottom Tooling(86°,R0.6mm)
Safety Standards(2006/42/EC):

2. Safety Equipment:

1.EN 12622:2009 + A1:2013 2.EN ISO 12100:2010 3.EN 60204-1:2006+A1:2009

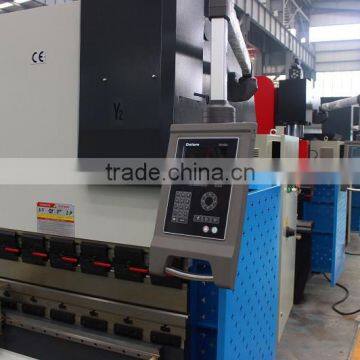

3. Delem DA52S CNC Control system:

The compact DA-52s is a complete CNC solution for conventional as well as synchronised press brakes.
The panel based control, capable of controlling up to 4 axes, can be integrated in cabinets as well as in an optional pendulant arm housing.
Equipped with the Delem user-friendly user interface, the DA-52s provides all main press brake functionality.
The unique ‘hotkey’ navigation gives direct access to the programs in memory and enables quick and easy programming of a product. All common bend parameters are located on one page. For advanced parameters an additional page can be selected.
Angle programming of the Y-axis, crowning function and pressure control are standard on board.
USB interfacing enables the use of memory sticks as a fast product and tool backup medium.

DA-52S features

Watch Video on Youtube

/watch?v=jZZA97h70fQ

2. Features

Totally EU streamlined design,Monoblock by welding robots & aparatus and stress relief process by Annealing treatment.
Hydraulic synchronised positive stop design,and by DELEM programmable controller assuring accurate repeatability &ease of use.
Integrated hydraulic system(Bosch-Rexroth form Germany)allowing rapid approach switching automatically to slow bend.

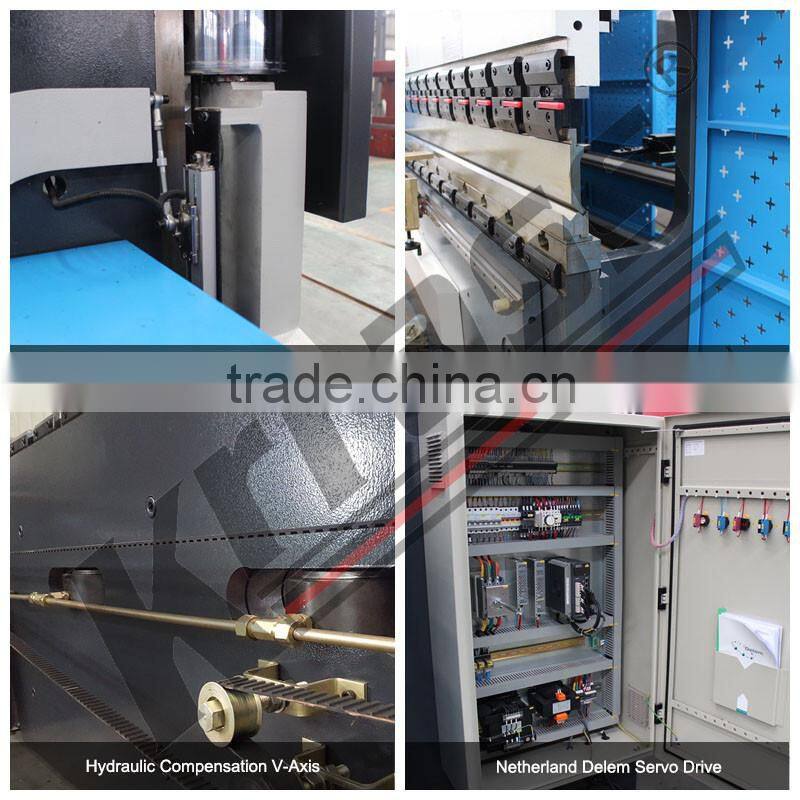

Servo drive with da52s System operated back gauge with quality support fingers also with vertical adjustment
Inch, single mode being designed for the machine and servo and maintain time can be controlled by the server Driver.
the distance of upper slide moving down is adjusted by grating ruler with high precision
Safe fence and the electric inter locker have been designed for the machine to ensure the operation safety.
