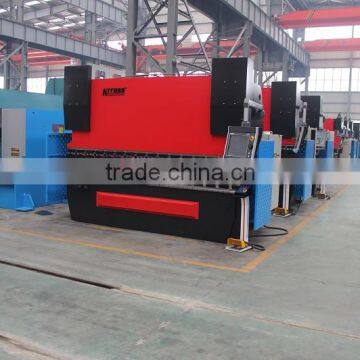

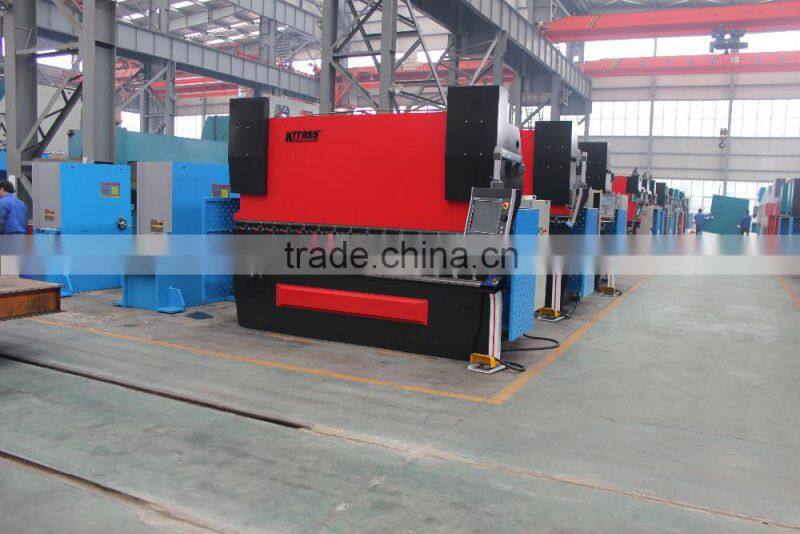

WC67K 2200mm Hydraulic Plate Bending Machine

1. Standard Equipment:

• Delem DA66T CNC control System
• Powered Depth Y1-axis&Y2-axis,X-axis&Z1-axis&Z2-axis&R-axis&V-axis&Back gauge X-axis (X-axis 0.01mm/Y1/Y2X/Z1,Z2-axis 0.01mm)
• Servo motor control block
• HIWIN Ball screws & Polished rod with 0,01mm accuracy.
• Plate Support Arms
• Germany Bosch-Rexroth Hydraulic
• Germany EMB Tubing connector
• Germany Siemens Main Motor

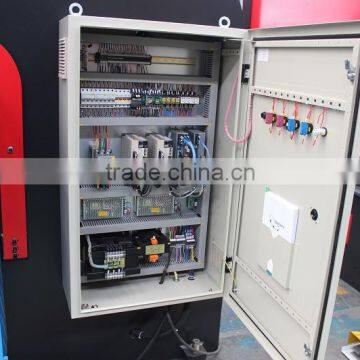

• Tele mecanique/Schneider Electrics
• Hydraulic &Electrical overload protection

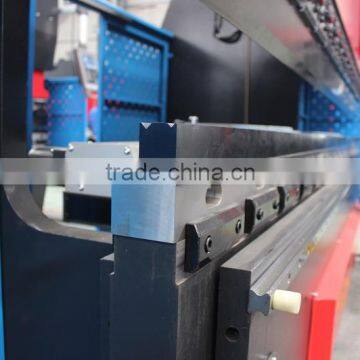

• Top and Bottom Tooling(86°,R0.6mm)
• Safety Standards(2006/42/EC):

2. Safety Equipment:

1.EN 12622:2009 + A1:2013          2.EN ISO 12100:2010      3.EN 60204-1:2006+A1:2009

• Front finger Protection(Safety light curtain)
• South Korea Kacon Foot Switch(Level 4 of safety)

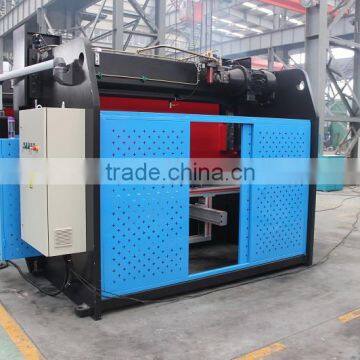

• Back metal safe fence with CE standards
• Safety relay with Monitor the pedal switch and safety protection

3. Delem DA66T   CNC Control system:

• The new generation DA-Touch controls offers an even higher grade of efficiency in programming, operation and control of today’s press brakes. Ease of use combined with state-of-the-art technology go hand in hand, improving productivity.

• The touch screengives access to the proven Delem user-interface and enables direct navigationbetween programming and production. Functions are directly located where you need them, offering optimised ergonomics throughout the application.

• The DA-66T offers 2D programming that includes automatic bend sequence calculation and collision detection. Full 3D machine set-up with multiple tool stations giving true feedback on the product feasibility and handling.

• Highly effective control algorithms optimise the machine cycle and minimise set-up time. This makes using press brakes easier, more efficient and more versatile then ever.


DA-66T features

• 3D visualisation in simulation and
• production
• 17" high resolution colour TFT
• Full Windows application suite
• Delem Modusys compatibility (module scalability and adaptivity)
• USB, peripheral interfacing
• User specific application support within the controllers multitasking environment
• Sensor Bending & Correction interface

Watch Video on Youtube

/watch?v=laphfB-VeOI&list=PLhHaChREghbLDg9u0Et-n9Lm5Yu8zErkg&index=18

• Totally EU streamlined design,Monoblock by welding robots & aparatus and stress relief process by Annealing treatment.
• Hydraulic synchronised positive stop design,and by DELEM programmable controller assuring accurate repeatability &ease of use.
• Integrated hydraulic system(Bosch-Rexroth form Germany)allowing rapid approach switching automatically to slow bend.

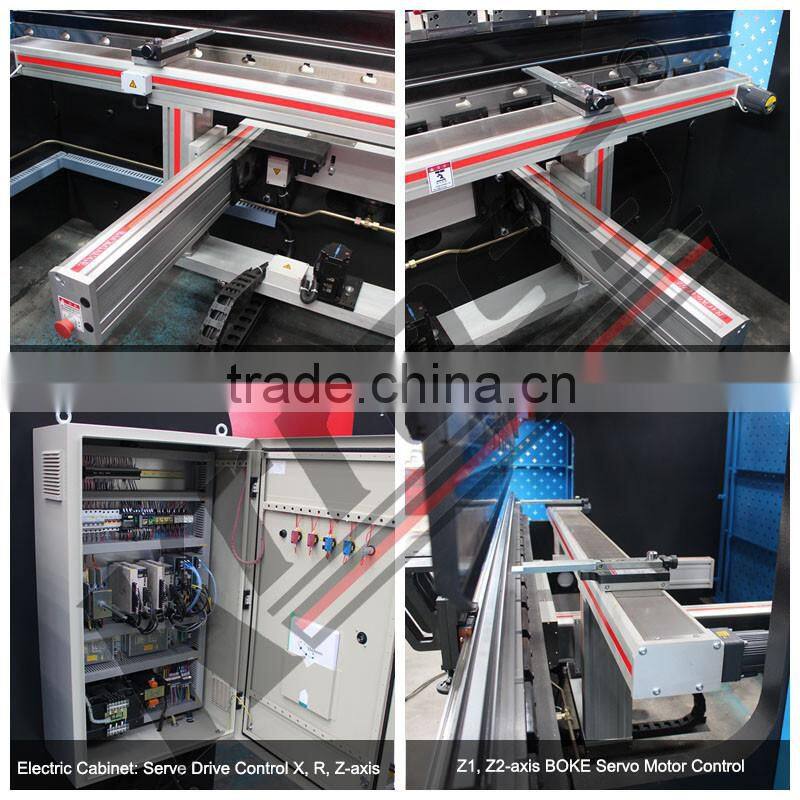

• Servo drive with A66T System operated back gauge with quality support fingers also with vertical adjustment
• Inch, single mode being designed for the machine and servo and maintain time can be controlled by the server Driver.

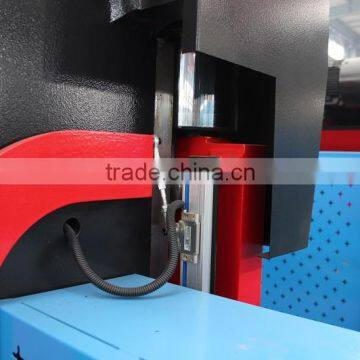

• the distance of upper slide moving down is adjusted by grating ruler with high precision
• Safe fence and the electric inter locker have been designed for the machine to ensure the operation safety.

 Watch The Details on Youtube

/watch?v=laphfB-VeOI&list=PLhHaChREghbLDg9u0Et-n9Lm5Yu8zErkg&index=18
