balcony Separate Pressurized Solar Water Heater,High-performance

Features:
1)The product uses super heat conduction pipe and has a good effect of heat exchange
2) Collector separates with the storage tank. The tank can be put anywhere of the
house.
3) The pipe is made of purple copper and conducted by heat transfer medium liquid;..
water can't flow in the vacuum tubes and is operated when controlled.
4) Intelligent control and automatic operation
5) The insulation layer uses the up-to-date technology and has a good effect of temperature preservation.

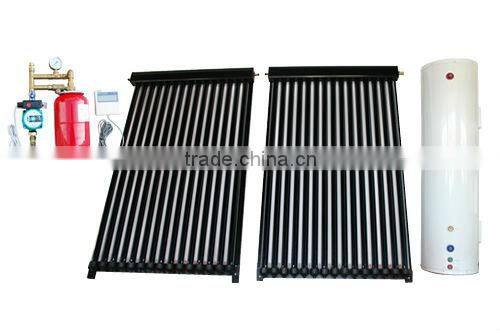

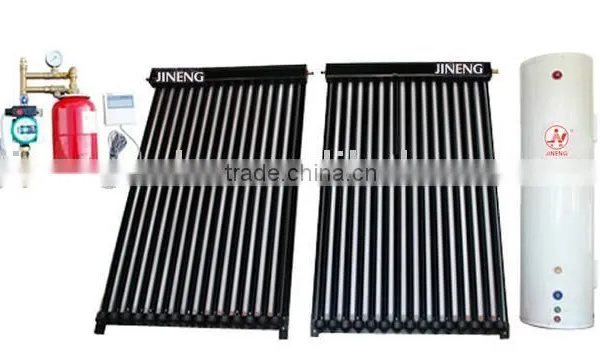

6) The equipments of separated solar water heater is composed by heat collector,
storage tank, controller, working station and installation parts
7) Multifunction: water for bathing, washing, cooking and so on

8)Copper coils inside the inner tank ensured the high heat efficiency and cleaner water

Specifications:

1) Collector channel: Cu pipe.

2) Collector crust: aluminum alloy..

3) Tube with 58mm dim, 1.8m length or 47mm dim, and 1.5m length

4) Water capacity: 150L / 200L / 300L ect.

5) Structure: porcelain enamel inner tank

6) Pressure: 0.6MPa.

7) Heat preservation: 72h - 80h.

8) Hail resistance: 25mm.

--------------------------------Why Jineng------------------------------------

Primary competitive advantages:
1) CE, CCC, ISO9001: 2000,
2) good price and quality
3) Prompt delivery
4) Environmental Protection
5) OEM order is accepted
6) experience of export to 49 countries

7) International quality warranty: 3 years for whole system and 15 years for vacuum tube.

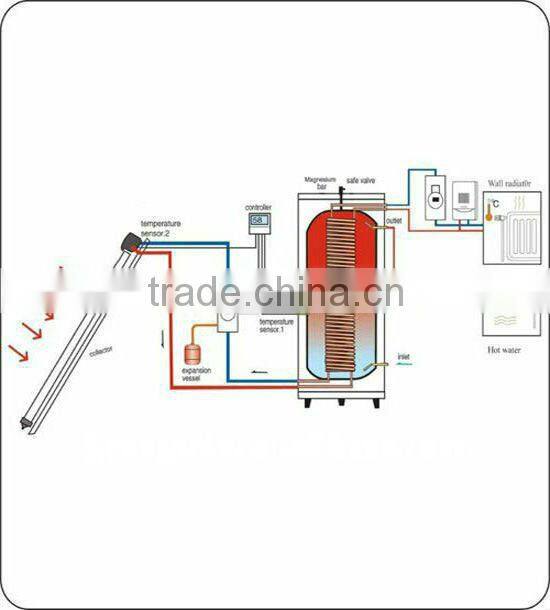

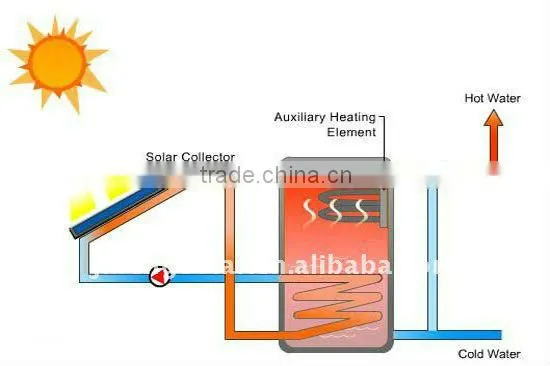

Working Principle
