Specifications
JNSP- Separated pressurized balcony solar water heater1.Specially designed for luxury housed and villas;
2. easy installation
JNSP- Separated pressurized balcony solar water heater
Water tank separated from solar collector integrated with building barmoniously;
Red copper pipeline conducted by heat ransfer liquid medium pipeline;
Forced circulation by heat pumps with high thermal efficiency;
Automatic temperature control exchange and anode magnesium bars sticking to prevent furring;
Heat pipe vacuum tube as solar collecor avoiding damaged tubes infleunce whole system;
Working pressure;0.6Mpa;
Cpacity availble: 100L/150l/ 200l/250L/300l/ 400l/500l etc.
Specification:
Inner tank: 1.5mm 3042B Stainless steel
Outer tank: 0.5mmcolor painted galvanized steel
Insulation layer: 50mm
With one or two copper coils inside tank
Heat pipe solar collector: 58*1800mm -20 pcs or 58mm*1800mm-24 pcs
Split solar water heater working principle

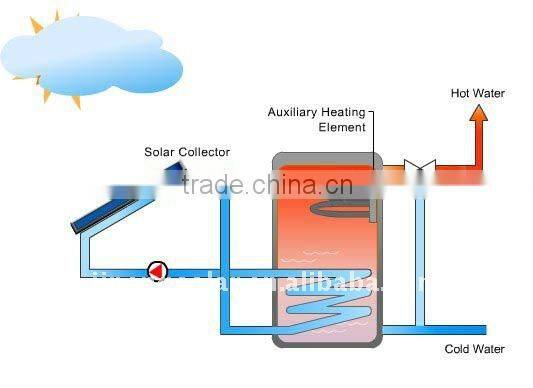

Working on claudy or rainy day

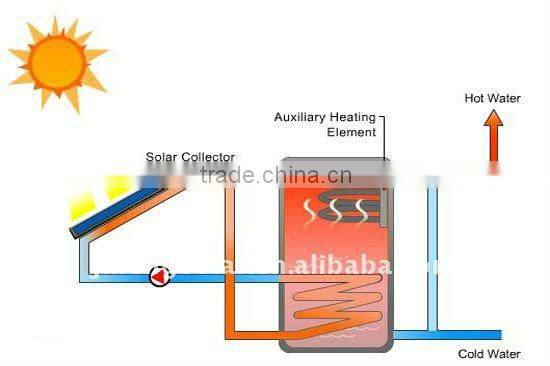

Working on sunny day
1. The collector absorbs solar energy and transmits it to the water tank through circulation
2. When the temperature of the collector reaches the set value, the controller starts the circulation pump automatically
3. The circulation pump makes heat-conducting liquid circulate automatically
4. The heat-conducting liquid transfers heat to water by lower heat exchanger in the water tank.
5. When the temperature difference between solar collector and tank doesn't reach the set value, the circulation pump will be shut automatically
6. In case the temperature of the water tank does not reach Tmax, Electric Heating Element will start to work automatically
Working station:
Tanks:
Solar collectors:
