separated pressurised solar water heater system
- 4000 Set / Sets per Month
- Shanghai or Ningbo
- T/T
Product Details
Type: | Evacuated Tube | Pressure: | Pressurized | Circulation Type: | Indirect / Closed Loop (Active) |
Heating System: | Other, Active system | Connection Type: | Split | Installation: | Freestanding |
Housing Material: | Other, colour steel | Certification: | CE, Other, CE, ISO CCC Solarkeymark | Capacity: | 200, 100-700L |
Place of Origin: | Zhejiang, China | Brand Name: | Jineng | Model Number: | JNSP |
Product Description
solar system

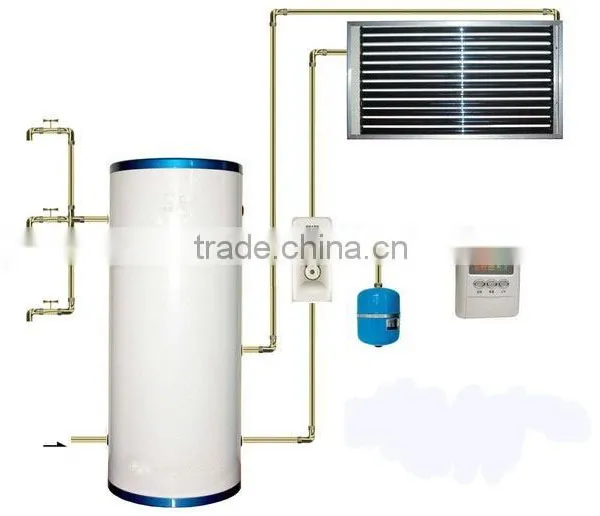

The separate pressurized solar water heater compose of solar collector, storage tank, controller, working station and installation parts.
Please note, we have got the CE and CCC certificates for all of our products
Specification:
1. Vacuum tubes: Common tubes or Three-high tubes , with heat pipe in it
2. Outer tank: Steel plate , thickness: 0.326mm
3. Inner tank: food grade stainless steel SUS304-2B, thickness: 1.2 to 1.5mm
4. Tank capacity: 100L to 500L
5. Pressure bearing: 0.6 bar
6. Insulation layer: Polyurethane foam , thickness: 50mm to 60mm
7. Support: Galvanized plate or stainless steel, thickness: 1.2mm to 1.5mm
8. Heat preservation: 72 to 80 hours
9. Hail resistance: 25mm
Feature:
1) Collector separates with the storage tank. The tank can be put anywhere
of the house
2) And the collector can be put on both tilted roof and flat roof
3) Module design, arbitrary combination, harmony with the building perfectly
4) Intelligent control and automatic operation
5) Anti-freeze: no water inside the tubes when it works
6) The system controller has the anti-freezing function is that the temperature
circulation will operate while it reaches the fixed temperature
7) Multifunction: Bathing, washing, domestic heating
8) Workable at anytime and enjoyable
Jineng Separated Pressurised Solar WaterHeater | |
Inner Tank: | 1.2-1.5mm food grade SUS3042B |
Inner Tank diameter: | 340/360/380mm |
Outer Tank: | 0.4mm stainless steel or painted steel |
Outer Tank diameter: | 470/480/500/520mm |
Collector channel | Cu pipe |
Frame: | 1.5mm alluminum alloy |
Vacuum Tube: | High Borosilicate 3.3 |
Tube Dimension | 58mm×1.8m / 47mm×1.5m |
Working Pressure: | 0.6Mpa |
Tube Qty.: | 12/15/18/20/24/30 tubes |
Heat Insulation Layer: | 50-60mm Polyurethane Foam |
Installation: | anywhere in the building |
Heat preservation: | 72 to 80 Hours |
Absorptance: | >94% |
Hail resistance: | 25mm |
Tank Capacity: | 100L-500L |
