Pre-heated Compact Pressure Solar Heater

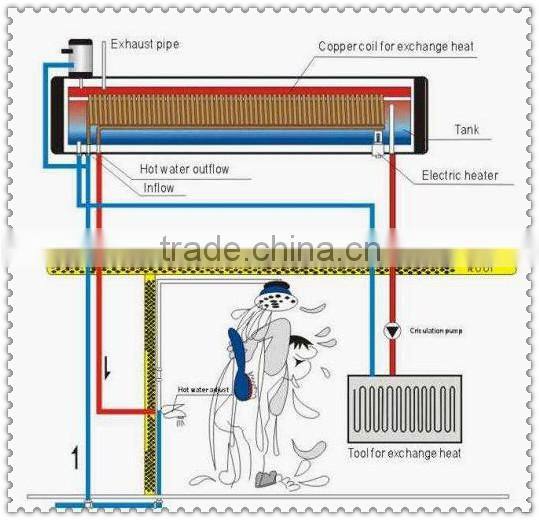

1. Working principle
Vacuum tube absorbs solar energy and transfer heat into main tank. And main tank is only for heat storage and copper coil is heat exchanger. When cold water goes through the long copper coil, it will absorb heat via copper and hot water will come out from outlet immediately. This will enable you to enjoy instant hot water.
2. Details Specification:
| Model | JNCP | Copper coils | 30 meters |
| Inner tank material | 0.4-0.8mm SUS3042B/316L | Inner tank welding | argon arc welding |
| Outer tank material | 0.4mm color steel | Pressure | 0.4MPa |
| Outer tank diameter | 460/470/480mm | Hail resistance | 25mm |
| Insulation layer | 50/55/60mm | Frame angle | 27/30/45 degrees |
| Needed accessories | assistant tank | Popular areas | Middle East, South America |
| Lowest temperature | -30 degrees | Optional accessories | Electric heater, controller |
| Collector | 58-1800/47-1500 tubes | OEM offered | YES |

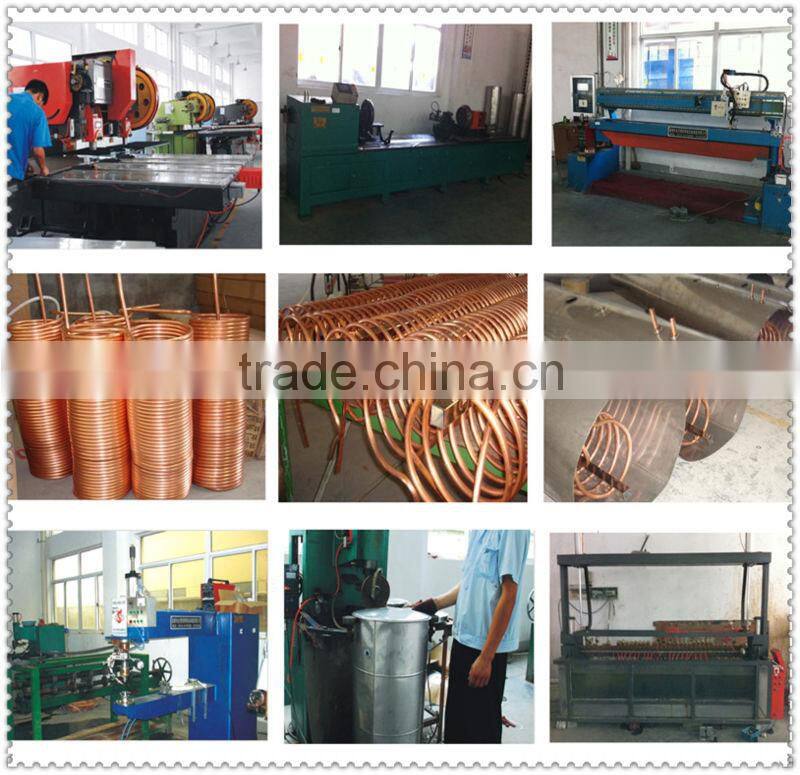

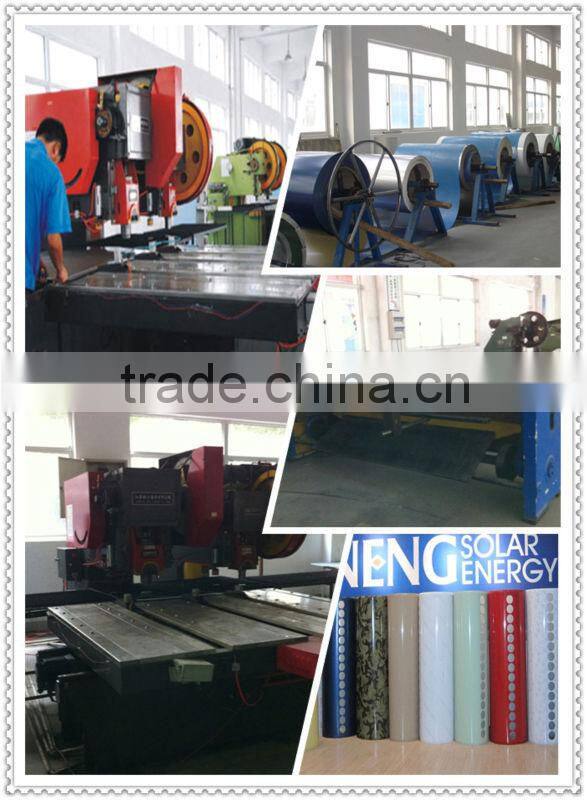

3. Making Process:

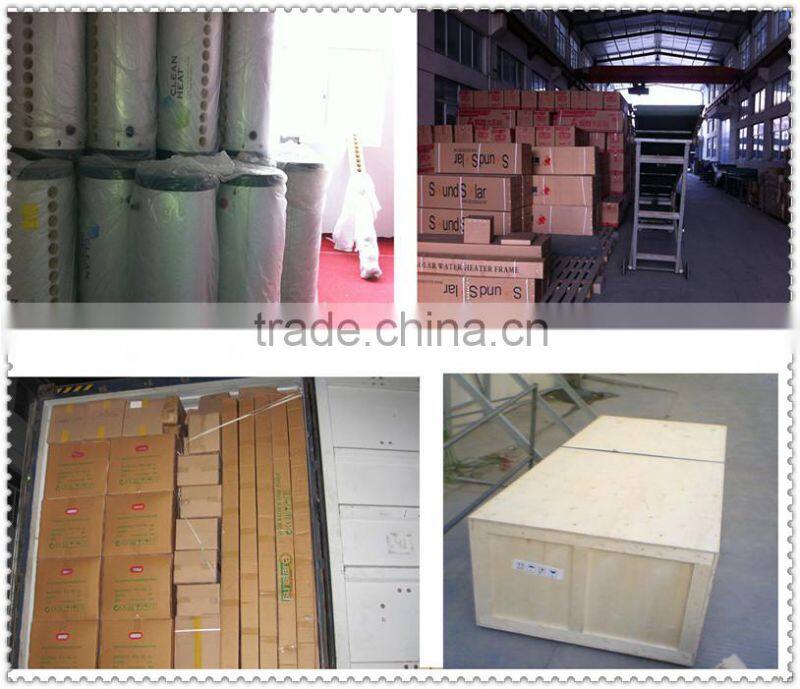

4. Packing data:
| Model | Aperture area (m2) |
Total | Measurement(m3) | Loading quantity | ||
| 20'GP | 40'GP | 40'HG | ||||
| JNCP-58-1800-20 | 2.92 | 200 | 0.74 | 38 | 79 | 94 |
| JNCP-58-1800-24 | 3.36 | 240 | 0.9 | 28 | 61 | 77 |
| JNCP-58-1800-30 | 4.14 | 300 | 1.01 | 29 | 57 | 68 |
| JNCP-58-1800-36 | 5 | 360 | 1.2 | 23 | 48 | 57 |
5. Attention:
1. Clearance of remains and sundries in water tank should be done ahead of installation in the purpose of avoiding walling up in or out vents, which may make tank split up or deflated.
2. Do not load water when it is suuny. Better to load water at night or early in the morning expecially for the new unit. As the temperature of vacuum tube can reach 270°C at the highest. When water flowing at this time, vacuum tubes will be broken.
3.When loading water at a high water level, do not turn on the inlet valve openly but let water flow slowly to the tank, or the inner tank will be broken due to the expansion of high pressure.
4.It is inappropriate to load water at a low water level, which will result in hot water in the tank reflowing to water pipe.
5.Before having a bath, it is necessary to avoid scalding with hand to testing the temperature of water.
If electrical heater is installed, it should be cut off when you shower.
6. Service:
1. We offer customers 5 years for whole solar systems;
2. Carton design for customs is free offered when goods sent by container
3. When you have any questions regarding our products, feel free to contact us. We will be very glad to service for you.
4. 1% extra vacuum tubes, slicone rings will be sent for free.
MAKE SOLAR ENERGY REMARKABLE!
