Automatically Loading Solar Heating Project

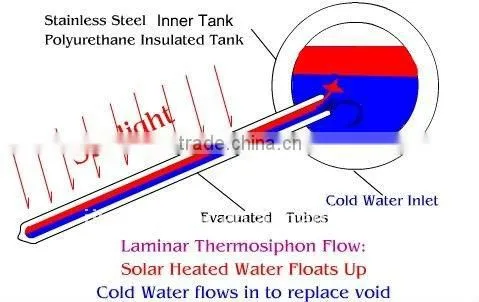

1. Working pricinple:

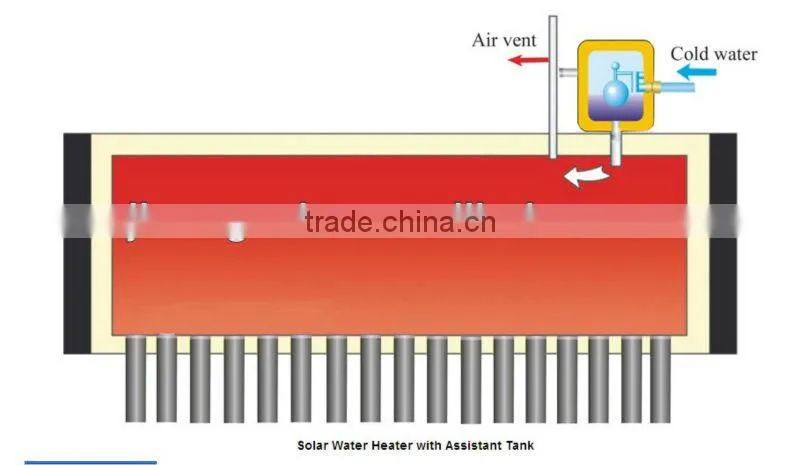

Low pressure solar water heater with assistant tank is scientifically designed and it is very popular in the international market. The cold water can flow through the assistant tank and fill into the main tank. When it main tank of our solar water heater is full, the floating ball in the assistant tank rises and the water channel is blocked, thus the water feeding process is stopped. If the hot water in the main tank is used, the water level will descend, and the floating ball drops down, thus the water channel is open again, and the cold water will flow into the heat automatically. In this way, the circulation is formed and the hot water will be supplied continuously.
2. Detail Specification:
| Model | JNNP | Test pressure | 50KPa |
| Inner tank material |
0.4-0.8mm SUS3042B /316L |
Frame | 1.5mm galvanized Steel |
| Outer tank material | 0.4mm color steel | Hail resistance | 25mm |
| Outer tank diameter | 460/470mm/480mm | Coating material | ALN-SUS-CU/AL-AL-AL |
| Insulation layer | 50mm/55mm/60mm | Heat preservation | 72 hours |
| Frame angle | 30 degrees | Applicable to | residential , hotels |
| Assistant tank | 5L | Optional accesories | Electric heater, magnesium bar, controller |
| Inner tank Welding | Argon arc welding | OEM offered | YES |

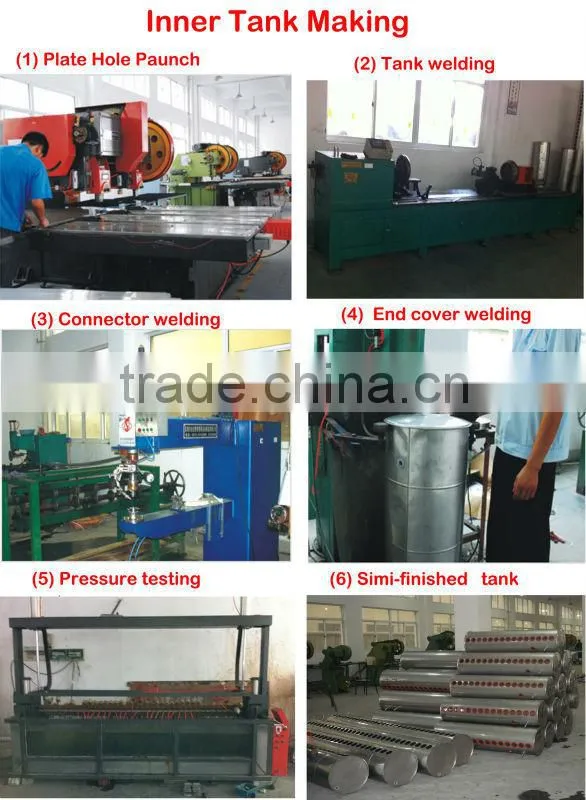

3. Making Process:

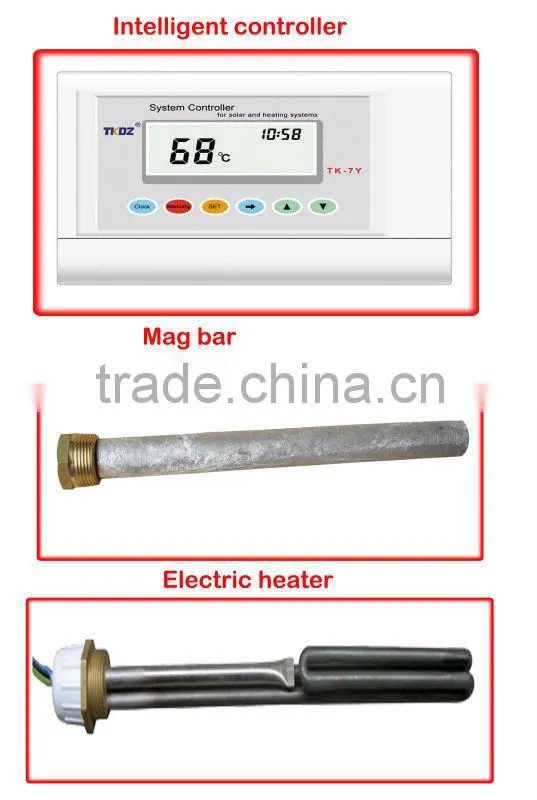

4. Optional accesories:

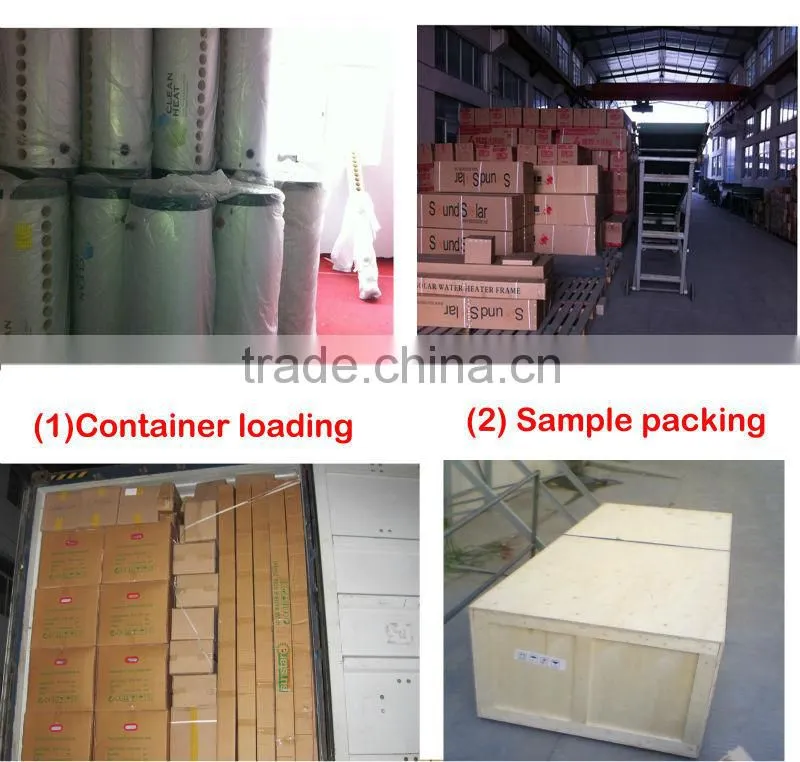

5. Packing Details:
| Model | Aperture area (m2) |
Total capacity | Measurement(m3) | Loading quantity | ||
| 20'GP | 40'GP | 40'HG | ||||
| 58-1800-18 | 2.51 | 180 | 0.68 | 41 | 83 | 100 |
| 58-1800-20 | 2.92 | 200 | 0.72 | 38 | 79 | 94 |
| 58-1800-24 | 3.36 | 240 | 0.88 | 28 | 61 | 77 |
| 58-1800-30 | 4.14 | 300 | 0.99 | 29 | 57 | 68 |
6. Installation Common troubles and shooting methods
Phenomena |
cause Analysis |
Methods |
|
Cold water on sunny day
|
1. There is something above water tank or dense smog or stained |
1. Remove the hinder or install another place |
|
Fail to fill water fully
|
1. Low pressure of running water |
1. Install a small water pump |
Leakage from the tank |
1. Broken of seal or water tank installed incorrectly |
1. Exchange a new seal or adjust the water tank |
Unstable water temperature |
Unstable pressure of running water |
Adding an assistant tank that can store water, stable the pressure and mix cold water or using a thermostatic valve |
Failed to get hot water in winter |
1. Frozen of inlet or outlet pipe |
1. Asking for help from supplier |
7. Service:
1. We offer customers 5 years for whole solar systems;
2. Carton design for customs is free offered when goods sent by container
3. When you have any questions regarding our products, feel free to contact us. We will be very glad to service for you.
It's hoped that our solar system can save you more money as well as protect our environment.
SOLAR MAKES LIFE BETTER !
