1. Working Principle:

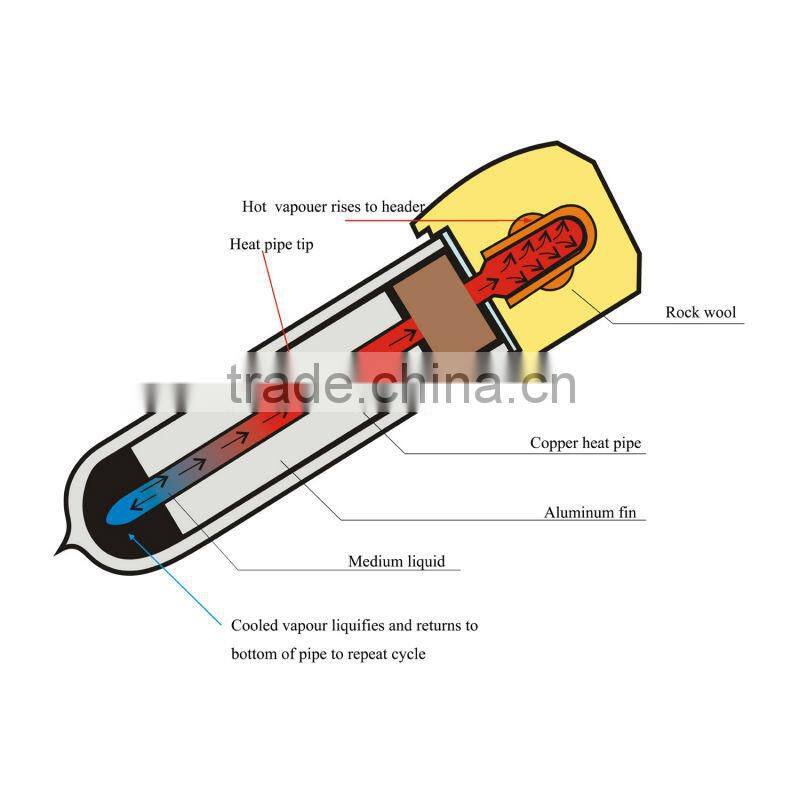

Heat pipe series solar collector is always connected with existing heating supply device. The selective coating inside tubes converts solar energy into heat energy and transfers heat to heat pipe via aluminum feed. The liquid (anti-freezing liquid) in the heat pipe changes into vapor which rises to the condensers. This transference of heat in the liquid creates a continuous circulation as long as the collector is heated by the sun.
2. Specification:
(1) Germany TUV approved with SOLAR KEYMARK
(2) Can be amounted on roof/wall mounting in vertical position
(3) Manifold (interior): Red copper
(4) Outside Headbox:2.0 aluminum alloy
(5) Flat Frame: 2.0mm aluminum alloy
(6) Vacuum tube: 14mm condensor heat pipe
(7) Insulation: 25mm/50mm rock wool
3. Technical data:
| Model | JNSC-15 | JNSC-18 | JNSC-20 | JNSC-24 |
| Construction | Heat pipe evacuated tube solar collector | |||
| Tube diameter(OD) | Outer tube: 58mm; Inner tube: 47mm | |||
| No. of collector pipes | 15 | 18 | 20 | 24 |
| Gross area(m2) | 2.52 | 2.95 | 3.24 | 3.85 |
| Aperture area | 1.414 | 1.69 | 1.84 | 2.259 |
| Absorber surface(m2) | 1.303 | 1.56 | 1.73 | 2.08 |
| L×W×H(mm) | 1963×1286×135 | 1963×1493×135 | 1963×1643×135 | 1963×1943×135 |
| Weight(Kg) | 48 | 57.6 | 64 | 76.8 |
| Fluid content(L) | 1.1 | 1.3 | 1.44 | 1.6 |
| Angle of inclination | 45o | |||
| Max. temperature °C | 260oC | |||
| Heat exchanger material | TU1 | |||
| Max. operating pressure | 12 Bar | |||
| Test pressure | 6 Bar | |||
| Manifold connection diameter | 3/4'' | |||
6. Features:
1) Reliable and efficient twin-glass solar tubes;
2) Copper heat pipes for rapid heat transfer;
3) Dual-function installation; free-standing or sloping
4) Lowest test temperature: -35 degree
5) Corrosion resistant silver brazed copper header;
6) The perfect solar collector for domestic solar water heater systems
7. Service:
1. We offer customers 5 years for whole solar systems;
2. Carton design for customs is free offered when goods sent by container
3. When you have any questions regarding our products, feel free to contact us. We will be very glad to service for you.
4. 1% extra vacuum tubes, slicone rings will be sent for free.
