Home > Manufacturing & Processing Machinery > Building Material Making Machinery > Pipe Making Machine > Duct Forming Machine
US$ 9,000 - 16,890
MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Type:
Pipe Production Line
Pipe Material:
Carbon Steel
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.
Related Products
Condition
New
Type
Pipe Production Line
Pipe Material
Carbon Steel
Application
Energy Supply Pipe
Production Capacity
100
Place of Origin
Jiangsu, China
Brand Name
KRRASS
Model Number
tdf duct flange forming machines
Voltage
380/220
Power(W)
9200
Dimension(L*W*H)
6*2.2*1.6m
Weight
5 Ton
Certification
ISO and CE
Warranty
2 years warranty
After-sales Service Provided
Overseas third-party support available
| 1. Product Description |

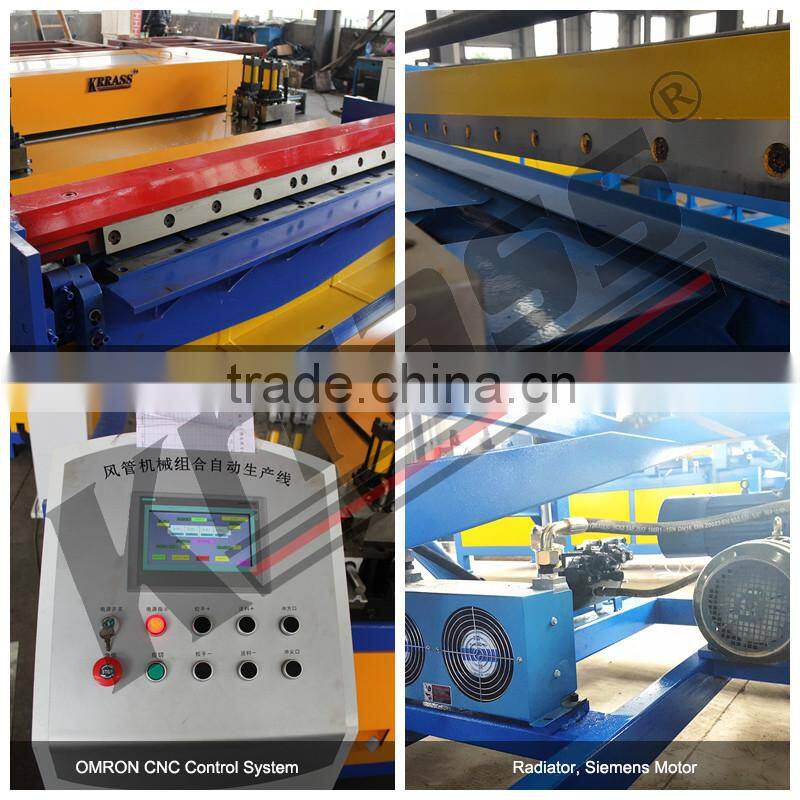

1.Basic equipment:
- Electric feeding rack1(2620*1850*1450*)
- Leveling rib pressing device group

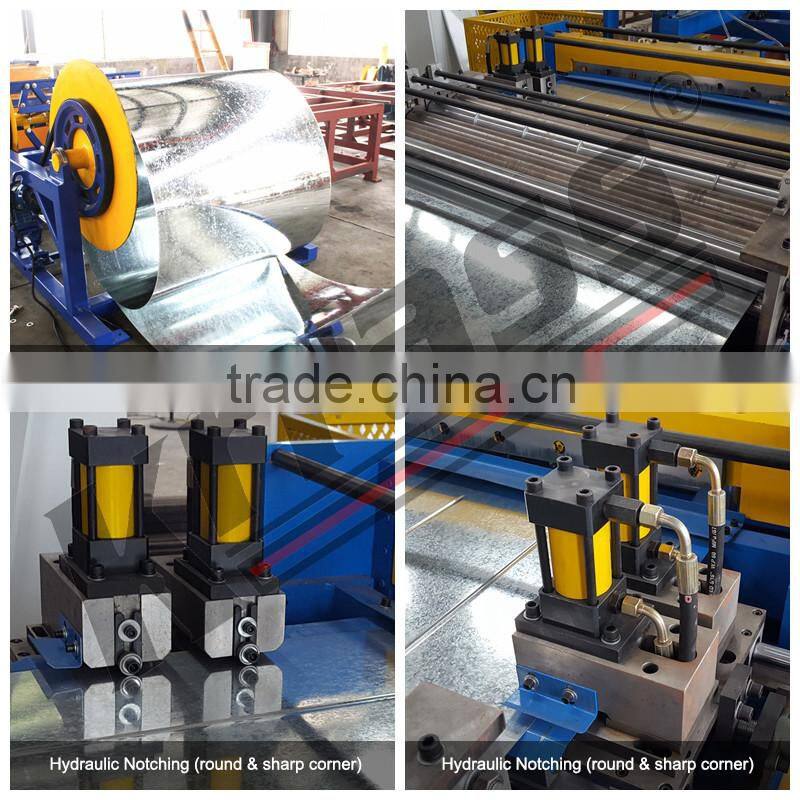

- Hydraulic Angle shearing machine,four sets of even die
- Hydraulic Plate shearing machine,Hydraulic bending device
- Computer and controller,a set of software production

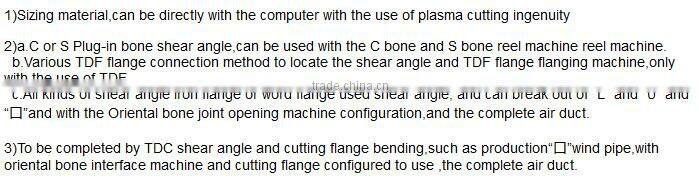

2.Instructions for use:
3.Main Technical data
Model | Thickness range(MM) | Width(MM) | Max-Working speed(M/min) | Coiler weight | Weight(KG) | Dimension(mm) |
KRS-III | 0.5-1.2 | 1300 | 16 | 6000x2 | 3500 | 5000X2160X1450 |
KRS-III | 0.5-1.2 | 1600 | 16 | 6000x2 | 4500 | 5000X2460X1450 |
Watch Video on Youtube
/playlist?list=PLhHaChREghbI_dVo37sh5oOPqpSZdn_6M
| 2. Features |

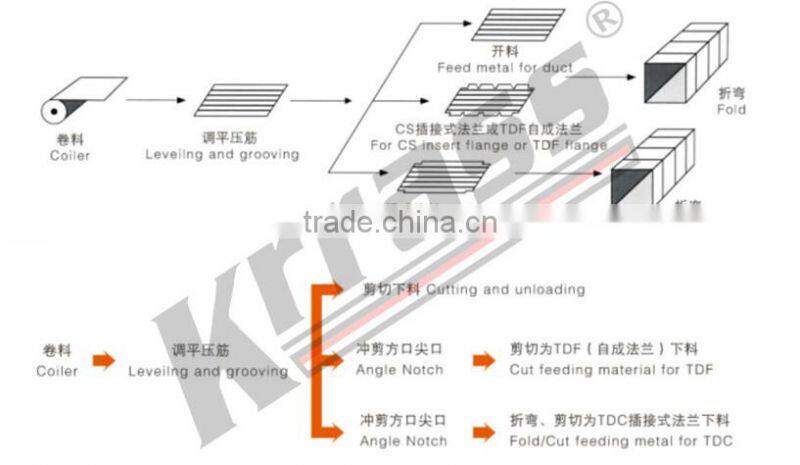

- Duct III production line is composed of rack,leveling embossing machine,blunt pointed mouth and blunt square opening hydraulic press, hydraulic shearing machine,hydraulic folding machine,Electric control part adopts computer control,the control system with a closed loop feedback system,production of production of precision and stability is improved obviously.
- The maximum working speed is 16m/min Error of plus or minus 0.5mm in length,diagonal error of plus or minus 0.8mm.with a high degree of automation,provincial labor,high efficiency and save materials advantages,very suitable for duct processing factory specialized produciton batch duct.

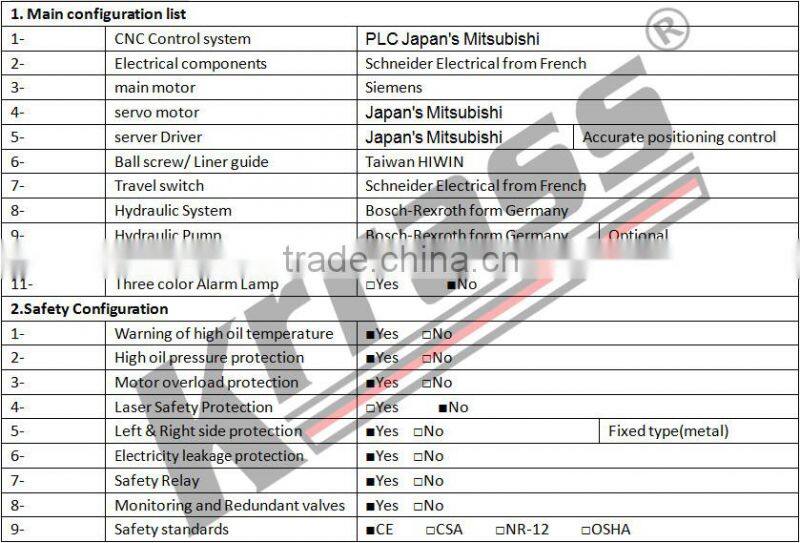

| 3. Configuration |
Watch The Details on Youtube
/playlist?list=PLhHaChREghbI_dVo37sh5oOPqpSZdn_6M
Check Our Packing Video on Youtube
https://youtu.be/8cmx2DUqKV4
