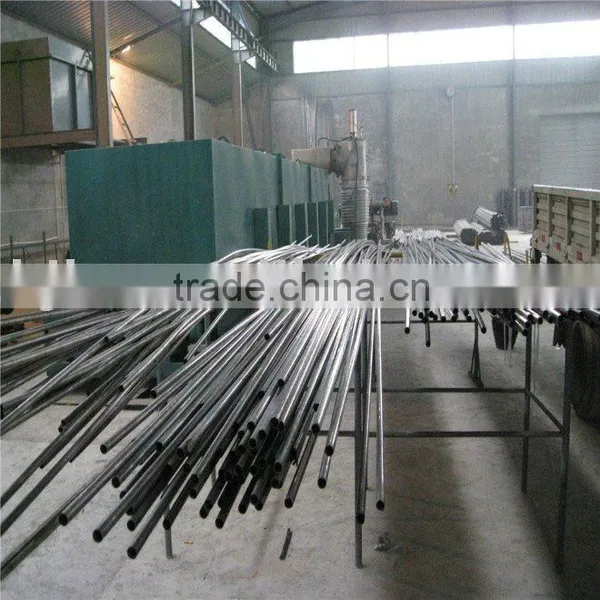

Help CenterGr1 Cold Rolled-seamless Titanium Pipe
Related Products
Specifications
1.Grade:Gr1,Gr2,Gr5, Gr7,Gr11,Gr122.Size:WT:0.5-4.5 OD:10-80 L:500-9000mm
3.Standard: ASTM B337 ASTM B338 ASTM B861 B862
1:Product name:Gr1 cold rolled-seamlessTitanium pipe
2:Grade:Gr1Gr2Gr3 GrGr7
3:Size:WT:0.5-4.5 OD:10-80 L:500-9000mm
4:Standard: ASTM B337 ASTM B338 ASTM B861 B862
5:Feature:
1)high strength.
2)fine corrosion resistance.
3)low density, light weight.
4)high/low temperature resistance.
5)high resistance to strong acid.alkali
6:Application: environmental protection equipment cooling pipe titanium heat pipe Electroplating equipment ring precision instruments
7:Quality And test: Strict test is indispensible,because we must insure our clients get the best.
Table 1 cold rolled seamless titanium tube
Grade |
Supply status |
OD/mm |
WT/mm |
|
Gr1 Gr2 Gr3 Gr7 Gr12 |
M |
>10-15 |
0.5 0.6 0.8 1.0 1.25 1.5 2.0 |
>15-20 |
0.6 0.8 1.0 1.25 1.5 2.0 2.5 |
||
>20-30 |
0.6 0.8 1.0 1.25 1.5 2.0 2.5 |
||
>30-40 |
1.25 1.5 2.0 2.5 3.0 |
||
>40-50 |
1.25 1.5 2.0 2.5 3.0 3.5 |
||
>50-60 |
1.5 2.0 2.5 3.0 3.5 4.0 |
||
>60-80 |
2.0 2.5 3.0 3.5 4.0 4.5 |
Table 2 weld titanium tube
Grade |
Supply status |
OD/mm |
WT/mm |
|
Gr1 Gr2 Gr3 Gr7 Gr12 |
M |
16 |
0.5 0.6 0.8 1.0 |
19 |
0.5 0.6 0.8 1.0 1.25 |
||
25.27 |
0.5 0.6 0.8 1.0 1.25 1.5 |
||
31.32.33 |
0.8 1.0 1.25 1.5 2.0 |
||
38 |
1.5 2.0 2.5 |
||
50 |
2.0 2.5 |
||
63 |
2.0 2.5 |
Table 3 weld-rolled titanium tube
Grade |
Supply status |
OD/mm |
WT/mm |
|
Gr1 Gr2 Gr3 Gr7 Gr12 |
M |
6-10 |
0.5 0.6 0.8 1.0 1.25 |
>10-15 |
0.5 0.6 0.8 1.0 1.25 1.5 |
||
>15-30 |
0.5 0.6 0.8 1.0 1.25 1.5 2.0 |
Table 4 seamless titanium tube and weld-rolled titanium tube
|
category |
Seamless titanium tube |
Weld-rolled |
|||
|
OD<15 |
OD>15 |
OD |
|||
WT<2.0 |
WT>2.0-4.5 |
0.5-0.8 |
>0.8-2.0 |
||
Length(mm) |
500-4000 |
500-9000 |
500-6000 |
500-800 |
500-5000 |
Table 5 weld titanium tube
|
category |
Weld titanium tube |
||
WT 0.5-1.25 |
WT > 1.25-2.0 |
WT >2.0-2.5 |
|
Length(mm) |
500-15000 |
500-6000 |
500-4000 |
