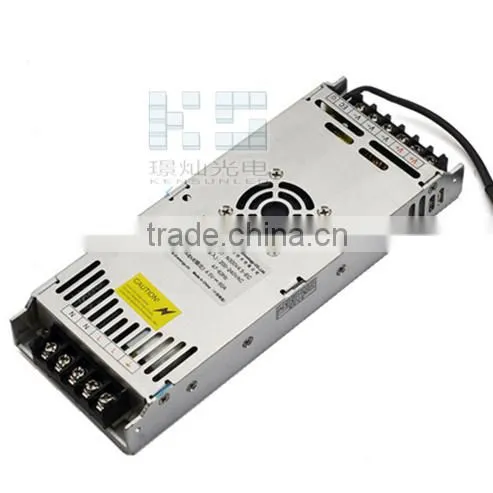

200W 5V Constant Voltage 5V40A Slim Power Supply For LED light With CE
Welcome,my friend! Glad to introduce 200W 5V Constant Voltage 5V40A Slim Power Supply For LED light With CE . If you have any questions, please don't hesitate to ask me.
Features :
• AC input range selectable by switch
• Protections:Short circuit/Over load/Over voltage
• Cooling by free air convection
• 100% full load burn-in test
• Fixed switching frequency at 25KHz
• 2 years warranty
| Output | DC Voltage | 5V | 7.5V | 9V | 12V | 13.5V | 15V | 24V | 27V | 48V |
| Rated Current | 40A | 26.5A | 22A | 16.5A | 14.7A | 13A | 8.3A | 7.4A | 4.2A | |
| Current Range | 0 ~ 40A | 0 ~ 26.5A | 0 ~ 22A | 0 ~ 16.5A | 0 ~ 14.7A | 0 ~ 13A | 0 ~ 8.3A | 0 ~ 7.4A | 0 ~ 4.2A | |
| Rated Power | 200W | 200W | 200W | 200W | 200W | 200W | 200W | 200W | 200W | |
| Ripple & Noise (max.) Note.2 | 150mVp-p | 150mVp-p | 180mVp-p | 180mVp-p | 180mVp-p | 180mVp-p | 240mVp-p | 240mVp-p | 240mVp-p | |
| Voltage Adj. Range | 4.5 ~ 5.5V | 6~8.3V | 8 ~ 10.4V | 10.6~13.2V | 12 ~ 15V | 13.5~16.5V | 21~28V | 24 ~ 30V | 43 ~ 53V | |
| Voltage Tolerance Note.3 | ±2.0% | ±1.0% | ±1.0% | ±1.0% | ±1.0% | ±1.0% | ±1.0% | ±1.0% | ±1.0% | |
| Line Regulation | ±0.5% | ±0.5% | ±0.3% | ±0.3% | ±0.3% | ±0.3% | ±0.2% | ±0.2% | ±0.2% | |
| Load Regulation | ±0.5% | ±0.5% | ±0.3% | ±0.3% | ±0.3% | ±0.3% | ±0.2% | ±0.2% | ±0.2% | |
| Setup,Rise, Hold time | 100ms, 50ms at full load | |||||||||
| Input | Voltage Range | 88 ~ 132VAC/176 ~ 264VAC selected by switch 248 ~ 370VDC | ||||||||
| Frequency Range | 47~63HZ | |||||||||
| Efficiency(Typ.) | 78% | 80% | 80% | 82% | 83% | 84% | 85% | 86% | 87% | |
| AC Current | 3.2A/115VAC 1.6A/230VAC | |||||||||
| Inrush Current (max.) | COLD START 35A | |||||||||
| Leakage Current | <3.5mA / 240VAC | |||||||||
| Protection | Over Load | 105 ~ 150% rated output power | ||||||||
| Protection type : Shut down o/p voltage, re-power on to recover | ||||||||||
| Over Voltage | 5.75 ~ 6.75V | 8.63 ~ 10.13V | 10.35 ~ 12.2V | 13.8V~16.2V | 15.53 ~ 18.2V | 1725V~20.3V | 30V~34.8V | 31.1 ~ 36.45V | 55.2 ~ 64.8V | |
| Protection type : Shut down o/p voltage, re-power on to recover | ||||||||||
| Environment | Working Temperature | -10 ~ +60°c (Refer to output load derating curve) | ||||||||
| Working Humidity | 20~90% RH Non-condensing | |||||||||
| Storage temp.& humidity | -20~+85°C, 10~95%RH | |||||||||
| Temp. coefficient | ±0.03%/°C (0~50°C) | |||||||||
| Vibration | 10 ~ 500Hz, 2G 10min./1 cycle,60min.each along X,Y,Z axes | |||||||||
|
Safety & EMC (Note 4.) |
Safety Standards | UL1012, UL60950-1, TUV EN60950-1, CCC GB4943 approved | ||||||||
| Withstand Voltage | I/P-O/P:3KVAC I/P-FG:1.5KVAC O/P-FG:0.5KVAC | |||||||||
| Isolation Resistance | I/P-O/P, I/P-FG, O/P-FG:100M Ohms/500VDC | |||||||||
| EMI Conduction & Radiation | Compliance to EN55022 (CISPR22) Class B | |||||||||
| EMS IMMUNITY | Compliance to EN61000-4-2,3,4,5,6,8,11; ENV50204, EN55024, Light industry level, criteria A | |||||||||
| Others | MTBF | 286.7K hrs min. MIL-HDBK-217F (25°c ) | ||||||||
| Dimension | 199*110*50mm (L*W*H) | |||||||||
| Packing | 0.8Kg; 16pcs/13.8Kg/0.95CUFT | |||||||||
| Note | 1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25 of ambient temperature. |
|||||||||
• Power tools series: Electric Saw, Drilling Machine, Ginder, Sand blast Machine, Puching Machine,Weeding Machine,Air Compressor etc.
• Office series: Computer,Printer,LCD Monitor,Scanning Machine etc.
• Household Appliance series: Dust Collector,Fan Lamp or LED ,Sewing Machine etc.
• Kitchen Appliance series: Microwave Oven, Fridge, Freezr, Coffemarker etc.
• Industrial Equipemnt series: shipping,vehicle,metalhalide lamp,solar system,wind power generation ect.
• Electrical filed series: TV,VCRS,Radio ect.
