TJ40HD-2515 Water Jet Cutting Machine for Cutting Marble/ Granite/ Metal
For cutting different sharps of stone, granite or marble, then make them together into the beautiful pattens. Mainly used for hotel floor or wall.
| Model | TJ40HD-2515 | |
| Max. Working Pressure | MPa | 380 |
| Working Pressure | MPa | 0~350 |
| Max. Flow Rate | L/min | 3 |
| Diameter Of Orifice | mm | 0.28~0.30 |
| Nozzle Size | mm | 0.8~1.0 |
| Main Motor Power | kW | 30 |
| Biggest Cutting Range | mm | 1500*2500 |
| Cutting Accuracy | mm | ±0.1 |
| Repeat Positioning Accuracy | mm | ±0.01 |
| Control Accuracy | mm | ±0.01 |
| Rapid Positioning Speed | mm/min | 8000 |
| Travel Knife Rest | mm | 150 |
| Worktable Type | Cantilever | |
| Working Motor Type | YASKAWA Servo Motor | |
| Abrasive | Garnet | |

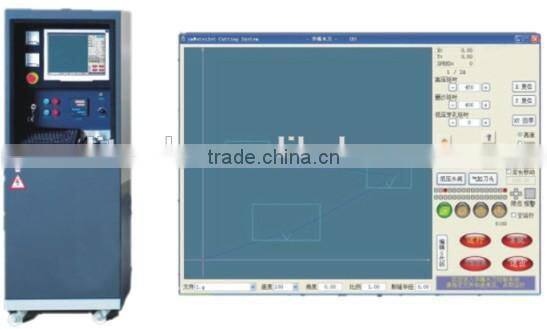

| Control System | 3-axis-linkage System(5-axis-linkage Optional) | |
| Way of Direction-changing | Electronic Direction-changing |
We can ensure to offer you the good quality products in competitive and reasonable price, also the full service all the time.

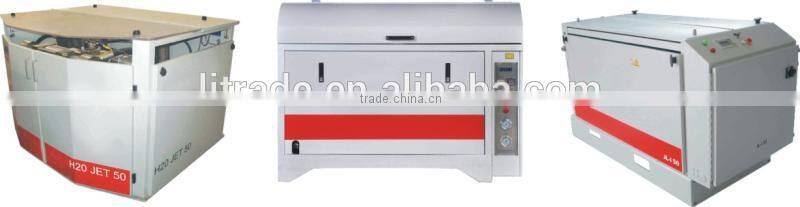

Photos of the machine parts:

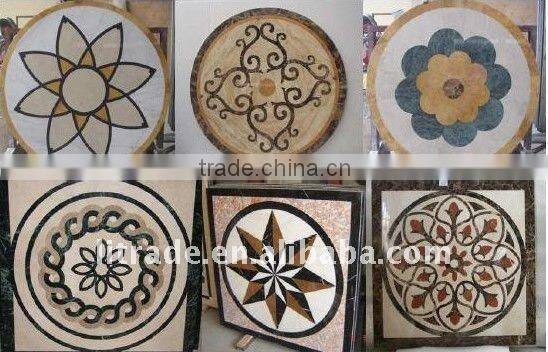

Final products:

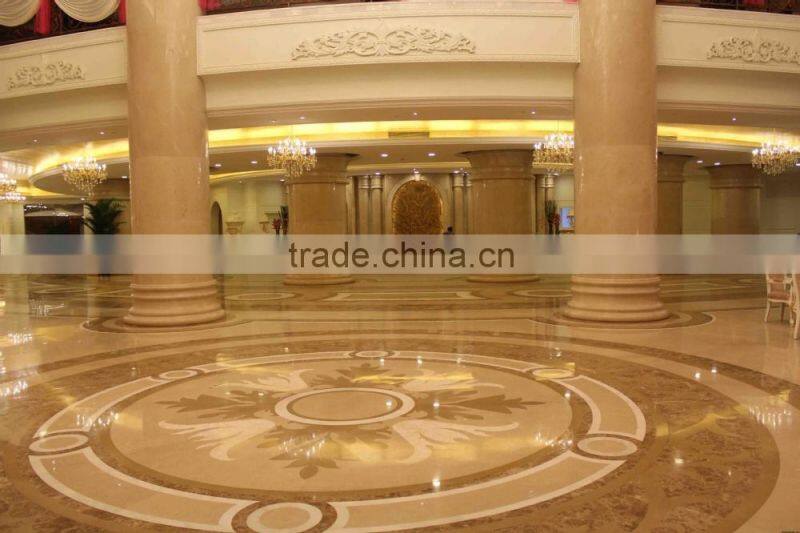

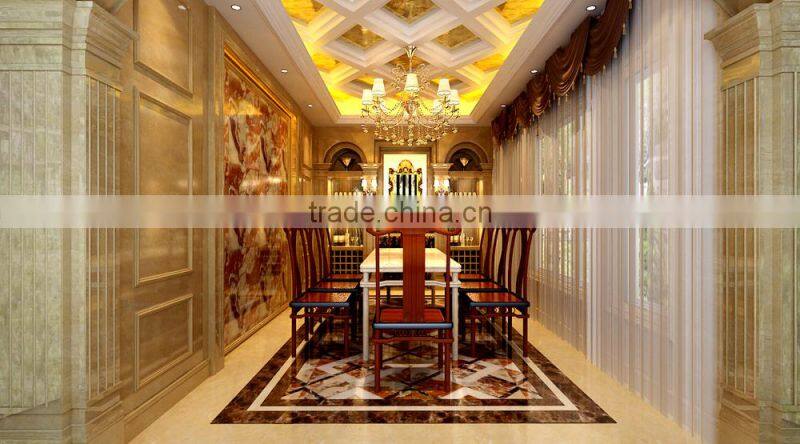

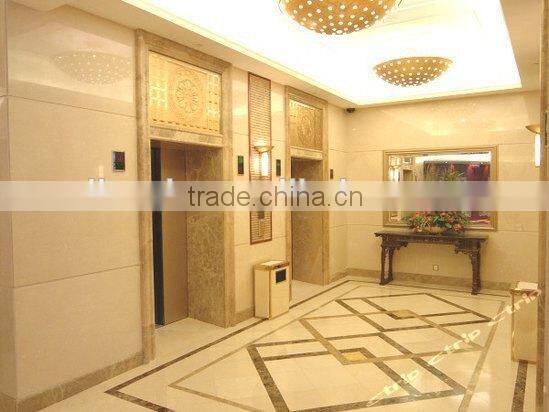

Put on the hotel floor in special designer.
QUALITY CONTROL:
We can ensure to offer you the good quality products in very reasonable and competitive price, also the full service all the time.
STONE FAIR:
We have attended the stone fair in different countries, such as Russia, Egypt, Brazil, Vietnam, Turkey, India, etc. And you can always find our booth in Xiamen Stone Fair. Welcome to come and visit our company anytime.
OUR CUSTOMERS COVER:
Thanks to the recognition and support of our customers, we have exported products to more than 65 different countries till now, and the number is increasing year by year.
OUR COMPANY:
We are located in the beautiful city, Xiamen, China. Established in March, 2006.
Contact US:
Please feel free to contact us if you get any question or new inquiry,
Also welcome to come and visit our company anytime for further business discussion!
