TJJ TYPE High Pressure Water Jet Cutting Machine
US$ 25,000 - 50,000
MOQ: 1 Set
Key Specifications
Get Latest Price
Type:
Stone Cutting Machine
Use:
Other
Place of Origin:
Guangdong, China
Payment & Shipping
Payment Methods:
Port of Shipment:
Guangzhou
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
TJY TYPE Super-high Pressure Water-jet Cutting MachineUS$ 35,000 - 56,000MOQ: 1 Set -
TJY 420mpa Super High Pressure Water Jet MachineUS$ 35,000 - 55,000MOQ: 1 Set
-
TJJ TYPE High Pressure Water Jet Cutting MachineUS$ 25,000 - 50,000MOQ: 1 Set
-
TJY TYPE Super-high Pressure Water Jet Cutting MachineUS$ 20,000 - 50,000MOQ: 1 Set
-
Stone Cutting Machine, Machine With High Pressure Water CuttingUS$ 30,000 - 50,000MOQ: 1 Set
Type
Stone Cutting Machine
Use
Other
Place of Origin
Guangdong, China
Brand Name
TIANJUN
Model Number
TJJ TYPE
Specifications
cessing lots materials include stone2.supercharge:KMT
3.servo motor imported from Japan
4.Naikai's CNC software
We can provide 9 types of this machine according to the size of your stone:
TJJ-1.2*1.0 ,TJJ- 1.6*1.5 ,TJJ- 2.0*1.5 , TJJ-2.5*1.5 , TJJ-2.5*2.0 , TJJ-3.0*1.5 , TJJ-3.0*2.0 , TJJ-4.0*1.5 , TJJ-4.0*2.0.

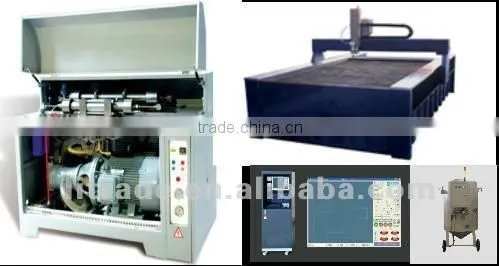

| System features | |||||||
| Cod. | Component | ||||||
| 1 | WORKINGTABLE WITH travel:3000*2000 (have seven size) | ||||||
| 2 | HITH PRESSURE INTENSIFIER PUMP 17.5KW | ||||||
| 3 | CNC NUMERICAL CONTROL INDEPENDENTLY DEVELOPED | ||||||
| 4 | PRESSURIZED ABRASIVE TANKING kg 20 WITH MINIHOPPER | ||||||
| 5 | I CUTTING HEAD IMPORT FROM ENGLAND | ||||||
| 6 | INDEPENTLY DEVELOPED SOFTWARE WITH AUTOMATIC NESTING | ||||||
DESCRIPTION OF THE EQUIPMENT
| WORKING TABLE | |||||||
| WORKING TABLE AREA | OUTSIDE TABLE DIMENSIONS | ||||||
| X- AXIS | 3000 MM | X- AXIS | 3050MM | ||||
| Y- AXIS | 2000MM | Y- AXIS | 2050MM | ||||
| Z- AXIS | 150MM | Z- AXIS | 150MM | ||||
| WORKING TABLE HEIGHT | 1000MM | CUTTING ACCURANCY | 0.2MM | ||||
| Voltage/Frequency | 380V/50HZ | ||||||
| REPEATIBILITY | 0.01MM | RAPID TRAVERSE SPEED | 0~ 12M | ||||
| TABLE STRUCTURE | |||||||
| CANTIEVER STRUCTURE: convenient for loading material | |||||||
| SPECIAL DESIGN: two holes with the tank for cutting jet water out while jet water reach 1000mm | |||||||
| Catcher net fixed the water tank for the cutting pieces | |||||||
QUALITY CONTROL:
STONE FAIR:
OUR COMPANY:
OUR CUSTOMERS COVER:
Contact US:
We are the tolal solutation supplier of stone machines and tools,For more product, please check our complany website:www,. Thanks for your attention to our company!
