Specifications
Vibration machine1. capacity: 500-1200L
2. lining thickness: 22mm
3. many sizes offered
4. different models served

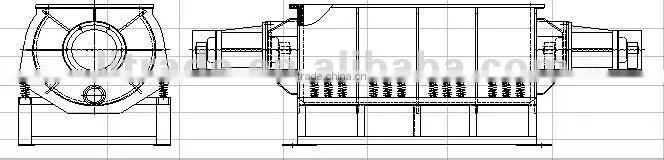

TJX(A) Linear type vibratory finishing machine (process machine)
The polisher is mainly used for processing parts made of metals, non-ferrous metals and nonmetals, including removing burrs and rust, rounding and polish-processing, especially suitable for polishing long parts and the parts with complicated and irregular cavities. After processing, not only there is no damage to the original shape or precision of dimensions of the processed parts, but also the precision of the roughness of the processed parts can be raised 1 to 2 grades, in addition, the microhardness on the parts’ surface can be increased, and the internal stress can be removed, thus enhancing the fatigue
strength. This type of polisher is suitable for the surface polishing of large quantity and batch of medium and large-sized parts.
| Model | Capacity(L) | Lining thickness (mm ) | Empty weight(kg) | motor (kW) | Tub size (mm) L×W |
External dimensions( mm) | Voltage/Frequency | |
| X(A)500 | 500 | 22 | 1200 | 2×2.2 | 1310×672 | 2870×880×920 | 380V/50HZ | |
| X(A) 750 | 750 | 22 | 1600 | 2×5.0 | 2020×672 | 3354×880×920 | 380V/50HZ | |
| X(A) 1200 | 1200 | 22 | 2100 | 2×7.0 | 2000×900 | 3000×1150×1120 | 380V/50HZ | |
Our Telephone No.: 0086-592-5551199

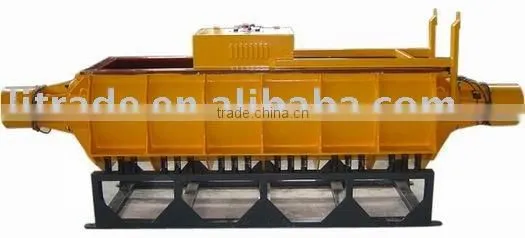

Machine photos for reference:
TJX(B) Linear type vibratory finishing mahine for example.
Gets other types of vibratory finishing machine as well.
P(B) vibratory finishing machine
QUALITY CONTROL:
OUR COMPANY:
OUR CUSTOMERS COVER:
