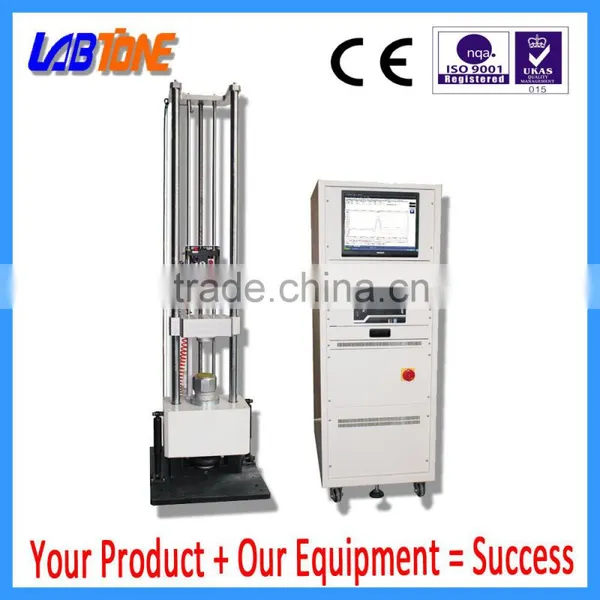

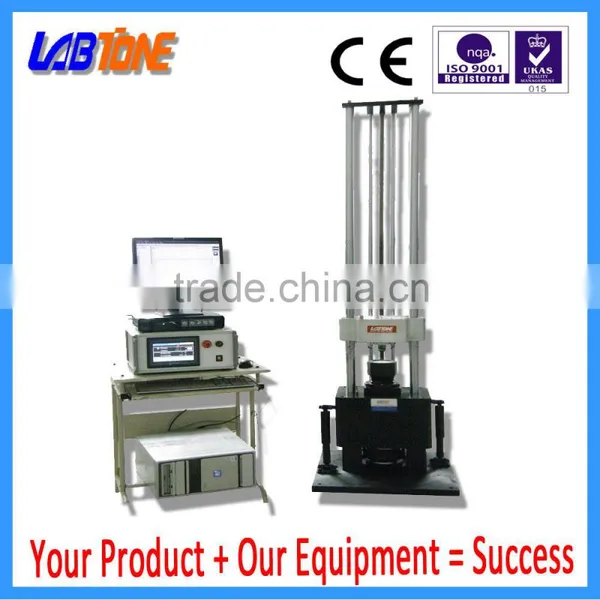

Help CenterElectrohydraulic Servo Shock Absorber Tester Mechanical Tester for Acceleration Shock Test
Related Products
-
Automated Computerized Pneumatic Shock TesterNegotiableMOQ: 1 Set -
Acceleration Mechanical Shock Tester Manufacturer ChinaUS$ 10,000 - 30,000MOQ: 1 Set
-
Guangdong Directly Factory Shock Testing System for Modal AnalysisUS$ 5,000 - 20,000MOQ: 1 Set
-
China Shock Testing System for Modal AnalysisUS$ 5,000 - 20,000MOQ: 1 Set
-
Control System Shock Testing System for Modal AnalysisUS$ 5,000 - 20,000MOQ: 1 Set
Shock testing systems Applications: aviation,aerospace,vessel,military industry,consumer electronics ,automobile,household appliances, display device etc.
Shock testing systems Features
- User-friendly touching screen operation.Half sine, square waveform shock pulse programmers.High rigidity shock tables.
- Half sine, square waveform shock pulse programmers.
- High rigidity shock tables.
- A full range of safety features.
- Apply air and hydraulic pressurization, strong friction brake avoiding secondary shock.
- Apply air spring suspension, hydraulic damping shockproof system, no shock impact on the surrounding, without foundation.
Shock testing System Block Diagram
Shock testing systems Specifications
| Model | SKT30 | SKT50 | SKT100 | SKT200 | SKT300 | SKT600 | SKT1000 | |
| Table size (cm) | 40*40 | 50*60 | 70*80 | 100*100 | 120*120 | 150*150 | 200*200 | |
| Maximum Specimen Weight(Kg) | 30 | 50 | 100 | 200 | 300 | 600 | 1000 | |
| Max. Acceleration (G) | half sine | 600 | 600 | 600 | 500 | 500 | 300 | 300 |
| saw-tooth waveform | 100 | 100 | 100 | 100 | 100 | 100 | 100 | |
| square | 150 | 150 | 150 | 100 | 100 | 100 | ||
| Pulse Duration (ms) | half sine | 40—0.2 | 40~1 | 40~1 | 30~2 | 20~3 | 20~3 | 20~3 |
| saw-tooth waveform | 18~6 | 18~6 | 18~6 | 18~6 | 18~6 | 18~6 | 18~6 | |
| square | 30~6 | 30~6 | 30~6 | 30~6 | 30~6 | 30~6 | ||
| Machine Dimension(cm) | 120*110*245 | 130*140*260 | 130*120*260 | 150*130*260 | 200*160*300 | 230*180*310 | 250*220*310 | |
| Controller cabinet Dimension(cm) | W55*D50*H80 | |||||||
| Machine Weight(Kg) | 1900 | 2300 | 3200 | 4200 | 8500 | 15500 | 19500 | |
|
Utility Requirements |
3-phase AC380V 50/60Hz 0.5~0.8MPa | |||||||
| Conforming standards | GB/T2423-2008 GJB1217 GJB360.23 GJB150 GJB548 MIL-STD-202F IEC-68-2-27 MIL-STD-883E MIL-STD-810F ISTA UL | |||||||
| Model | HSKT5 | HSKT10 | GSKT10D |
| Table size (cm) | 15*15 | 20*20 | 20*20 |
| Shock pulse | Half sine | ||
| Maximum Specimen Weight(Kg) | 5 | 10 | 10 |
| Acceleration Range(G) | 20 ~ 1500 | 20 ~ 1500 | 20 ~ 10000 |
| Pulse Duration (ms) | 0.5~11 | 0.5~11 | 0.2~11 |
| Machine Dimension(cm) | 60*55*250 | 60*55*250 | 90*70*275 |
| Utility Requirements |
AC220V 50Hz 5A,Air pressure: more than 0.5Mpa | ||
| Machine Weight(Kg) | 600 | 650 | 110 |
Internatinal Standard Wood Case
| Pre-sales service |
| Technical Advisory: Testing method, laboratory planning and advice |
| Equipment Selection: Type-selecting scheme,FAQ |
| Product testing scheme |
| Selling service |
| Customer Communication,progress communication |
| Before installation, we will provide guidance of preparation , equipment debugging, equipment commissioning |
| Cooperate with measuring if need the third party verification |
| After-sale service |
| Quality assurance period for one year,lifelong maintenance. |
| Technical guidance |
| Feedback within 2 hours after get the call. |
| Accept OEM,Design service,Buyer lable |
How do you attach the hardware you’re testing to your shaker?
By means of a fixture, usually aluminum or magnesium for lightness coupled with rigidity. They can be cast, or smaller fixtures machined from solid stock. Most fixtures are welded.
How do you control shakers?
If we’re looking for resonances in the product we’re testing, we command the shaker to shake the product at one frequency at a time but to vary that test frequency, to sweep it over a range of frequencies.But more realistically, we command the shaker to vibrate randomly and to excite all the resonances simultaneously.Control commands go into the keyboard of a specially-programmed computer.
What are those resonances?Are they bad?
Have you ever noticed the steering wheel moving with rather large displacement amplitude, larger than the input to the column? That magnification is called resonance. Possibly it annoys you. There’s a slight chance that in a few years that whipping of the steering column might cause bending fatigue failure.When we shake an automotive or ship or land vehicle instrument, we're looking for, for example, portions of printed wiring boards (PWBs) responding with greater motion than we're inputting. That flexing may damage PWB wiring, it may damage the attached components, and it will damage the soldered connections between components and the PWB.
Shenzhen Labtone Test Equipment Co., Ltd. was established in 2002 and is the sole professional direct manufacturer in sourthern part of Chna in simulation testing equipment under mechanical environment, integrating development and production together. This includes Vibration testing systems, Shocking testing systems, Drop tester, Bump testing machines, Vibration-temperature humidity combined reliability testing systems, etc.Our products are used in a variety of applications, such as automotive,electronics,aerospace,vessel,telecommunication,optoelectronics ,instrument etc. Currently, our products are exported to Southeast Asia, Occident and other countries and regions. And they are widely recognized and trusted by users. Besides, we are making great efforts to develop new products to meet different requirements. Adhering to the business principle of mutual benefits, we have built up a good reputation among our customers due to our perfect services, quality products and competitive prices. We warmly welcome customers from domestic and overseas to cooperate with us for common success.
