Help CenterDiamond Grinding Cup Wheels
Negotiable
MOQ: 1 Piece (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Fujian, China
Brand Name:
TIANJUN
Model Number:
Diamond Grinding Cup Wheels
Payment & Shipping
Payment Methods:
Port of Shipment:
xiamen
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Stone Brush, Archaize Brush, 35cm Circle Compound BrushUS$ 2 - 20MOQ: 1 Piece -
Diamond Saw Blade for Marble Gang Saw Machine.US$ 20 - 50MOQ: 1 Piece
-
Stone Frankfurt Abrasive, Polishing BricksUS$ 1 - 3MOQ: 1 Piece
-
Abrasive Concrete Floor Polishing PadsUS$ 0.5 - 10MOQ: 1 Piece
-
T2 Straight Brush, Machine ToolUS$ 2 - 20MOQ: 1 Piece
Place of Origin
Fujian, China
Brand Name
TIANJUN
Model Number
Diamond Grinding Cup Wheels
Type
Abrasive Disc
Size
65mm,80mm,100mm,115mm,125mm,180mm
Specifications

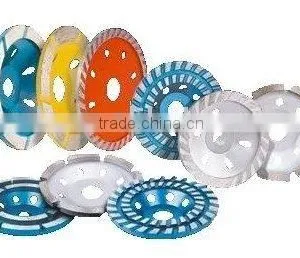

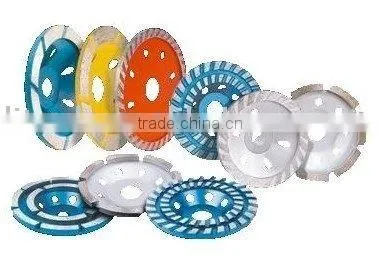

Diamond Grinding Cup Wheelssingle row grinding wheel
double row grinding wheel
Turbo grinding wheel
Alumium / swirling type
| Type | Outer diameter(mm) | Hole(mm) | Segments Dimension(mm) | Segments No.(pcs) | ||
| Length | Height | Width | ||||
| Single Row | 65 | 16/20 | 20 | 4.8 | 6 | 7 |
| 80 | 16/20 | 25 | 4.8 | 6 | 7 | |
| 100 | 16/20 | 30 | 5.7 | 7.2 | 7 | |
| 115 | 16/20 | 38 | 5.7 | 7.2 | 7 | |
| 125 | 16/20 | 38 | 5.7 | 7.2 | 7 | |
| 180 | 16/20 | 38 | 5.7 | 7.2 | 12 | |
| Double Row | 100 | 16/20 | 38/30 | 5.7 | 7.2 | 14 |
| 115 | 16/20 | 38/30 | 5.7 | 7.2 | 14 | |
| 125 | 16/20 | 38/30 | 5.7 | 7.2 | 14 | |
| 180 | 16/20 | 38/30 | 5.7 | 7.2 | 14 | |
| Turbo | 100 | 16/20 | 30 | 5.7 | 7.2 | sintered |
| 125 | 16/20 | 30 | 5.7 | 7.2 | sintered | |
| 180 | 16/20 | 30 | 5.7 | 7.2 | sintered | |
| Swirling | 100 | 16/20 | 30 | 5.7 | 7.2 | 7,14 |
| 115 | 16/20 | 30 | 5.7 | 7.2 | 9 | |
| 125 | 16/20 | 30 | 5.7 | 7.2 | 10 | |
| 180 | 16/20 | 30 | 5.7 | 7.2 | 24,14 | |
| Aluminum | 100 | M14,16,5/8-11" | sintered | |||
| 115 | M14,16,5/8-11" | sintered | ||||
| 125 | M14,16,5/8-11" | sintered | ||||
| 180 | M14,16,5/8-11" | sintered | ||||
Mainly used for grinding and buffing marble, granite, conctete, etc.
Perfect for blocking off flesh from granite and marble surface at a construction site Sintered, Brazed, electroplated can be suplied according to custome's requirements.Three different quality such as coarse, medium, and fine are also available. Specification 4"--10"
Diamond Grinding Cup Wheels
single row grinding wheels
double row grinding wheels
Turbo grinding wheels
Alumium / swirling type
