2015 stone cutting tools,circular saw blade,saw blade

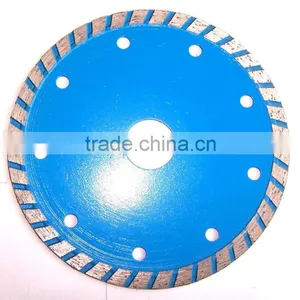

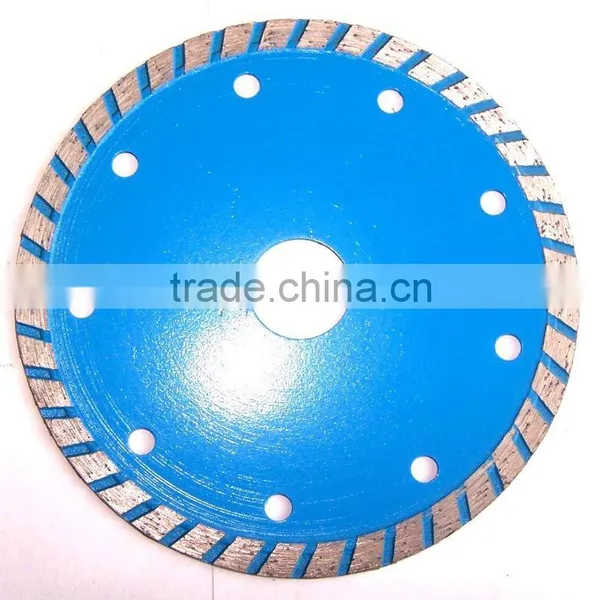

Smaller saw blade:
Turbo type,dry or water cutting
For marbe , granite , ceramic cutting
High quality
| turbo bladeø105 | 20/ 22.23/ 25.4 | A+ | FULITB105 | H7mm | |
| turbo bladeø110 | 20/ 22.23/ 25.4 | A+ | FULITB105 | H7mm | |
| turbo bladeø115 | 20/ 22.23/ 25.4 | A+ | FULITB115 | H7mm | |
| turbo bladeø125 | 20/ 22.23/ 25.4 | A+ | FULITB125 | H7mm | |
| turbo bladeø150 | 20/ 22.23/ 25.4 | A+ | FULITB150 | H7mm | |
| turbo bladeø180 | 20/ 22.23/ 25.4 | A+ | FULITB180 | H7mm | |
| turbo bladeø200 | 20/ 22.23/ 25.4 | A+ | FULITB200 | H7mm | |
| turbo bladeø230 | 20/ 22.23/ 25.4 | A+ | FULITB230 | H7mm | |
| turbo bladeø250 | 20/ 22.23/ 25.4 | A+ | FULITB250 | H7mm | |
| turbo bladeø300 | 20/ 22.23/ 25.4 | A+ | FULITB300 | H7mm | |
| turbo bladeø350 | 20/ 22.23/ 25.4 | A+ | FULITB350 | H7mm | |
Larger saw blade
| Dimension Scope: φ900mmφ2500mm. | ||||
| Characteristics: Very easy cutting without swinging, long lifespan. | ||||
| The following specification is only for reference: | ||||
| 1.Same Diameter: | ||||
Diameter(mm) |
Segment Dimension |
Segment No. on one blade(pcs.) |
Number Of BladesUsing Together(pcs.) |
|
L × W × H(mm) | ||||
φ900 |
24 × 6.8/6.0 ×12/15 |
64 |
15-30 |
|
φ1000 |
24 × 7.2/6.4 ×12/15 |
70 |
15-30 |
|
φ1200 |
24 × 8.0/7.2 ×12/15 |
80 |
15-30 |
|
φ1600 |
24 × 9.0/8.2 ×12/15 |
108 |
10-20-30 |
|
| 2.Different Diameter: | ||||
Diameter(mm) |
Core thickness(mm) |
Segment Dimension |
Segment No. on one blade(pcs.) |
Combination(mm) |
L × W × H(mm) | ||||
φ900 |
5 |
24 × 6.6/6.0 × 12/15 |
64 |
φ1600+φ1200+φ900 |
φ1200 |
5.5 |
24 × 7.5/6.5 × 12/15 |
80 |
|
φ1600 |
5.5 |
24 ×7.0/6.4 × 12/15 |
108 |
|
6.5 |
24 × 8.0/7.4 × 12/15 |
108 |
||
7.2 |
24 × 9.2/8.4 × 12/15 |
108 |
||
φ1800 |
5 |
24 × 6.4/5.8 × 12/15 |
118/120 |
φ1800+φ1600+φ1200+φ900 |
5.5 |
24 × 7.0/6.4 × 12/15 |
118/120 |
||
6.5 |
24 × 8.0/7.4 × 12/15 |
118/120 |
||
φ2000 |
5.5 |
24 ×7.0/6.4 × 12/15 |
126/128 |
φ2000+φ1800/φ1600+φ1200+φ900 |
6.5 |
24 × 8.0/7.4 × 12/15 |
126/128 |
||
7.2 |
24 × 9.2/8.4 × 12/15 |
126/128 |
||
φ2200 |
5.5 |
24 ×7.0/6.4 × 12/15 |
132 |
φ2200+φ1600+φ900 |
6.5 |
24 × 8.0/7.4 × 12/15 |
132 |
||
7.2 |
24 × 9.2/8.4 × 12/15 |
132 |
||
φ2500 |
7.2 |
24 ×9.2/8.6 × 12/15 |
140 |
φ2500+φ1600+φ1200+φ900 |
8 |
24 ×10.2/9.6 × 12/15 |
140 |
||
9 |
24 ×11.2/10.6 × 12/15 |
140 |
||
1.φ250φ800mm Diamond Saw Blades for edge cutting of slabs of Marble, Granite, Limestone etc. Suitable for Bridge Edge Cutting Machine and Manual Handling Machine. Silent type is available.
2.φ900φ3500mm Diamond Segments and Circular Saw Blades for the Cutting of Block Marble, Granite, Sandstone, Limestone, Slate etc. Suitable for Bridge Cutting Machine and Single Arm Machine.
Wet use only.Easy and smooth cutting, Long lifespan and stable performance, Good cutting result.
Many saw blade styles and sizes offered, for granite and marble. Please contact us for more details.
Noted:
Warning: Please use high frequency Silver Welded machine to make the brazing if you only order diamond segments, and not to use Fire to braze the segment to the saw blank, otherwise the diamond will be damaged then the cutting performance will be influenced(Reduced)!
Recommendation: Please put 1.0%-1.5% chemical material(Coolant Material) into the water to increase the cutting speed & life.
When place order for saw blades please inform the following:
Diameter (Inch or mm)
Inner Hole Size (Inch or mm)
Installation hole (If, need drawing)
Segment No. (how many pcs segment per blade)
Segment Size (L x W x H, if possible please inform Steel Core Thickness)
Use of saw blade (For Granite, or marble, or limestone, or Sandstone. or other material)
Quantity NO. (How many pcs, or how many sets segments)
Machine Powder/RPM (If possible)
Feed Speed (M/Minute)
Expected Cutting Depth (how many mm per time, forward or backward)
Coolant System (Water or Oil, how many liters/Minute, etc.)
Expected Shipping Date
Special Requirements (If)
If only order segments please inform the following:
Diameter (Inch or mm)
Segment No. (how many pcs segment per blade)
Segment Size (L x W x H, if better to inform the Steel Core Thickness)
Use of saw blade (For Granite, marble, limestone, Sandstone. or other material)
Quantity NO. (how many sets segments)
Machine Powder/RPM, Feed Speed, Normal Cutting Depth (If possible)
Expected Shipping Date
Special Requirements (If)
Products: different sizes of saw blades are offered here 100-4800mm.
The segments are served here as well.
QUALITY CONTROL:
We can ensure to offer you the good quality products in very reasonable and competitive price, also the full service all the time.
STONE FAIR:
We have attended the stone fair in different countries, such as Russia, Egypt, Brazil, Vietnam, Turkey, India, etc. And you can always find our booth in Xiamen Stone Fair. Welcome to come and visit our company anytime.
OUR CUSTOMERS COVER:
Thanks to the recognition and support of our customers, we have exported products to more than 65 different countries till now, and the number is increasing year by year.
OUR COMPANY:
We are located in the beautiful city, Xiamen, China. Established in March, 2006.
Contact US:
Please feel free to contact us if you get any question or new inquiry,
Also welcome to come and visit our company anytime for further business discussion!
