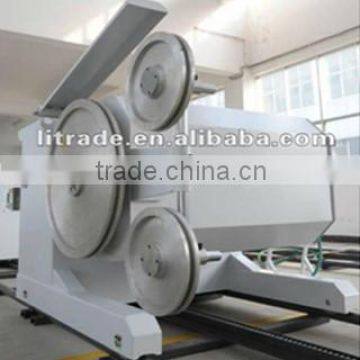

TJTB Diamond Wire Saw Machine,Quarry Saw Machine, Diamond Wire Saw Machine, Stone Beads Machine
US$ 15,000 - 30,000
MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New, New
Type:
Other, Block cutting
Use:
Other, Granite and marble
Payment & Shipping
Payment Methods:
Port of Shipment:
Guangzhou
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
TJSN Double Blade Stone Cutting Machine For Granite QuarriesUS$ 23,000 - 32,000MOQ: 1 Set -
75KW Quarry Machine,Diamond Wire Saw Shipped From China in High EfficiencyUS$ 24,600 - 24,700MOQ: 1 Set
-
Good Qualtiy Diamond Wire Saw for QuarryUS$ 15,000 - 25,000MOQ: 1 Set
-
Marble and Granite Diamond Wire Saw for QuarryUS$ 15,500 - 16,500MOQ: 1 Set
-
90kw High Quality Diamond Wire Saw for QuarryUS$ 20,000 - 25,000MOQ: 1 Set
Type
Other, Block cutting
Use
Other, Granite and marble
Production Capacity
5-20m3/h
Place of Origin
Guangdong, China
Brand Name
TIANJUN
Model Number
TJTB90/75/55/75/37KW
Voltage
380+_10%&50HZ
Power(W)
0.75kw
Dimension(L*W*H)
1900*1600*1500
Weight
2.5T
After-sales Service Provided
Engineers available to service machinery overseas
Granite Mable Block Cutting Machine, Quarry Saw machine, stone beads machine
(1) Advanced technology design and manufacturing, mining for granite, marble, sandstone.
(2) Adjustment of the head and rotation electric control high degree of automation.
(3) High-performance inverter output torque constant. The constant tension control theory, according to the cutting force changes automatically adjust the feed speed of the adjustment process is stable and reliable, to ensure the best cutting state.

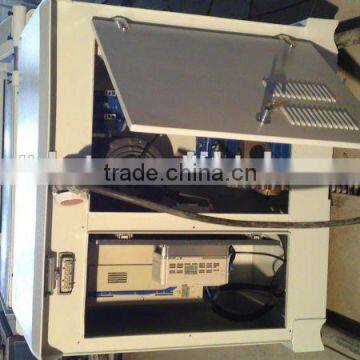

(4)Console using the intelligent instrument control, real-time sworn the main motor current, travel speed and cutting time and other parameters, easy to control.
Different models of diamond wire saw machine offered
| 75KW Diamond Wire Saw Specifications | |||||||
| Total Power | 78.5KW | ||||||
| Driving Power | 75kw=100HP | ||||||
| Feeding Power | 2.2kw | ||||||
| Rotary cutting head motor power | 1.1kw | ||||||
| Cutting head lateral moving motor power | 0.75kw | ||||||
| Cutting head rotation | 360° | ||||||
| Cutting head adjustment distance | 400mm | ||||||
| Lateral movement of cutting head | 1800mm | ||||||
| Main Guide Wheel Diamete | 800mm (Granite) 900mm(Marble) | ||||||
| Rail | 2m*3 | ||||||
| Rotation speed | 740/min | ||||||
| Linear speed | 0-40m/s | ||||||
| Wire tension | Auto-controlled | ||||||
| Allowable Working Temperature | -15°C to +40° | ||||||
| Power | AC 380±10% & 50HZ | ||||||
| size | L=2000, W=1700, H=1400 | ||||||
| Net Weight | 3.0T | ||||||
| 55KW Diamond Wire Saw Specifications | |||||||
| Total Power | 58kw | ||||||
| Driving Power | 55kw=74HP | ||||||
| Feeding Power | 1.5kw | ||||||
| Rotary cutting head motor power | 0.75kw | ||||||
| Cutting head lateral moving motor power | 0.55kw | ||||||
| Cutting head rotation | 360° | ||||||
| Cutting head adjustment distance | 400mm | ||||||
| Lateral movement of cutting head | 1800mm | ||||||
| Main Guide Wheel Diamete | 800mm (Granite) 900mm(Marble) | ||||||
| Rail | 2m*3 | ||||||
| Rotation speed | 960/min | ||||||
| Linear speed | 0-40m/s | ||||||
| Wire tension | Auto-controlled | ||||||
| Allowable Working Temperature | -15°C to +40° | ||||||
| Power | AC 380±10% & 50HZ | ||||||
| size | L=1800, W=1600, H=1400 | ||||||
| Net Weight | 2.8T | ||||||
| 45KW Diamond Wire Saw Specifications | |||||||
| Total Power | 48kw | ||||||
| Driving Power | 45kw=65HP | ||||||
| Feeding Power | 0.75kw | ||||||
| Rotary cutting head motor power | 0.75kw | ||||||
| Cutting head lateral moving motor power | 0.55kw | ||||||
| Cutting head rotation | 360° | ||||||
| Cutting head adjustment distance | 400mm | ||||||
| Lateral movement of cutting head | 1800mm | ||||||
| Main Guide Wheel Diamete | 800mm | ||||||
| Rail | 2m*3 | ||||||
| Rotation speed | 960/min | ||||||
| Linear speed | 0-40m/s | ||||||
| Wire tension | Auto-controlled | ||||||
| Allowable Working Temperature | -15°C to +40° | ||||||
| Power | AC 380±10% & 50HZ | ||||||
| size | L=1800, W=1500, H=1400 | ||||||
| Net Weight | 2.5 | ||||||
| 37KW Diamond Wire Saw Specifications | |||||||
| Total Power | 40kw | ||||||
| Driving Power | 37kw=50HP | ||||||
| Feeding Power | 0.75kw | ||||||
| Rotary cutting head motor power | 0.75kw | ||||||
| Cutting head lateral moving motor power | 0.55kw | ||||||
| Cutting head rotation | 360° | ||||||
| Cutting head adjustment distance | 400mm | ||||||
| Lateral movement of cutting head | 1800mm | ||||||
| Main Guide Wheel Diamete | 800mm | ||||||
| Rail | 2m*3 | ||||||
| Rotation speed | 960/min | ||||||
| Linear speed | 0-40m/s | ||||||
| Wire tension | Auto-controlled | ||||||
| Allowable Working Temperature | -15°C to +40° | ||||||
| Power | AC 380±10% & 50HZ | ||||||
| size | L=1700, W=1500, H=1400 | ||||||
| Net Weight | 2.0T | ||||||

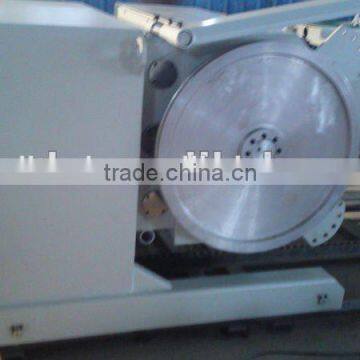

Main guide wheel:
Rails
Packaging:
QUALITY CONTROL:
STONE FAIR:
OUR COMPANY:
OUR CUSTOMERS COVER:
