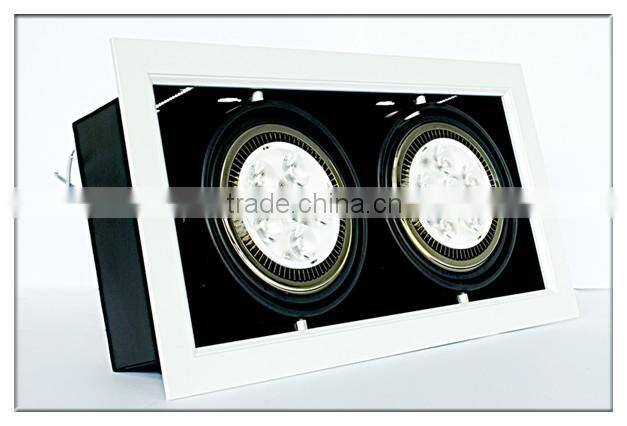

Classical Lamp

Specifications

led ar111

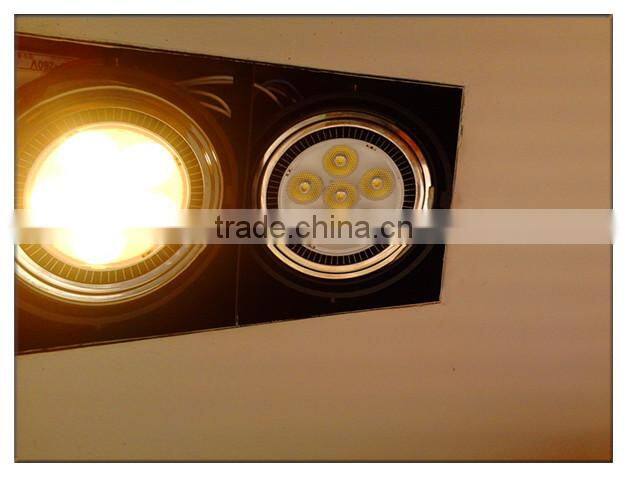

Those products can be widely used for partial lighting , decorative lighting ,

such as shopwindow , canbinet , shop , hotel , museum , theater , Bar etc .

Specification

Recommend to: replace70-80w traditional light

LUX testing following for your reference

Light source: Osram,

Base: G53 (suggest using DC12V 1A led driver)

          With a separated transformer:600mA (18-24V 0.6A led power supply)

Power consumption: 12/15W

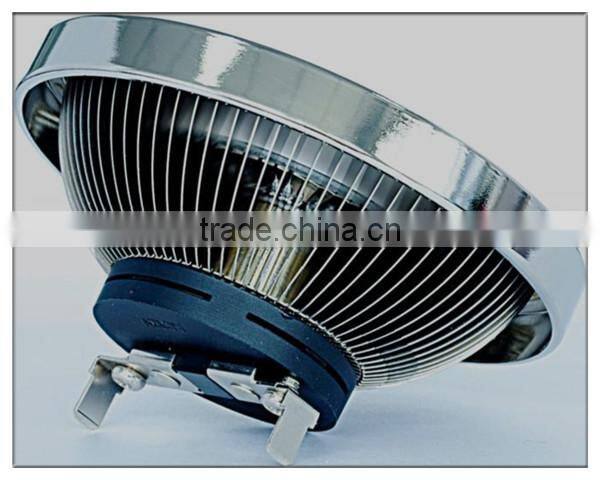

Material : aluminum copper alloy

main frame:Stamping Aluminium Fin

Color temperature:2630-2850k, 3000-3500k , 5650-7000k

Color rendering index (CRI): Ra>85

Power factor: >95%

Power efficiency: >92%

Beam angle (with Lens): 8°/25°/40°/60°

Operating temperature: -20 to 50deg

Storage temperature: -40 to 60deg

Operating humidity: 10 to 90%

Operating life: >50,000 hours  , min. 70% Lumen Maintenance after 50,000hrs

Input voltage: 12V AC /DC

Frequency range: 50 to 60Hz, (±3)

Junction temperature: <65 (Ta = 25)

IP rating: IP55

Dimensions:  D111mm×L62.5mm

Warranty: 3 years

Certificates: CE, RoHS,

Advantage

1.long time spanlife

2.best heat sink

3.high brightness

Pictures

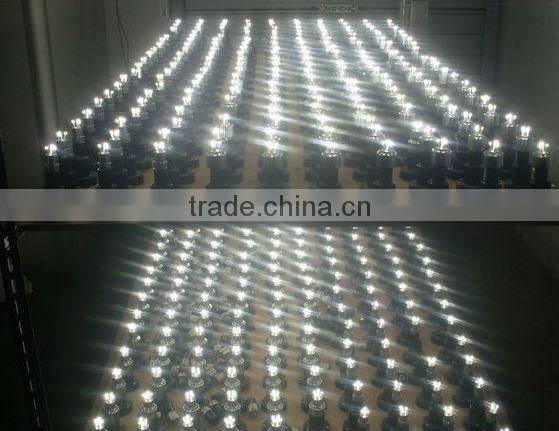

Factory & List

Terms of telephone receiver

1.We accept TT, West Union ,Paypal payment

2.Delivery : Within 3-5 days for samples, 7-10 days for more then 1K
