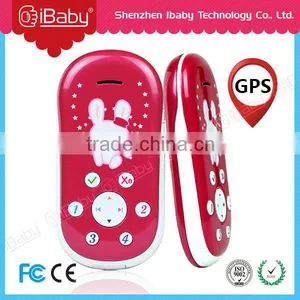

Q5GN Gps Tracker kids activity tracker

Specifications

activity tracker
Special design for children

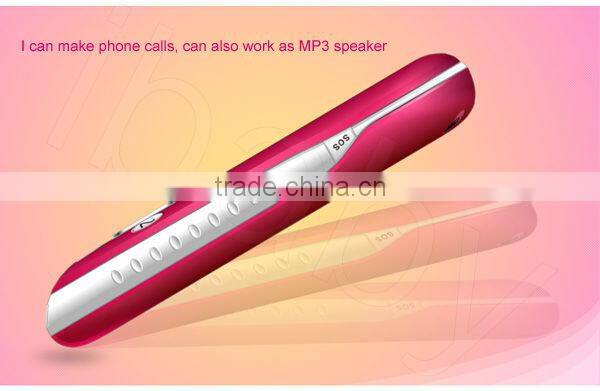

Bulit-in MP3 speaker

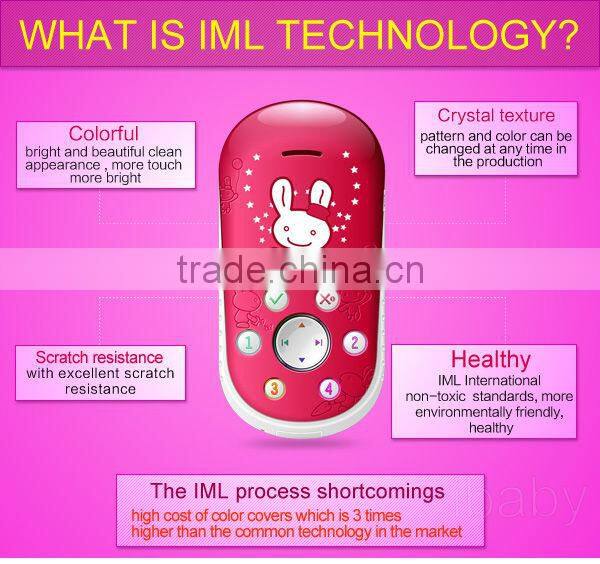

Top IML Technology
Ultra-low radiation

Q5GN Gps Tracker kids activity tracker



Specifications:



activity tracker

Special design for children

Bulit-in MP3 speaker

Top IML Technology Ultra-low radiation





Introduction Working based on existing GSM/GPRS network and GPS satellites,  activity tracker  is a powerful GPS tracking and security phone with built-in MP3 speaker,which is special designed for children. Not only transmit the longitude and latitude coordinate to your cell phone by SMS, but also transmit the longitude and latitude coordinate to the Free GPS tracking system () by GPRS and then display the location by tracking software.



Functions:



1. Loud speaker of mp3 music player, story-telling



2. 5 LED Breathing lights with music rhythm flashing



3. SOS button for emergence calls



4. 8 speed call family numbers



5. Call safe firewall



6. Forbidden in class



7. Alarm and timer switch on/off



8. Voice guidance and Timekeeping



 9. Low battery alert



10. Limit shutdown: Kids can not switch off the phone without password



11. Remote wake up and sleep by sending SMS command



12. User data can be set in the service website, then sync to the phone, simple operation



Other Software Features:



1. Simple setup: in the website (/q5n) edit all user data, save the configuration file and saved to the phone



2. Easy-to-use for children:  Speed dial Mum, Dad and other family members



3. SOS key to call for help:  Recycly call four pre-set numbers and send help SMS



4. Remote monitoring:  Send SMS command to activate monitoring function, parents can listen to the sound around the baby phone in 5meter secretly



5. Forbidden in Class:  Parents can set classes time according to the child's school hours to disable all functions except SOS and clock in class time



6. Timer switch on off: Can set 4 groups timer switch



7. Personalized ring tones: Phone ring tones can be set for different numbers



8. Limit shutdown:  Parents set password to stop children from shutdown,to prevent child misuse shutdown or deliberately shut down, affecting the parents contact and positioning query



9. Low battery notify parents:  When the child's cell phone battery is low, Parental phone will receive charging remind SMS



10. Firewall:  Only the numbers in the phone book are allowed to call in, other strange number shall be blocked



11. Website synchronization:  Parents can use Ibaby service Web Site to set the functions for kids phone and remote synchronization or save to the kids phone



12. Remote control:  Parents send SMS command to turn off or wake up or activate monitoring function etc.



GPS tracking



1. Unique GPS + LBS location provide solution to indoor positioning blind spot



2. More than two years of research and development of patented technology to improve GPS power consumption problem, the standby time increase by 50%



3. Get position by 3 ways:



 1.Send a SMS command to the baby GPS phone and it will SMS you the longitude, latitude coordinate and URL map link,then you can find out the location accurately through the free Google Map.



2. Log in our free service platform to see the position in cell phone directly and view the position and history.



3.Call the kids phone, when you hear a beep and hang up, then you will receive SMS with longitude and latitude with URL map link.

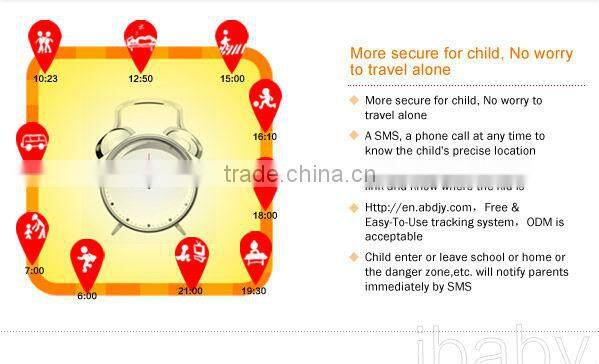

4. GEO-fence: automatically send SMS notification to guardian's phone if the unit is out of the safety area or enter into monitor area such as school, home etc maximum up to 20 monitor zones.



5. Efficient data compression technology to ensure real-time location and tracking little GPRS traffic.



6. Self developped Free GPS tracking system, provide ODM design if required by customer.





1.   Product Specifications
Features	Description
style	Bar
Target Age & Gender	2~6   years old
availabile color	Red
screen parameter	-

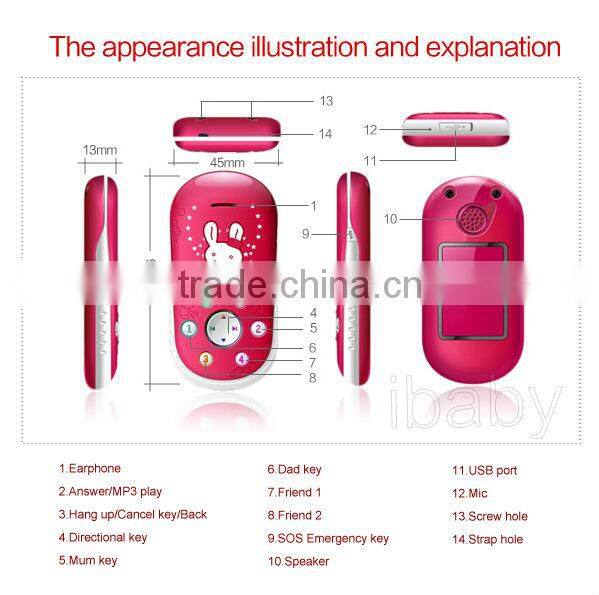

size	93mm   * 45mm * 13mm
weight	68g   (Battery inserted)
antenna	inner
battery	950mAh
charger	100-240V   switching power supply
local connection	USB(Micro   5 pin)
polyphonic	64polyphonics
MP3	Yes
Built-in Speaker	Yes
camera	No
bluetooth	No
standby time	240-260hours(when gps   is off), 54-72hours(GPS On)
talking time	240Mins
phone book	50
SMS	-
GSM	GSM   900/1800 or GSM 850/1900
GPRS	Class   10
GPS	Sirf   3 module
CPU	MTK6252
SIM	one   SIM on standby
Memory	Support   TF card maximum 4GB
Package content	Kid mobile phone,   operation manual,gift box,USB cable,earpiece
2. Technical   Specifications
Working Temperature	-20   ~55
Humidity	30%~75%
Voltage	Normal   voltage: 3.7V Low voltage:3.3v High voltage:4.2V
Search GPS signal speed	Cold   start 40s
	Hot   start 1s
GPS Sensitivity	< -159dBm
Trace accuracy	5-10   meters
3. Package
Gift box Measurement	20*20*7CM
Unit weight with gift box:	68g
Quantity/carton:	20
Carton dimensions	41*41*32CM
N.W./carton	8.5kgs
4. Business terms
a.OEM & ODM is acceptable for us
b.Leadtime: 7-10 days for less than 500pcs order
c.MOQ: 20pcs
d.TT,Western union
e.Quality assurance: we provide one year warranty
