TJTB Diamond Wire Saw For Stone Cutting, Diamond Wire Saws for Cutting Granite Stone
US$ 15,000 - 30,000
MOQ: 1 Set
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
TIANJUN
Model Number:
TJTB90/75/55/75/37KW
Payment & Shipping
Payment Methods:
Port of Shipment:
Guangzhou
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
TJTB Diamond Wire Saw For Stone Cutting,Machine Granite CuttingUS$ 15,000 - 30,000MOQ: 1 Set -
TJTB Diamond Wire Saw For Stone Cutting,Industrial Stone Cutting MachinesUS$ 15,000 - 30,000MOQ: 1 Set
-
2016 TJTB Diamond Wire Saw For Stone Cutting, Diamond Saws for Cutting Quartz StoneUS$ 15,000 - 30,000MOQ: 1 Set
-
2014 TJTB Diamond Wire Saw For Stone Cutting,Granite MachineryUS$ 15,000 - 30,000MOQ: 1 Set
-
TJTB Diamond Wire Saw For Stone Cutting,Favorites Compare Diamond Wire Cutting Machine for Stone Quarry or MinesUS$ 15,000 - 30,000MOQ: 1 Set
Place of Origin
Guangdong, China
Brand Name
TIANJUN
Model Number
TJTB90/75/55/75/37KW
Specifications

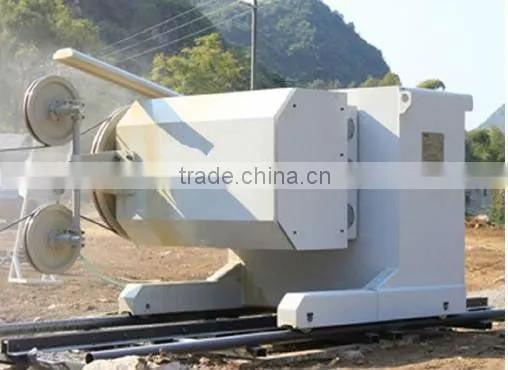

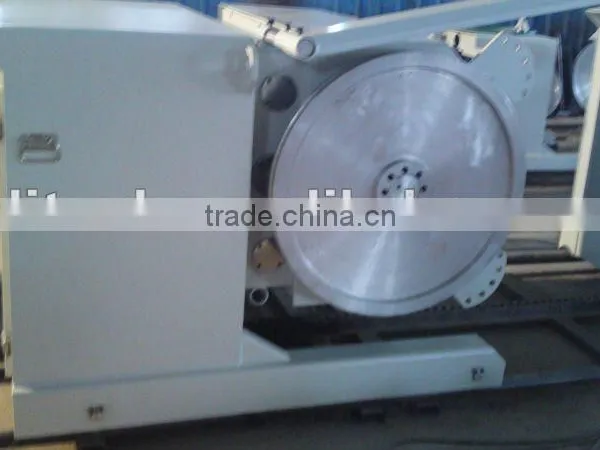

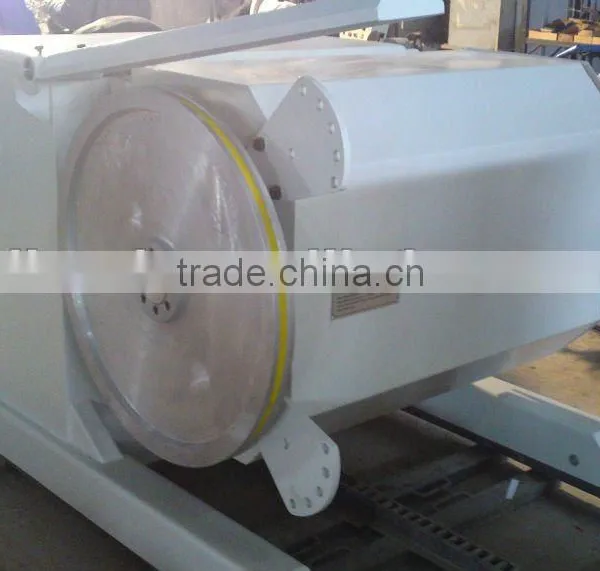

Quarry wire saw cutting machineFor granite and marble
Easy operation,good quality
Widely used in Russia
Different block cut
Granite Mable Block Cutting Machine, Diamond Wire Saws for Cutting Granite Stone
(1) Advanced technology design and manufacturing, mining for granite, marble, sandstone.
(2) Adjustment of the head and rotation electric control high degree of automation.
(3) High-performance inverter output torque constant. The constant tension control theory, according to the cutting force changes automatically adjust the feed speed of the adjustment process is stable and reliable, to ensure the best cutting state.
(4)Console using the intelligent instrument control, real-time sworn the main motor current, travel speed and cutting time and other parameters, easy to control.
Different quarry saw machine models offered:
| Total Power | 95KW | 78.5KW | 58kw | 48kw | 40kw | ||||||
| Driving Power | 90kw | 75kw=100HP | 55kw=74HP | 45kw=50HP | 37kw=50HP | ||||||
| Feeding Power | 2.2kw | 2.2kw | 1.5kw | 0.75kw | 0.75kw | ||||||
| Rotary cutting head motor power | 0.75kw | 0.75kw | 0.75kw | 0.75kw | 0.75kw | ||||||
| Cutting head lateral moving motor power | 0.75kw | 0.75kw | 0.55kw | 0.55kw | 0.55kw | ||||||
| Cutting head rotation | 360° | 360° | 360° | 360° | 360° | ||||||
| Cutting head adjustment distance | 450mm | 450mm | 450mm | 450mm | 450mm | ||||||
| Lateral movement of cutting head | 1800mm | 1800mm | 1800mm | 1800mm | 1800mm | ||||||
| Main Guide Wheel Diamete | 800mm (Granite) 900mm(Marble) | 800mm (Granite) 900mm(Marble) | 800mm (Granite) 900mm(Marble) | 800mm | 800mm | ||||||
| Rail | 2m*3 | 2m*3 | 2m*3 | 2m*3 | 2m*3 | ||||||
| Rotation speed | 960/min | 960/min | 960/min | 960/min | 960/min | ||||||
| Linear speed | 0-40m/s | 0-40m/s | 0-40m/s | 0-40m/s | 0-40m/s | ||||||
| Wire tension | Auto-controlled | Auto-controlled | Auto-controlled | Auto-controlled | Auto-controlled | ||||||
| Allowable Working Temperature | -15°C to +40° | -15°C to +40° | -15°C to +40° | -15°C to +40° | -15°C to +40° | ||||||
| Power | AC 380±10% & 50HZ | AC 380±10% & 50HZ | AC 380±10% & 50HZ | AC 380±10% & 50HZ | AC 380±10% & 50HZ | ||||||
| size | L=1700, W=1500, H=1400 | L=1900, W=1600, H=1400 | L=1800, W=1600, H=1400 | L=1800, W=1500, H=1400 | L=1700, W=1500, H=1400 | ||||||
| Net Weight | 2.8T | 2.5T | 2.4T | 2.4T | 1.6T |
