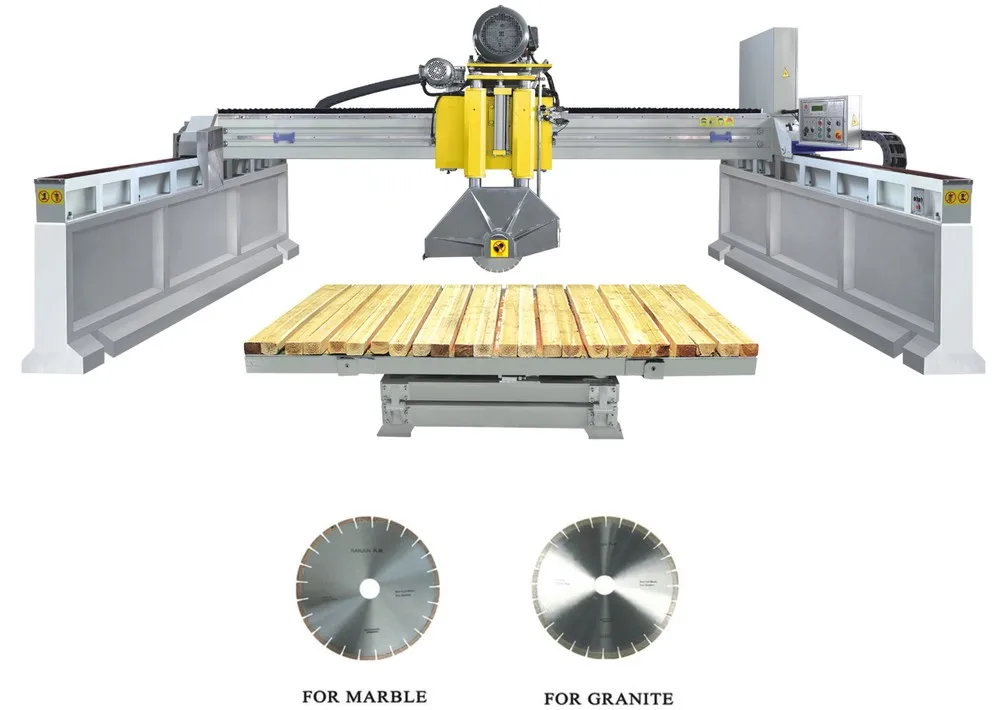

Help CenterTJB-500 Infrared Automatic Bridge Type Edge Cutting Machine
Related Products
-
TJLD-20C Automatic Polishing Machine for Granite SlabUS$ 50,000 - 170,000MOQ: 1 Set -
TJLD-12C Automatic Granite Polishing MachineUS$ 40,000 - 110,000MOQ: 1 Set
-
TJSN-1400 Horizontal and Vertical Qarry Cutting MachineUS$ 28,000 - 31,000MOQ: 1 Set
-
Stone Cutting Machine,Quarry Block Cutting Machine With CE, Quarry Stone Cutting MachineUS$ 20,000 - 32,000MOQ: 1 Set
-
FRANKFURT ABRASIVE ,resin Bond (NORMAL TYPE) Quality ChoiceUS$ 1 - 2MOQ: 36 Units
Product Application
Cross beam is the main part of the machine. Spindle box frequently moves horizontally on it. The accuracy of horizontal movement is ensured by the cross beam to complete the cutting of stone length, which require the guide way with good guidance quality and stability, and no creeping or abnormal vibration.
The machine is suitable for cutting granite and marble slab, with many advantages such as rational construction, steady movement, high accuracy, convenient installation and maintenance. Compared with similar products, the advantages are obvious.
The machine is made up of main motor, longitudinal slicing part, worktable assembly, electric control system, hydraulic system and so on.

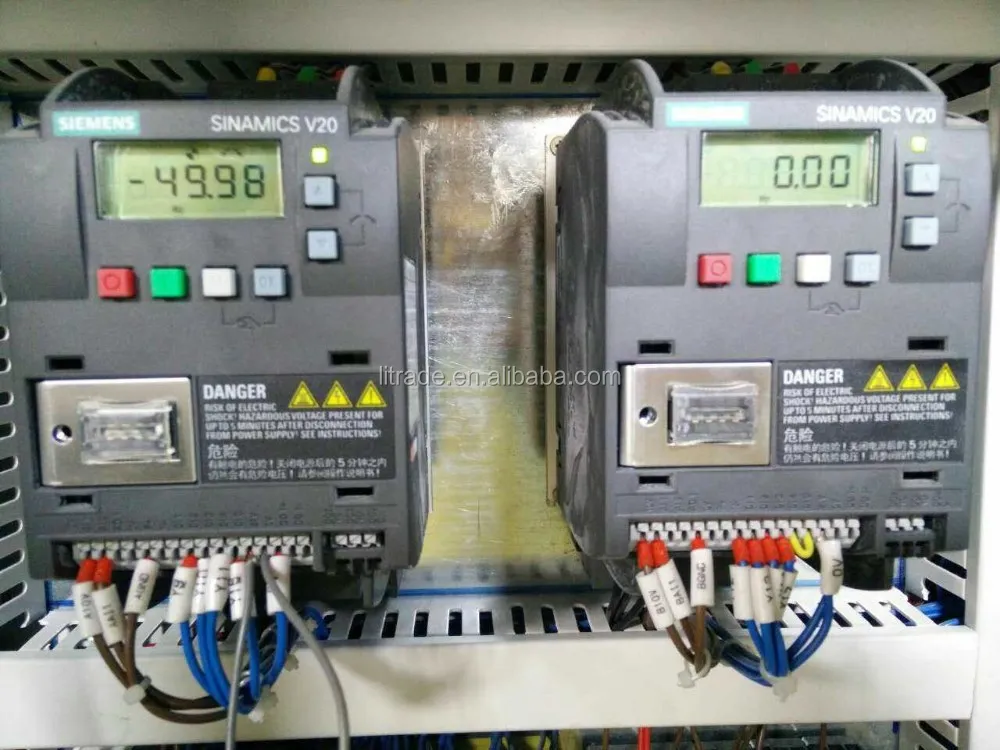

The machine is automatically controlled by PLC (or manually controlled). The cutting size is input via computer terminal. Users can set the quantity, processing thickness, cutting thickness and feeding speed according to requirements. It is equipped with infrared tool setting gauge, to accurately adjust the cutting size. The crosswise feeding speed and spindle speed is controlled by frequency converter. Users can adjust it as per requirements.

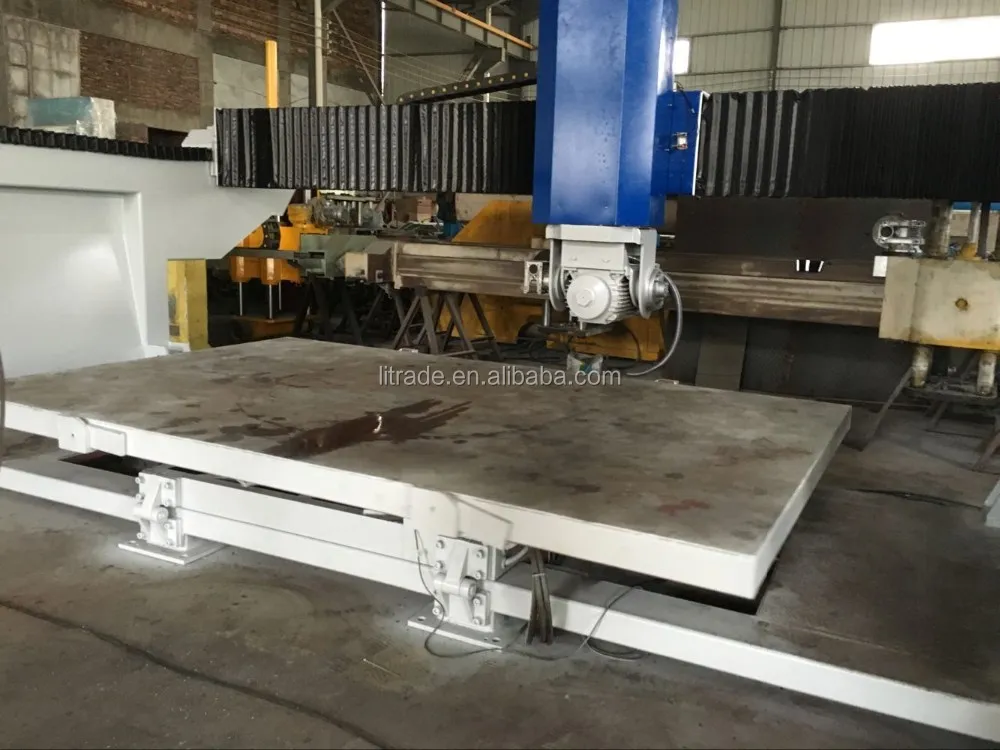

Worktable rotation is 0-90°, and table tilting is 0-85°. Once all the parameters are well set, it is not necessary to have workers watching on machine. It will automatically stop once it finishes the cutting. It is an ideal automation equipment of stone thin plate cutting machine.
High Quality, High Efficiency, Favorable Price
1.Cutting head rotate 90°,tiling 45°
2.Worktable rotate 45°, 90°, 180°,270°, 360°.
3.Worktable tilling 0-85°
4.The machine is made up of main motor, longitudinal slicing part, worktable assembly, electric control system, hydraulic system and so on.
5.The machine is automatically controlled by PLC (or manually controlled). The cutting size is input via computer terminal. Users can set the quantity, processing thickness, cutting thickness and feeding speed according to requirements.
6.It is equipped with infrared tool setting gauge, to accurately adjust the cutting size. The crosswise feeding speed and spindle speed is controlled by frequency converter. Users can adjust it as per requirement.
7.Once all the parameters are well set, it is not necessary to have workers watching on machine. It will automatically stop once it finishes the cutting. It is an ideal automation equipment of stone thin plate cutting machine.
We can ensure to offer you the good quality products in very reasonable and competitive price, also the full service all the time.
We have attended the stone fair in different countries, such as Russia, Egypt, Brazil, Vietnam, Turkey, India, etc. And you can always find our booth in Xiamen Stone Fair. Welcome to come and visit our company anytime.
