Stone Cutting Tool Diamond Granite Cutting Tool
- 100000 Piece / Pieces per Month
- xiamen port
- T/T Credit Card
- manual bow saws for kitchen,butchers,frozen meat,bone and hunters etc.,produced by Bolex Cutlery China
- butcher's hand manual meat bone frozen meat saws kitchen bow saws 16" 19" 24" 25" 23" produced by Bolex China
- BI-METAL HSS HACKSAW BLADE 12inch flexible hacksaw blade 300mm 18T 24T hacksaw blade
- HSS BIMETAL HACKSAW BLADE flexible hand hacksaw blade 12inch 300mm 18T 24TPI hacksaw blade double teeth hacksaw blade
- 12inch hacksaw blade 300mm hacksaw blade 18TPI 24TPI HSS BIMETAL HACKSAW BLADE hand hack saw blade
- hacksaw blade,flexible M2 HSS BI-METAL hacksaw blade,18T/24T 300mm high speed steel hacksaw blade
Product Details
Place of Origin: | Fujian, China | Brand Name: | Tian Jun | Model Number: | TJ |
Material: | Diamond | Type: | Hacksaw | Blade Length: | many sizes |
Dimensions: | 100~2000mm | Weight: | depends |
Product Description

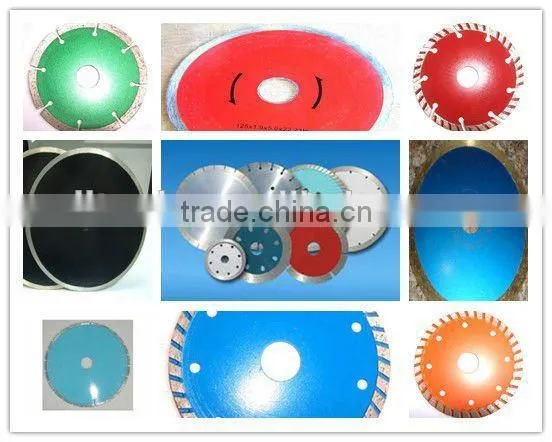

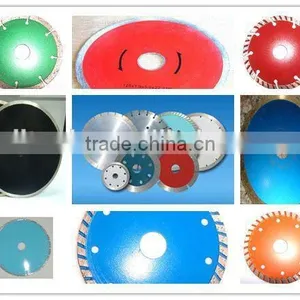

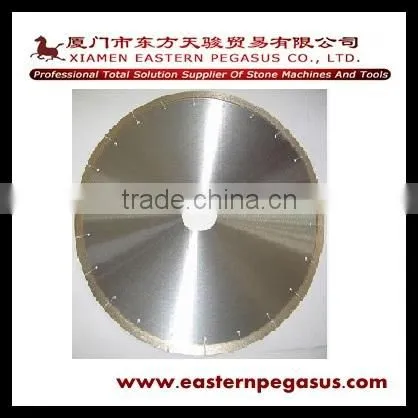

2015 stone diamond cutting tools, circular saw blade, saw blade
Diamond Segments and Circular Saw Blades for the Cutting of Block Granite, Sandstone, Slate, Kinds of Hard Stones with quartz, Suitable for Bridge Cutting Machine and Single Arm Machine.
Diameter (mm) | Segment Dimension×W×H(mm) L | Core Thickness (mm) | Segment Number | Application |
900 | 24×6.6/6.2×12/20 | 5.0 | 64 | For Trimming and Slabbing Granite & Marble etc. |
1000 | 24×7.4/6.8×12/20 | 5.5 | 70 | |
1100 | 24×7.4/6.8×12/20 | 5.5 | 74 | |
1200 | 24×7.5/7.0×12/20 | 6.0 | 80 | |
1300 | 24×8.0/7.4×12/20 | 6.0 | 88 | |
1400 | 24×9.0/8.4×12/20 | 6.5 | 92 | |
1600 | 24×9.2/8.6×12/20 | 7.3 | 108 | |
1800 | 24×10/9.4×12/20 | 7.3 | 120 | |
2000 | 24×10.4/9.6×15/20 | 8.0/9.0 | 128 | |
2200 | 24×11.5/10.5×15/20 | 9.0 | 132/136 | |
2500 | 24×12.5/11.5×20 | 9.5 | 140 | |
3000 | 24×13.1/12.2/11.5×20/30 | 10 | 160 | |
3500 | 24×13.8/13/12.2×20/30 | 10 | 180 |
The above specification is only for Reference, other or special specification can be ordered by customers.
Wet use only with sufficient water, Fast & Easy cutting, long life, perfect performance.
Noted:
Warning: Please use high frequency Silver Welded machine to make the brazing if you only order diamond segments, and not to use Fire to braze the segment to the saw blank, otherwise the diamond will be damaged then the cutting performance will be influenced(Reduced)!
Recommendation: Please put 1.0%-1.5% chemical material(Coolant Material) into the water to increase the cutting speed & life.
When place order for saw blades please inform the following:
Diameter (Inch or mm)
Inner Hole Size (Inch or mm)
Installation hole (If, need drawing)
Segment No. (how many pcs segment per blade)
Segment Size (L x W x H, if possible please inform Steel Core Thickness)
Use of saw blade (For Granite, or marble, or limestone, or Sandstone. or other material)
Quantity NO. (How many pcs, or how many sets segments)
Machine Powder/RPM (If possible)
Feed Speed (M/Minute)
Expected Cutting Depth (how many mm per time, forward or backward)
Coolant System (Water or Oil, how many liters/Minute, etc.)
Expected Shipping Date
Special Requirements (If)
If only order segments please inform the following:
Diameter (Inch or mm)
Segment No. (how many pcs segment per blade)
Segment Size (L x W x H, if better to inform the Steel Core Thickness)
Use of saw blade (For Granite, marble, limestone, Sandstone. or other material)
Quantity NO. (how many sets segments)
Machine Powder/RPM, Feed Speed, Normal Cutting Depth (If possible)
Expected Shipping Date
Special Requirements (If)
Products: different sizes of saw blades are offered here 100-4800mm.
The segments are served here as well.
QUALITY CONTROL:
We can ensure to offer you the good quality products in very reasonable and competitive price, also the full service all the time.
STONE FAIR:
We have attended the stone fair in different countries, such as Russia, Egypt, Brazil, Vietnam, Turkey, India, etc. And you can always find our booth in Xiamen Stone Fair. Welcome to come and visit our company anytime.
OUR CUSTOMERS COVER:
Thanks to the recognition and support of our customers, we have exported products to more than 65 different countries till now, and the number is increasing year by year.
OUR COMPANY:
We are located in the beautiful city, Xiamen, China. Established in March, 2006.
Contact US:
Please feel free to contact us if you get any question or new inquiry,
Also welcome to come and visit our company anytime for further business discussion!
