Online wholesale shop r6 aa plastic cap usine de fabrication de batterie

Product

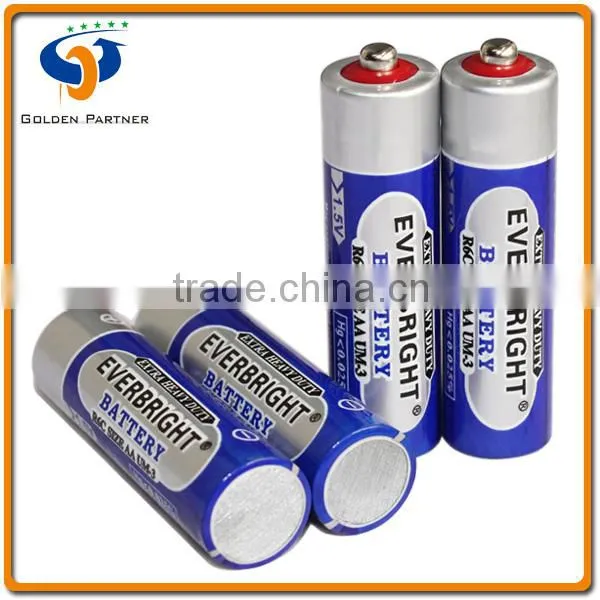

Online wholesale shop r6 aa plastic cap usine de fabrication de batterie

Chemical System

Zinc-Manganese dioxide (Zn/MnO2)

Standard

IEC

Nominal voltage

1.5 Volts

Average capacity

>235 mAh

Open-circuit voltage

1.70 Volts

Closed-circuit voltage

1.46 Volts

Diameter

13.50-14.50 MM

Height

49.20-50.50 MM

Average weight

12.35 Grams

Shelf life

24Months

Mercury

<0.025%

Battery material

Manganese dioxide, Zinc, Acetylene black, Grophite powder, Carbon rod, PVC, Tinplate bottom etc

Quality

With over 18 years' experience in battery business, we guarantee each single piece of our battery is reliable in quality.

Service

Efficient and excellent service is the basic requirement you can expect from us.

Responsibility

Your satisfaction with our batteries and our service is our responsibility.

Art.

No.

Type

Nominal Voltage
(V)

Shelf Life

(Month)

Test Conditions

Discharge Time

IEC Standard(IEC 60085-2:2007)

EVERBRIGHT

2332

R6

AA

UM3

1.5

24

20±2°C,3.9Ω, 24h/d, E.P.V. 0.9V

-----

≥45 Min

20±2°C,43Ω, 4h/d, E.P.V. 0.9V

1320 Min

≥1350Min

Shrink pack

4 PCS

Inner Box

24 PCS

Colorful carton

1,200 PCS

Gross weight

17.00KGS

Net weight

16.00KGS

Measurement

360X270X175MM

1

Zinc can

The zinc can is the negative terminal and anode material

2

Inserting the separator

The separator and the bottom paper are inserted to prevent battery short-circuit between the positive and the negative electrode.

3

Filling cathode material

The mixture of manganese dioxide, electrolyte and others are filled as the cathode material

4

Inserting carbon rod

The carbon rod for collecting electricity is inserted into the middle of the battery

5

Sealing

The plastic gasket for sealing is fitted to prevent leakage and water evaporation

6

Fitting tinplate bottom and metal jacket

The tinplate bottom and washer are placed on the bottom of zinc can and covered by metal jacket

7

Finished product

The finished battery is packed by shrink after inspecting on its voltage, current and appearance
