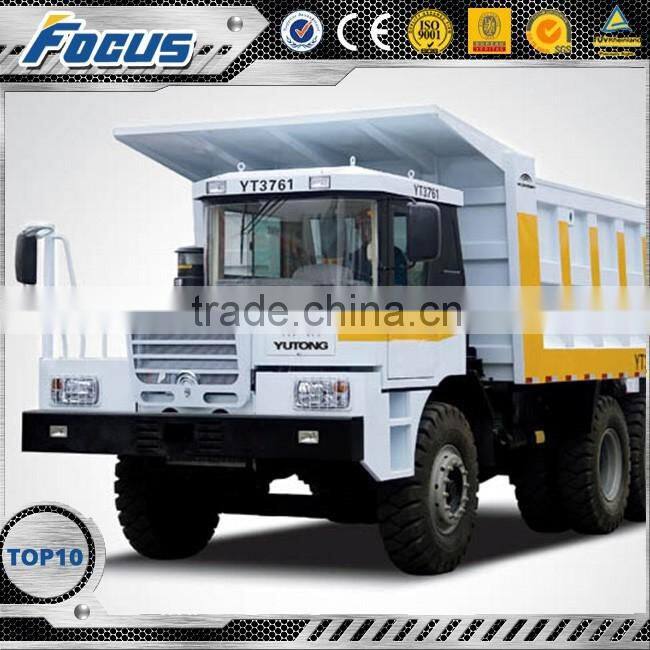

YT3761 Dump Truck 76t mining truck
Overall dimensions (L x W X H) |
8800×3400×3700 |
Wheelbase |
3600/1550 |
Front wheel distance |
2618 |
Middle and rear wheel distance |
2463 |
Standard cabin volume |
31 |
Rock cabin volume |
30 |
Overall kerb weight |
26000 |
Permissible loaded total mass |
76000 |
Max. speed |
46 |
Max. grade ability |
35% |
Min.turning diameter |
≤23 |
Min. ground clearance |
≥375 |
Approach angle |
≥30° |
Departure angle |
≥45° |
Motor model |
YC6M390(WD12.420) |
Rated power |
288/390 (283/385) |
Rated revolution |
2100(2200) |
Torque |
1650/1750(1300~1600rpm) |
Method of air intake |
Three-stage oil filter combined air filter + turbocharger |
Clutch |
Diaphragm spring 430 |
Transmission |
9JSD220 |
Front axle |
Special axle for 16t-level enhanced type mining truck |
Middle and rear axle |
Special axle for 30t-level enhanced type mining truck |
Front suspension |
Reinforced vertical leaf spring, dual-way cylinder shock absorber |
Rear suspension |
Reinforced balance suspension |
Cab |
Offset tilting floating anti-rollover cab |
Tyre |
14.00-24 28PR |
Service brake |
Dual-circuit brake |
Parking braking |
Air cutoff brake with energy-storage spring |
Auxiliary braking |
Engine exhaust brake |
Raising time |
≤28 |
Lowering time |
≤23 |
Max. inclination |
≤52 |
