Home > Products > Engraving machine > Stone Engraving machine ,cnc Engraving Machine
Stone Engraving machine ,cnc Engraving Machine
USD $6,700 - $11,500
/ Set
1 Set(Min.Order)
- 100 Set / Sets per Month
- Qingdao
- T/T Credit Card
You May Like
Product Details
Place of Origin: | Fujian, China | Brand Name: | Tian Jun | Model Number: | TJ-JZ |
Condition: | New | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
Granite Stone Engraving Machine (engraver, engraving machinery)
Product Introduction | |||||||
This series of models mainly used for heavy weight of the tile, bluestone, marble, granite, white marble, sandstone, such as a stone sculpture processing, category carved glass-cutting and engraving melting material. | |||||||
Feature | |||||||
1. X, Y, Z three-axis all the imported linear square orbit . | |||||||
2. X, Y, Z three-axis all have the waterproof, dustproof system | |||||||
3. Water cooling constant torque spindle with the imported bearing, high power, low tone. | |||||||
4. Adopt Taiwan transducer with stable output signals | |||||||
5. Fully sgielded,bending circuity, and imported electronic components. | |||||||
6. Adopt double drivers to drive y axis, motivity is more stronger | |||||||
7.Whole seamless steel structure,can load weight up to 1000kg | |||||||
Performance Features: | |||||||
1. Three axises adopt import linear orbit, two line sliding track, heavy loading, stable working, high precision, long lifetime . | |||||||
2. Whole seamless weld steel structure, not easy to distort, the table back lining is armor plate, good rigidity, the machine can bear 1MT weight at least. | |||||||
3. Constant power spindle and motor, high cutting capability, high efficiency. | |||||||
4. Well compatibility, compatible software CAD/CAM, such as Type 3, Artcam, Castmate, Artcuti, Coredraw. | |||||||
5. Double direction cutters cooling system can prolong the lifetime of using. | |||||||
6. High flexility, uneasy distorted cable and imported electronic components guarantee the stability of operating the machines. | |||||||
Technical Specifications | |||||||
Performance parameter | 9015 | 1218 | 1224 | ||||
X,Y Working area | 900x1500mm | 1200x1800mm | 1200x2400mm | ||||
Z Working area | 250mm | 250mm | 250mm | ||||
Table size | 1100x2000mm | 1400x2300mm | 1400x2900mm | ||||
Processing precision | 0.05mm | 0.05mm | 0.05mm | ||||
Reposition precision | 0.02mm | 0.05mm | 0.05mm | ||||
Table structure | aluminium | aluminium | aluminium | ||||
X,Y,Z structure | X,Y,Z ballscrew | X,Y,Z ballscrew | X,Y,Z ballscrew | ||||
Command | G CODE | G CODE | G CODE | ||||
Machine power | 2KW | 2KW | 2KW | ||||
Max processing speed | 6000mm/min | 6000mm/min | 6000mm/min | ||||
Max speed | 8000mm/min | 8000mm/min | 8000mm/min | ||||
Working voltage | AC380V/50Hz | AC380V/50Hz | AC380V/50Hz | ||||
Spindle power | 5.5KW | 5.5KW | 5.5KW | ||||
Spindle rotating speed | 0-18000rpm/min | 0-18000rpm/min | 0-18000rpm/min | ||||
Drive motor | Stepper | Stepper | Stepper | ||||
Voltage/Frequency | 380V/50HZ | ||||||
Operation system | PCI CARD control | PCI CARD control | PCI CARD control |

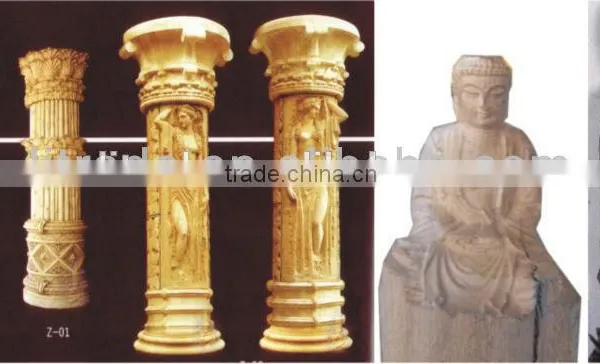

Engraving Machine Samples
Engraving machine tools
QUALITY CONTROL:
STONE FAIR:
OUR COMPANY:
OUR CUSTOMERS COVER:
Contact US:
Contact Us
- Xiamen Eastern Pegasus Co., Ltd.
- Contact nameCandy Huang
- Phone86-592-5551199
- AddressRoom 601, No.2, A3 Plot, Guanyinshan International Business Centre, Xiamen, China. Xiamen,Fujian
