Newest CSK4-NKW Electromagnetic Counter 4 Digit 0-9999 110V With Press Reset Function
Specifications
Newest CSK4-NKW Electromagnetic Counter 4 Digits1, Electromagnetic Digital Counter
2, 4 Digits (0-9999)
3, CE, Rohs
Sale! Newest CSK4-NKW Electromagnetic Counter 4 Digit 0-9999 110V With Press Reset Function
counter, counter meter, digital counter, mechanical counter, electrical counter, digit counter
-----0 to 9999 Hours----
----AC110V,220V----
----Digital Counter---
-Application:
CSK Series electromagnetic counter are used in Recording the total times of electronic pulse signal, and it’s widely applied in the counting area of petrol, industry, textile, mechanism, national defense, agriculture , food, printing, and etc. the features are new construction ,high precision, long life, stable performance ,widely use, and easy operation.
counter, counter meter, digital counter, mechanical counter, electrical counter, digit counter
-Specification:
Model | CSK4-YKW | CSK4-NKW |
Rated Voltage | AC: 110V, 220V; DC:12V,24V | |
Operating Voltage | 85%-110% of rated voltage | |
Count range | 1-9999 | |
Count speed | DC:20cps, AC: 10cps | |
Number of digits | 4 digits | |
Power consumption | DC:1.5W AC:2.5VA | |
Reset method | Manual reset ( with lock) | |
Ambient temperature | -20°C- 50°C | |
Humidity | ≤85% | |
Installation | Surface mounting | Flush mounting |
counter, counter meter, counter, counter meter, digital counter, counter, counter meter, digital counter, mechanical counter, electrical counter, digit counter

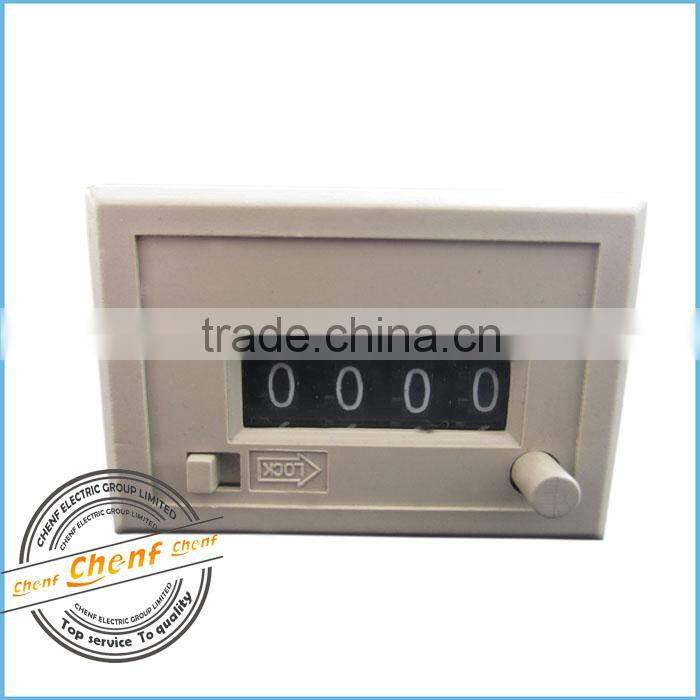

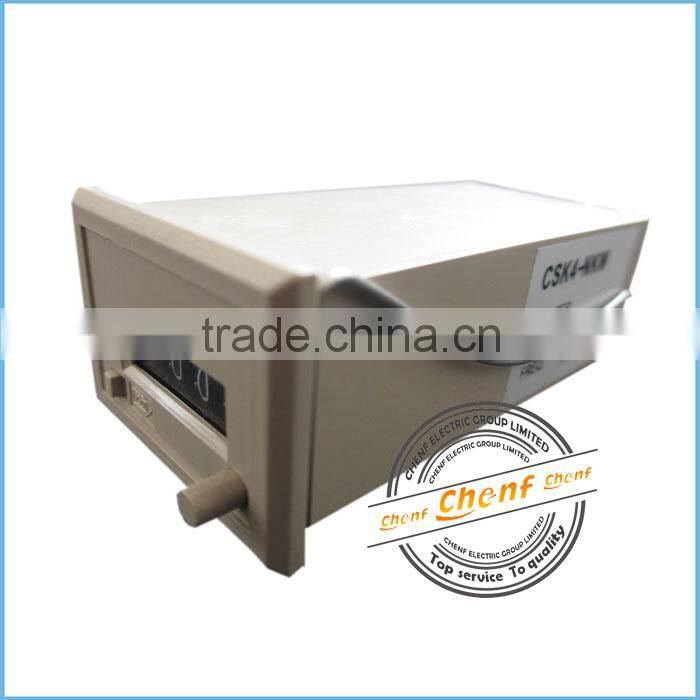

-Product Show:

-Note:
Pls show me the voltage you need when you make a order ( AC: 110V, 220V; DC:12V,24V).

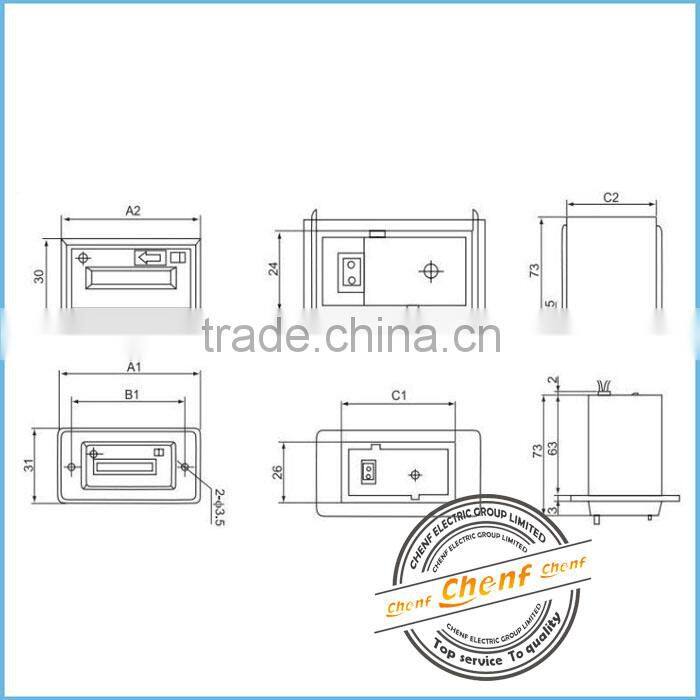

-Dimension:
Model | A1 | B1 | C1 | A2 | B2 |
CSK4-NKW | 60 | 50 | 36.5 | 40 | 35 |
counter, counter meter, digital counter, mechanical counter, electrical counter, digit counter
-More Features:
Model no.: CSK4-NKW
Number of digits: 4
Count range: 1~9999
Rated voltage: AC: 110V, 220V; DC:12V,24V
Tolerance of voltage: -15%~+10%
Power consumption: AC:3VA; DC:3.5W
Counting speed: AC:10CPS
DC:20CPS
Reset method: manual reset with lock
Mounting: flush mounting
Life:20,000,000 times
Test:AC-1 500V(50/60Hz) I minute(Dielectric)
Ambient temperature:-20°C- 50°C
Ambient humidity: ≤85%RH
