Heavy Duty Alkaline Super Dry Battery LR03

Heavy Duty Alkaline Super Dry Battery LR03 thumbnail-1
Heavy Duty Alkaline Super Dry Battery LR03 thumbnail-2
Heavy Duty Alkaline Super Dry Battery LR03 thumbnail-3
Heavy Duty Alkaline Super Dry Battery LR03 photo-1
Heavy Duty Alkaline Super Dry Battery LR03 photo-2
Heavy Duty Alkaline Super Dry Battery LR03 photo-3
US$ 1.05 - 1.12 MOQ: 100 Cartons
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
EVERBRIGHT
Model Number:
LR03 Size AAA AM4
Contact Supplier Request Quote Chat Now
Chongqing Golden Partner Imp. & Exp. Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
ShenzhenPort China
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Guangdong, China
Brand Name EVERBRIGHT
Model Number LR03 Size AAA AM4
Battery Type Zn/MnO2
Nominal Voltage 1.5V
Size AAA
Nominal Capacity >120MIN, 3.9 Ohm continuous discharge, End 0.9V

Heavy Duty alkaline  Super Dry Battery LR03

1.Basica information:

Product name

 Heavy Duty alkaline  Super Dry Battery LR03

Chemical System

Zinc-Manganese dioxide (Zn/MnO2)

Technology Criterion

IEC 60085-2:2007, 2006/66/EC

Certificate

ISO9001:2008,SGS,MSDS etc

Mercury & Cadmium

0%

Nominal voltage

1.5 Volts

Average capacity

>500 mAh

Open-circuit voltage

1.61 Volts

Closed-circuit voltage

1.55 Volts

Diameter

9.50-10.50MM

Height

43.30-44.50MM

Average weight

11.80 Grams

Shelf life

5 Years

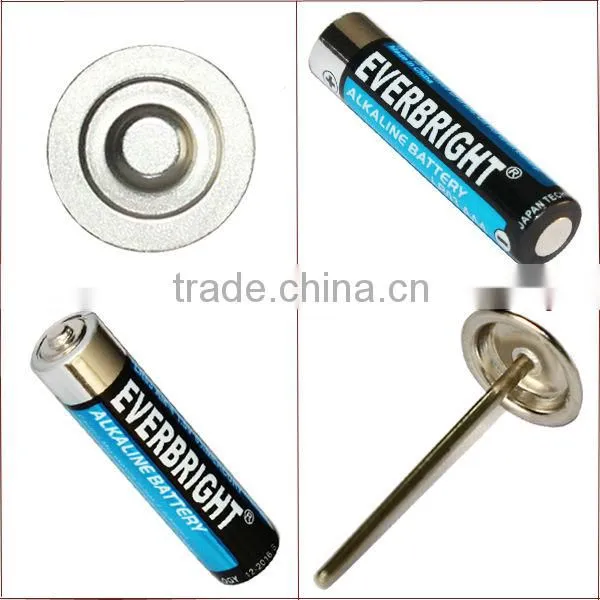

2.Detailed pictures below for your reference:


Heavy Duty alkaline Super Dry Battery LR03



3.Why choose our alkaline battery?



Quality

With over 18 years' experience in battery business, we guarantee each single piece of alkaline battery is reliable in quality.

Service

Efficient and excellent service is the basic requirement you can expect from us.

Responsibility

Your satisfaction with our battery and our service are our responsibility.





4.Technical data:



Art.

No.



Type





Nominal Voltage
(V)

Shelf Life

(Year)



Test Conditions

Discharge Time

IEC Standard(IEC 60085-2:2007)

EVERBRIGHT

4475





LR03

AA

AM-3



1.5





 5

20±2°C,3.9ohm, 24h/d, E.P.V. 0.9V

-----

≥120 Min

20±2°C,10ohm, 1h/d, E.P.V. 0.9V

300 Min

≥400 Min



5.Quality control & performance:

1)Our alkaline battery is made of high quality raw materials which have been inspected strictly before usage.



2)Automatically computer controlled production lines effectively avoid artifical influence in production, strictly executed the quality management system to insure each alkaline battery up to IEC standard.



3)Our alkaline battery has the characteristics of strong energy,high capacity, long-durability, super leak-proof, good performance of continuous discharge, long time of intermittent discharge.

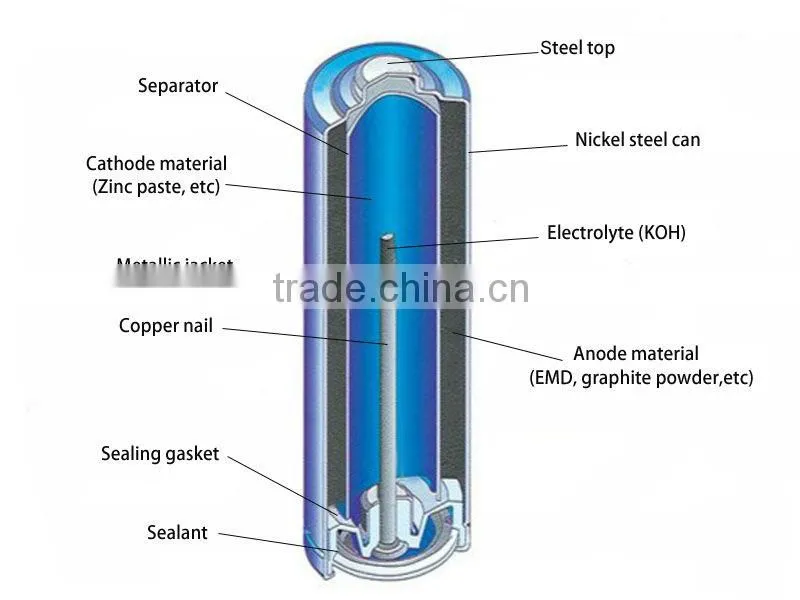

6.Internal Structure:

Heavy Duty alkaline Super Dry Battery LR03

7. Lead time of batteries:

Heavy Duty alkaline Super Dry Battery LR03

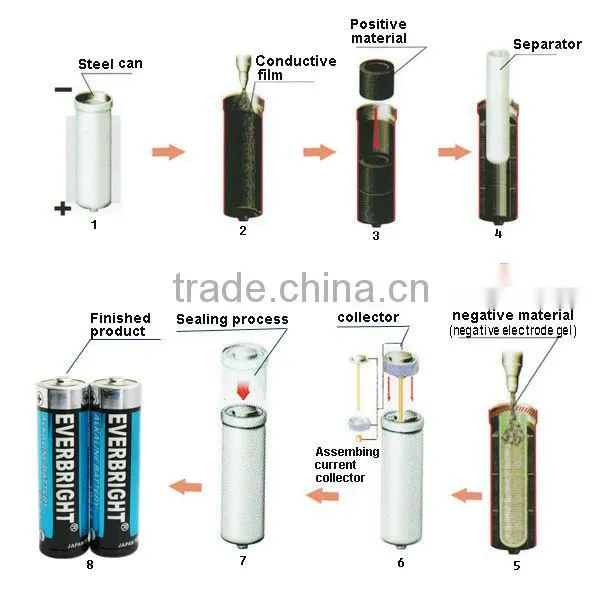

8.Product procedure:

Heavy Duty alkaline Super Dry Battery LR03

1

Steel can

The steel can is the positive container,which is the negative connection

2

Conductive film spraying

The conductive materials are sprayed to form the conductive film on the surface of the positive can for good electrical conductivity

3

Positive materials insertion

The positive mixtureis a compressed paste of manganese dioxide with carbon powder added for increased conductivity, which are inserted into the positive can

4

Separator insertion

The separator is inserted to prevent mixing of the positive and negative materials and short-circuiting.

5

Negative materials filling

The negative materials are composed of zinc powder in a gel containing the potassium hydroxide electrolyte, which are filled in

6

Current collector insertion

The assembling current collector is inserted to form the negative electrode

7

Sealing process

The battery is sealed to prevent leakage and electrolyte creepage

8

Finished product

The batteries are packed by shrink after inspecting the voltage, current and appearance

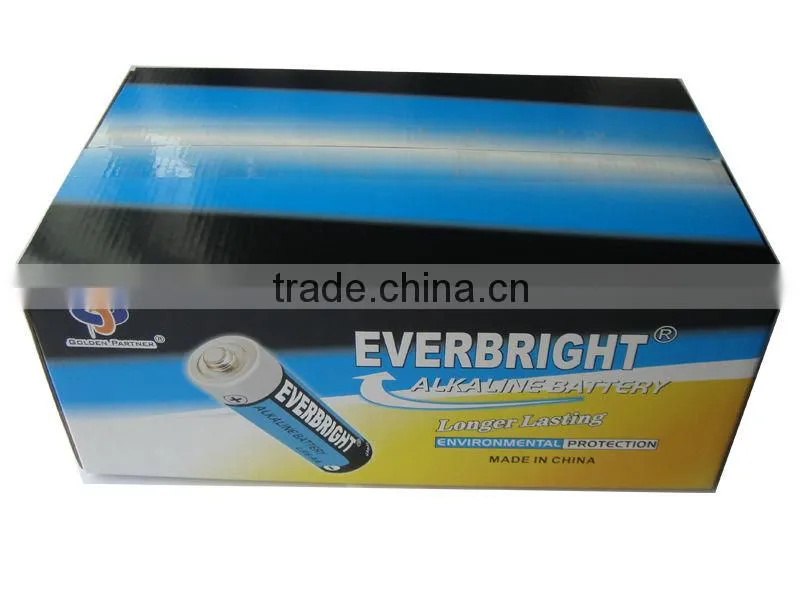

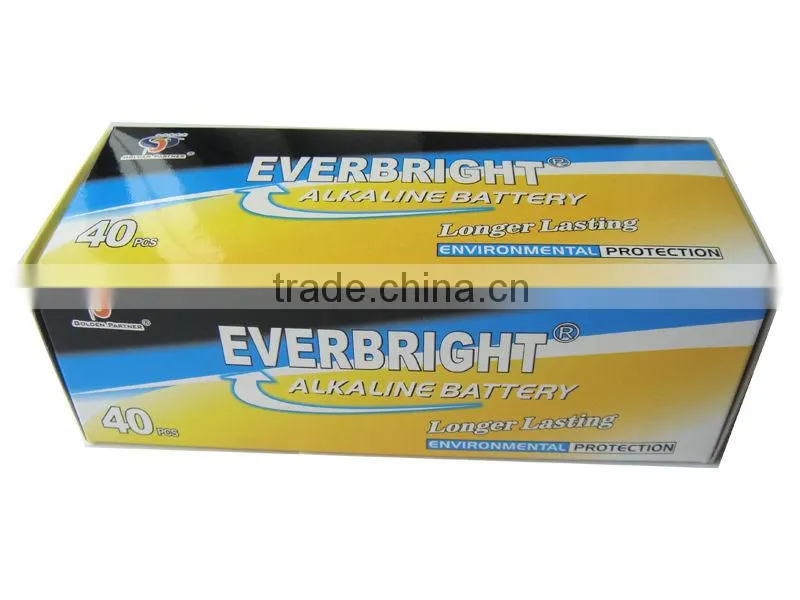

9.Package details:



Shrink pack

2 PCS

Inner Box

40 PCS

Colorful carton

960 PCS

Gross weight

12.50KGS

Net weight

11.50KGS

Measurement

300X185X120MM



Heavy Duty alkaline Super Dry Battery LR03

  Heavy Duty alkaline Super Dry Battery LR03

10.Applications of aaa alkaline battery:

 Heavy Duty alkaline Super Dry Battery LR03

Applications: Remote control, MP3, MP4, clocks, toys, audio appliances, radio, flashlight, camera, shaver etc.
