CNC Multi Function Machine LOYD-CNC Machine, Engraving, Machining Center
US$ 80,000 - 130,000
MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Type:
Stone Cutting Machine
Use:
Other, granite,marble,travertine and other material
Payment & Shipping
Payment Methods:
Port of Shipment:
Guangzhou
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
LOYD-CNC Machine,cnc Engraving, Cnc Grinding, Cnc MillingUS$ 80,000 - 130,000MOQ: 1 Set -
TJYD Multi Function Stone CNC Machining CentreUS$ 80,000 - 130,000MOQ: 1 Set
-
TJYD High Automatic Stone Cnc MachineryUS$ 80,000 - 130,000MOQ: 1 Set
-
China Golden Supplier for Good Quality Cnc MachiningUS$ 80,000 - 130,000MOQ: 1 Set
-
Highly Automatic Stone Equipement Cnc Milling MachineUS$ 80,000 - 130,000MOQ: 1 Set
Condition
New
Type
Stone Cutting Machine
Use
Other, granite,marble,travertine and other material
Place of Origin
Guangdong, China
Brand Name
TIANJUN
Model Number
LOYD
After-sales Service Provided
Engineers available to service machinery overseas
Specifications
1.for processing stone and ther material2.max.x axis stroke:5000mm
3.max.y axis stroke:2000mm
4.max.z axis stroke:350mm
LOYD- CNC CENTER, machine for drilling, grinding, engraving, milling ect, CNC Machine
CNC Center Main Advantage:
CNC profiling / engraving machine
Countertop edge profiling machine
Full automatic stone processing machine
CE certificate
Italy Motorized spindle
Taiwan Leadscrew, Japan servo
German leadscrew guide ways
Japanese Mitsubishi Electronics Technical
CNC series machine technical datas:
| Model | LOYD-2015 | LOYD-2515 | LOYD-3015 | LOYD-3020 | LOYD-4020 | LOYD-5020 | |||
| X axis stroke(mm) | 2000 | 2500 | 3000 | 3000 | 4000 | 5000 | |||
| Y axis stroke(mm) | 1500 | 1500 | 1500 | 2000 | 2000 | 2000 | |||
| Z axis stroke(mm) | 350 | 350 | 350 | 350 | 350 | 350 | |||
| wheel-holder spindle mator power (kw) | 11 | 11 | 11 | 11 | 11 | 11 | |||
| Rotation speed of the tool-holder spindle (r.p.m) | 1-10000 | 1-10000 | 1-10000 | 1-10000 | 1-10000 | 1-10000 | |||
| Automatic tool-change | IS0-40 | IS0-40 | IS0-40 | IS0-40 | IS0-40 | IS0-40 | |||
| Tool-store (pcs) | 10r+10r | 10r+10r | 10r+10r | 12r+12r | 12r+12r | 15r+15r | |||
| Vacuum pump (m3/h) | 40 | 40 | 40 | 50 | 60 | 65 | |||
| Max thickness of machinable piece (mm) | 200 | 200 | 200 | 200 | 200 | 200 | |||
| Automatic centralized lubrication | grease | ||||||||
| Push-button service with electronic handwheel | EHDW-BA6S-IM | ||||||||
| Water requirement(L/MIN) | 30 | 35 | 35 | 40 | 45 | 50 | |||
| Compressed air pressure (Bar) | 8 | 8 | 8 | 8 | 8 | 10 | |||
| Max.total absorbed power (kw) | 13 | 13 | 13 | 13 | 13 | 15 | |||
| Overall dimension:L*W*H(m) | 4.2*2.7*2.7 | 4.7*2.7*2.7 | 5.2*2.7*2.7 | 5.2*3.2*2.7 | 6.2*3.2*2.7 | 7.2*3.2*2.7 | |||
| Approximatic total machine weight (kg) | 3000 | 3500 | 3500 | 4000 | 4500 | 5000 | |||
Our products are updated all the time, all the technical parameter and shape are basde on the real products.
Tel: 0086-592-5551199
CNC machining final products:

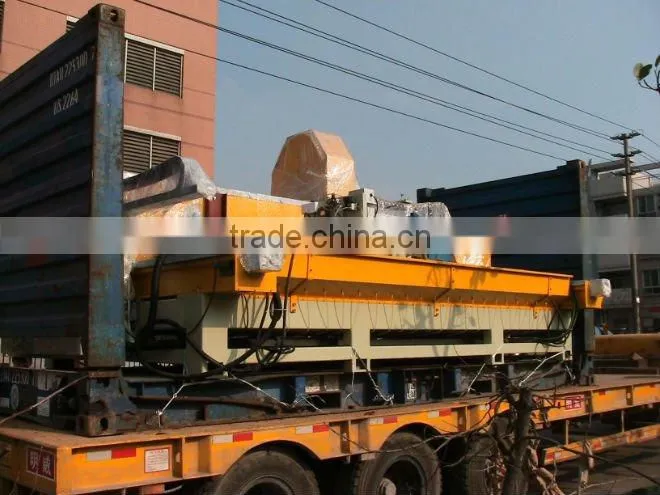

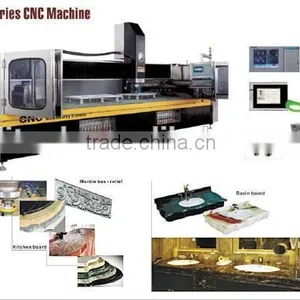

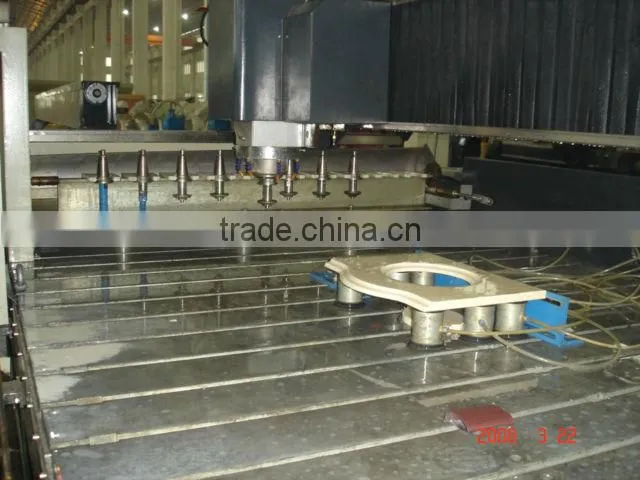

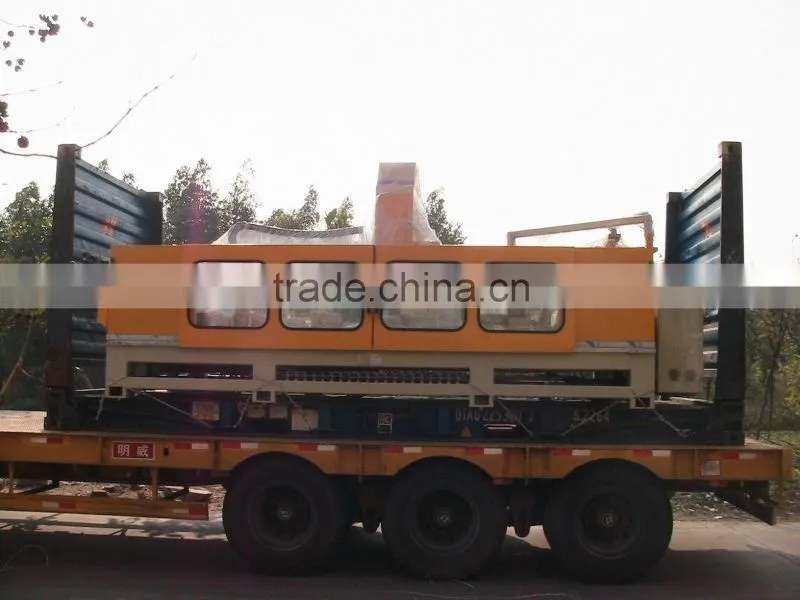

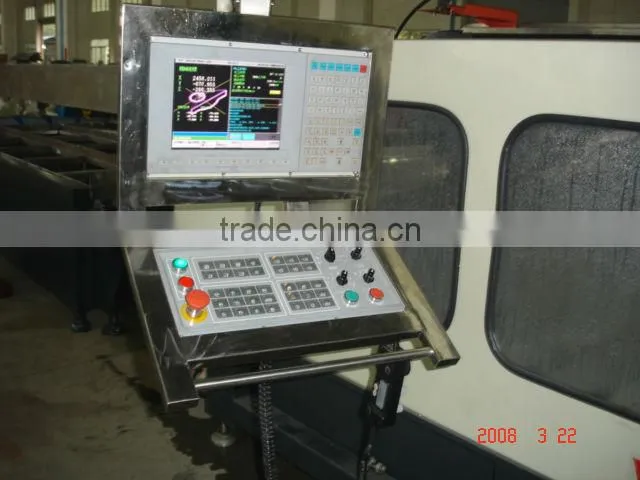

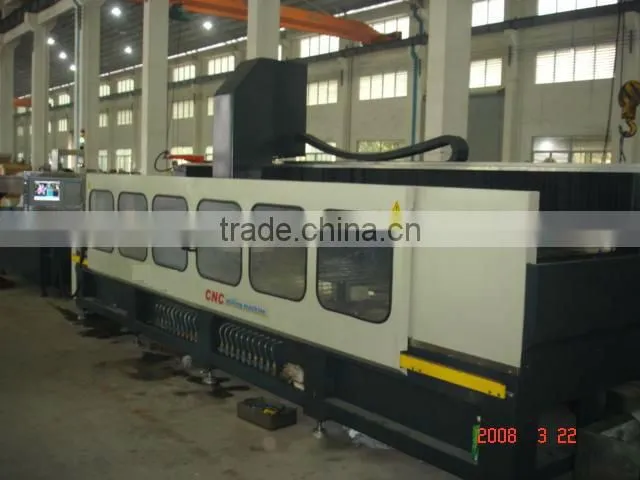

CNC machine photos:

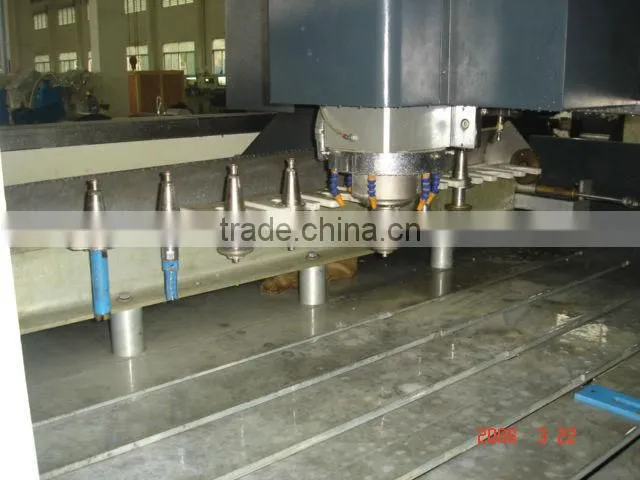

CNC machine tools:
