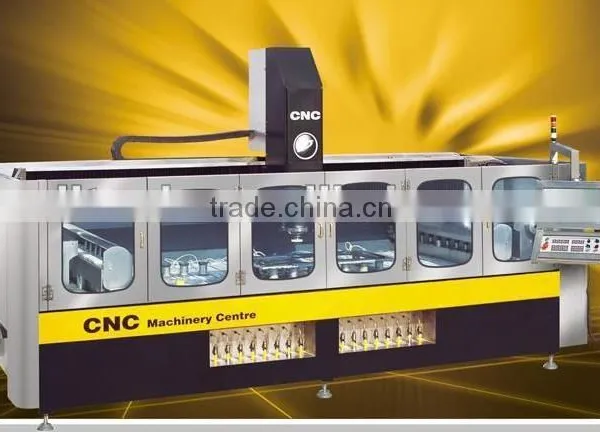

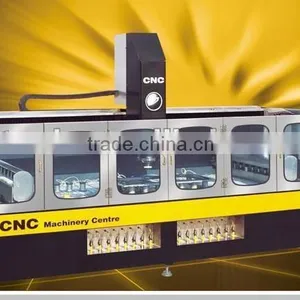

CNC Stone Machine, Cnc Center, Cnc Processing Machiny, Cnc Machining

Name: CNC Stone Machine, Cnc Center, Cnc Processing Machiny, Cnc Machining
Brand: TIANJUN
SKU: 119602607

US$ 50,000 - 120,000 MOQ: 1 Set

Key Specifications

Place of Origin:

Fujian, China

Brand Name:

TIANJUN

Model Number:

LOYD CNC MACHINING

Xiamen Eastern Pegasus Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

China

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Fujian, China

Brand Name TIANJUN

Model Number LOYD CNC MACHINING

After-sales Service Provided Engineers available to service machinery overseas

Specifications

CNC MACHINING
1.edge cut and polish machine
unter top processing machine
3.auto cut,edge polishing
4.ce certificate

LOYD- CNC CENTER, machine for drilling, grinding, engraving, milling ect, CNC Machining

CNC Center Main Advantage:

CNC profiling / engraving machine
Countertop edge profiling machine
Full automatic stone processing machine
CE certificate

Italy Motorized spindle
Taiwan Leadscrew, Japan servo
German leadscrew guide ways
Japanese Mitsubishi Electronics Technical

CNC series machine technical datas:

Model	LOYD-2015	LOYD-2515	LOYD-3015	LOYD-3020	LOYD-4020	LOYD-5020
X axis stroke(mm)	2000	2500	3000	3000	4000	5000
Y axis stroke(mm)	1500	1500	1500	2000	2000	2000
Z axis stroke(mm)	350	350	350	350	350	350
wheel-holder spindle mator power (kw)	11	11	11	11	11	11
Rotation speed of the tool-holder spindle (r.p.m)	1-10000	1-10000	1-10000	1-10000	1-10000	1-10000
Automatic tool-change	IS0-40	IS0-40	IS0-40	IS0-40	IS0-40	IS0-40
Tool-store (pcs)	10r+10r	10r+10r	10r+10r	12r+12r	12r+12r	15r+15r
Vacuum pump (m3/h)	40	40	40	50	60	65
Max thickness of machinable piece (mm)	200	200	200	200	200	200
Automatic centralized lubrication	grease
Push-button service with electronic handwheel	EHDW-BA6S-IM
Water requirement(L/MIN)	30	35	35	40	45	50
Compressed air pressure (Bar)	8	8	8	8	8	10
Max.total absorbed power (kw)	13	13	13	13	13	15
Overall dimension:LWH(m)	4.22.72.7	4.72.72.7	5.22.72.7	5.23.22.7	6.23.22.7	7.23.22.7
Approximatic total machine weight (kg)	3000	3500	3500	4000	4500	5000
