Block Machine, Marble Gang Saw Machine
US$ 135,000 - 160,000
MOQ: 1 Unit
Key Specifications
Get Latest Price
Place of Origin:
Fujian, China
Brand Name:
TIANJUN
Model Number:
TJYH-80
Payment & Shipping
Payment Methods:
Port of Shipment:
XIAMEN
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Marble Frame Saw Machine,marble Block Cutting MachineUS$ 140,000 - 160,000MOQ: 1 Set -
2014 New Competitive Marble Cutting Machine PriceUS$ 140,000 - 160,000MOQ: 1 Set
-
With ISO & CE, Granite and Marble Cutter, Stone Cutting MachineUS$ 24,000 - 28,000MOQ: 1 Set
-
Stone Cutting Machine, Diamond Wire Saw Machine, Machine for Arc Shaped CuttingUS$ 35,000 - 36,000MOQ: 1 Set
-
Granite Stone Cutting Machine, Block CutterUS$ 250,000 - 260,000MOQ: 1 Unit
Place of Origin
Fujian, China
Brand Name
TIANJUN
Model Number
TJYH-80
After-sales Service Provided
Engineers available to service machinery overseas
Specifications
80pcs cutting slides machine for marble blockMax. cutting block: 3.25x2x2m
Strokes per minute: 85rpm
Main motor power: 130kw

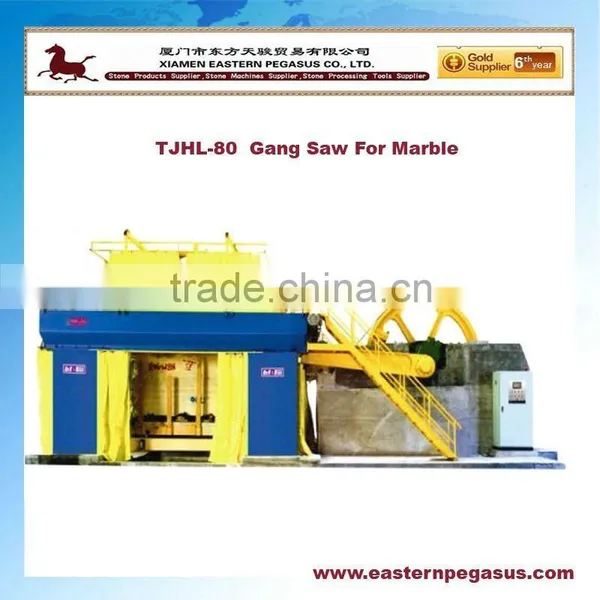

2013 NEW Frame Saw, Marble Gang Saw Machine,Block Cutting
Used for cutting big size of marble block, get high efficient, and the after cutting slab surface can be smooth, easier for polishing.
Machine technical datas:
| Name | Unit | TJYH-80 | ||
| Max. processing size | mm | 3250*2000*2000 | ||
| No. of saw blade | pcs | 80 | ||
| Saw feeding speed | mm/h | 0-480 | ||
| Saw frame reciprocating frequency | t/min | 80-85 | ||
| Saw frame stroke | mm | 800 | ||
| Flywheel diameter | mm | 3300 | ||
| Flywheel Weight | t | 10 | ||
| Main Motor power | kW | 110 | ||
| Total Power | kW | 126.5 | ||
| Overall Dimensions | mm | 13600*5700*6200 | ||
| Total weight | t | 60 | ||

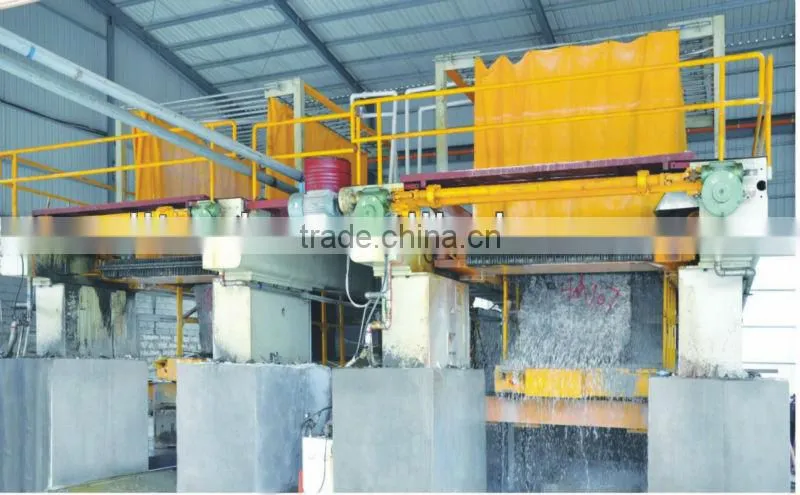

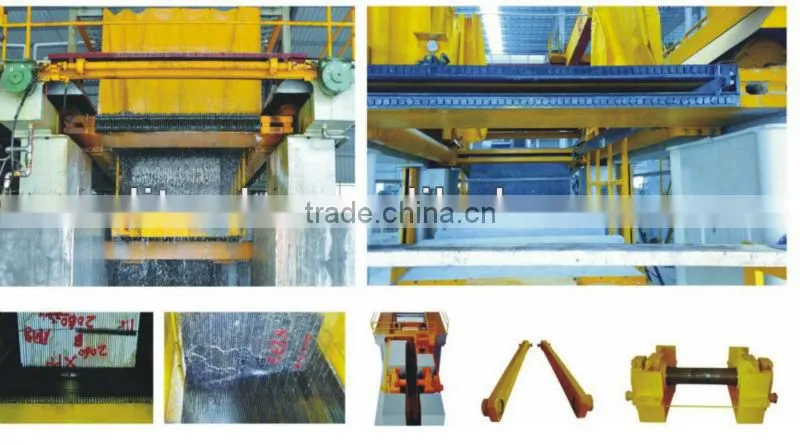

Marble gang saw machine photos:
Noramlly, as the local cutting experience, by using the gang saw for cutting marble block, will be 12-20 hours for cutting one block. Depends on the stone hardness, the operation way.
QUALITY CONTROL:
STONE FAIR:
OUR CUSTOMERS COVER:
OUR COMPANY:
Contact US:
