Hot Sell AC 110V 220V Digital Electronic Ammeter Voltmeter

Specifications

AC 110V 220V Digital Electronic Ammeter Voltmeter
1, AC80-300V, 0-100A
2, Large LCD Display
3, CE, Rohs

Hot Sell AC 110V 220V Digital Electronic Ammeter Voltmeter





-----Volt Amp Meter-----

-----AC80-300V, 100A----

----with LCD Display----

AC100-300V AC 0-100A Led volt amp meter voltage meter current meter ampere panel meter voltmeter ammeter digital





-Brief Introduction:

DL69-2048 (5135) type digital multi-function meter respectively shown by measuring ac voltage and amper at the same time, can be read the data of active power, apparent power and power factor clearly.

AC100-300V AC 0-100A Led volt amp meter voltage meter current meter ampere panel meter voltmeter ammeter digital

-Technical Data:

1. The measurement accuracy: 1% plus or minus 2 words
1. Display: display voltage and current four red 0.31 inch LED digital tube, active power, apparent power and power factor five red 0.31 inch LED digital tube.
3. The measuring range: ac voltage: AC80-300;  100.0 A
4. The alternating current: AC0-100.0 A, measuring less than 10 A current display resolution of 0.01 A, more than 10 A current resolution of 0.1 A range of automatic conversion (decimal point automatic shift)
5. Active power: measure the voltage AC80-300v,  0-30000w ) to start measuring power 3 w normal!!!
6. Apparent power (measure the voltage AC80-300v,  0-30000 w) to start measuring power 3 w normal!!!Power factor: 1.000 to 0.000
7. Measurement speed: about 2 times per second
8. The contour size: 79 (long) *43 (weight/ high) * 42 mm (thickness)
9. According to pack size: 76 * 39 mm (embedded installation)
10. The instrument is only suitable for pure ac mains supply of 50-60 hz, cannot be used for square wave, sine wave of the inverter output and sine wave circuit measurement, otherwise the instrument will be permanently damaged!!!

AC100-300V AC 0-100A Led volt amp meter voltage meter current meter ampere panel meter voltmeter ammeter digital

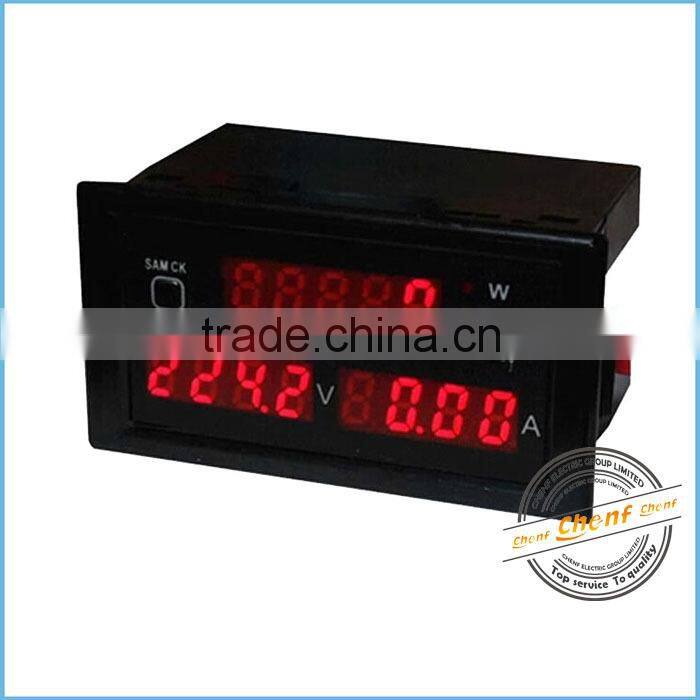

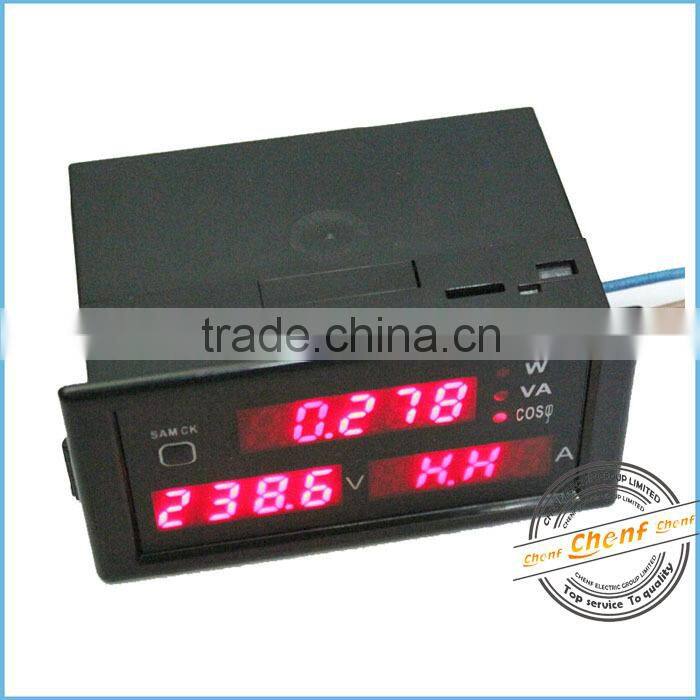

-Product Show:

AC100-300V AC 0-100A Led volt amp meter voltage meter current meter ampere panel meter voltmeter ammeter digital

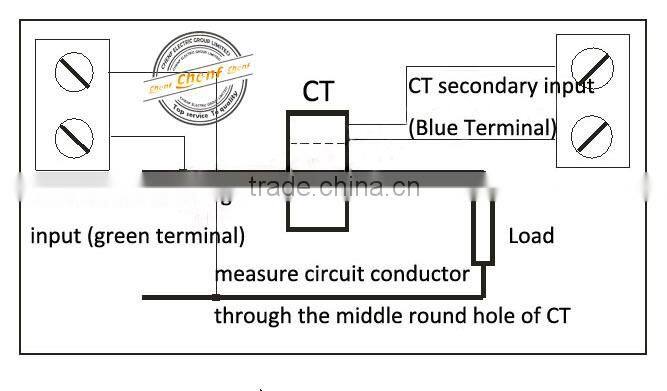

-Connection:



The Green Terminal should connect with voltage measurement;

The Blue Terminal should connect with CT secondary input.

AC100-300V AC 0-100A Led volt amp meter voltage meter current meter ampere panel meter voltmeter ammeter digital
