Specifications
BaoyaSDP1100 Best Selling Fire Fighting Equipment RespiratorPositive Pressure Compressed-air Breathing Apparatus Safety prodt
Baoya SDP1100 Best Selling Fire Fighting Equipment Respirator Safety product
Positive Pressure Compressed-air Breathing Apparatus
2L/3L/ 4.7L/6.8L/9 L
Detailed Product Description

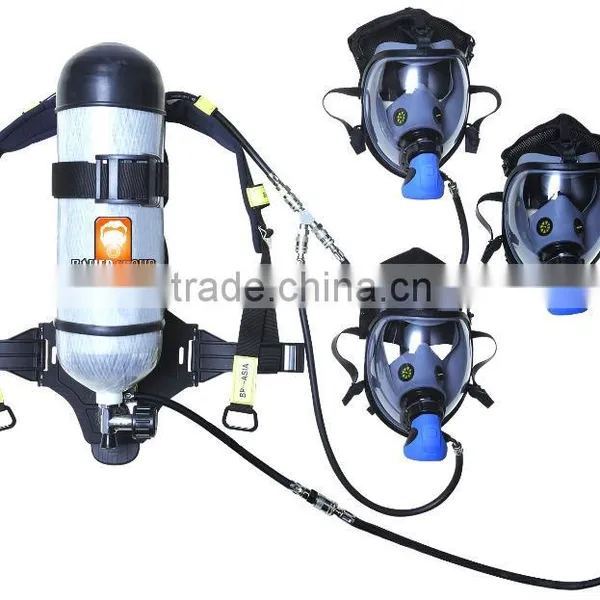

SDP Positive Pressure Compressed-air Breathing Apparatus is a kind of isolated breathing protection apparatus. It provides breathing protection for users in the environment filled with poisonous air or lacking in oxygen. When it is used normally, the pressure inside the veil is always higher than the outside environment. It prevents the poisonous air from entering the veil, so as to protect the users. This product can be used in fire fighting, petroleum, chemical, metallurgy and electric power industry and so on. Standard: according with GA124-2004 Positive Pressure Compressed-air Breathing Apparatus standard.
2L Cylinder /3L Cylinder/ 4.7L Cylinder/ 6.8L Cylinder/ 9L Cylinder:
1. Carbon Fiber compound cylinder;
2. Internal tank made by light aluminium alloy materials with high strength, corrosion-proof.
Screw Thread of the mouth: M18*1.5;
Technical parameter
Cylinders Capacity |
Cylinders Working Pressure |
supply air Max amount |
Breathing Resistance |
Alarming Pressure |
Weight |
Service Lifetime |
|
exhalation |
inspiration |
||||||
3.0L |
≤30MPa |
≥1000L/min |
≤1000Pa |
≤500Pa |
5.5±0.5M Pa |
6.2KG |
30 minutes |
4.7L |
≤30MPa |
≥1000L/min |
≤1000Pa |
≤500Pa |
5.5±0.5M Pa |
7.1KG |
47 minutes |
6.0L |
≤30MPa |
≥1000L/min |
≤1000Pa |
≤500Pa |
5.5±0.5M Pa |
13.1KG |
60 minutes |
6.8L |
≤30MPa |
≥1000L/min |
≤1000Pa |
≤500Pa |
5.5±0.5M Pa |
7.5KG |
68 minutes |
9.0L |
≤30MPa |
≥1000L/min |
≤1000Pa |
≤500Pa |
5.5±0.5M Pa |
9.1KG |
90 minutes |
Note: the using period is calculated by the medium labor strength and 30L per minute of the breathing amou
BP-ASIA Backboard:
1. Designed according to bodily shape; according with human engineering principle, national design patent, Patent NO. 200630040956.4
2. So far, the lightest backboard; the weight only 0.685kg;
3. Great flexibility, It can be bend to 90 degree, and wont break.
PR-1100 Relief Reducer:
1. Adopting German technique; life-span can reach 15years; highly reliability and stability;
2. The biggest amount of air feed is beyond 1000L per minute; making an assurance of users breathing;
3. Reducing the high pressure air in the cylinder to middle pressure. Have Relief Valve to ensure the users safety;
PG-S Pressure Gauge & Alarm
1. Putting the Alarm and Pressure Gauge in front of chest, so that the user can read pressure the easily hear the alarm sound;
2. The fluorescent function of pressure meter helps users to read the pressure data in the sombrous light;
