Specifications

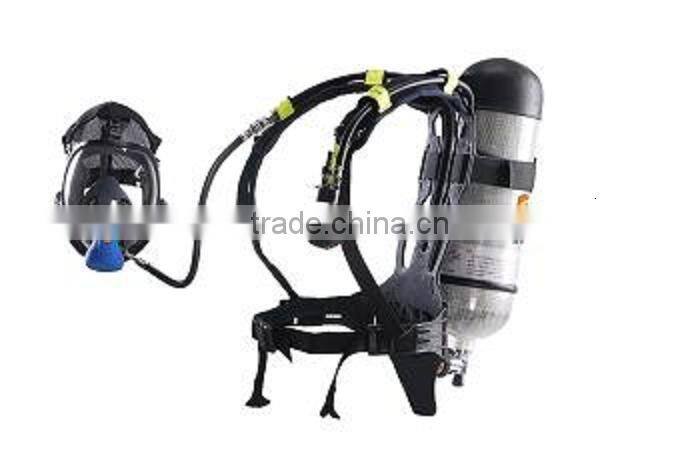

Baoya SDP1100 RescueSCBAFirefighting SCBA
Full Face Mask SCBA
All strap in Kevlar
3 way manifold
Baoya SDP1100 Hot Selling Respirator
Users could choose 3L/4.7L/6.8L/9L carbon fiber composite cylinder
And 6.8L steel cylinder(marine)
Technical parameter
Cylinders Capacity |
Pressure |
Air Flow |
Breathing Resistance |
Alarming Pressure |
Weight |
Service time |
|
exhalation |
inhalation |
||||||
3.0L |
≤30MPa |
≥1000L/min |
≤1000Pa |
≤500Pa |
5.5±0.5M Pa |
6.2KG |
30 minutes |
4.7L |
≤30MPa |
≥1000L/min |
≤1000Pa |
≤500Pa |
5.5±0.5M Pa |
7.1KG |
47 minutes |
6.0L |
≤30MPa |
≥1000L/min |
≤1000Pa |
≤500Pa |
5.5±0.5M Pa |
13.1KG |
60 minutes |
6.8L |
≤30MPa |
≥1000L/min |
≤1000Pa |
≤500Pa |
5.5±0.5M Pa |
7.5KG |
68 minutes |
9.0L |
≤30MPa |
≥1000L/min |
≤1000Pa |
≤500Pa |
5.5±0.5M Pa |
9.1KG |
90 minutes |
Note: the using period is calculated by the medium labor strength and 30L per minute of the breathing amount.
BP-ASIA Backboard:
1. Designed according to bodily shape; according with human engineering principle, national design patent,
Patent NO. 200630040956.4
2. So far, the lightest backboard; the weight only 0.685kg;
3. Great flexibility, It can be bend to 90 degree, and wont break.
Gas cylinder and gas cylinder valve:
1. Carbon fiber composite cylinder, high intensity, light weight. corrosion-proof; excellent in cushion effect.
2. Y-type auto-locking structure, in order to avoid opening the gas cylinder valve because of the misoperation.
3. Rubber cover to protect the cylinder;
DV-D PLUS Regulator:
1. Hand-hold style. Small volume, providing broad eyesight for the users.
2. Air flow ≥500L/min
3. Connection by 360 degree, operating easily and quickly.
PR-1100 Relief Reducer:
1. Adopting German technique; life-span can reach 15years; highly reliability and stability;
2. The biggest amount of air feed is beyond 1000L per minute; making an assurance of users breathing;
