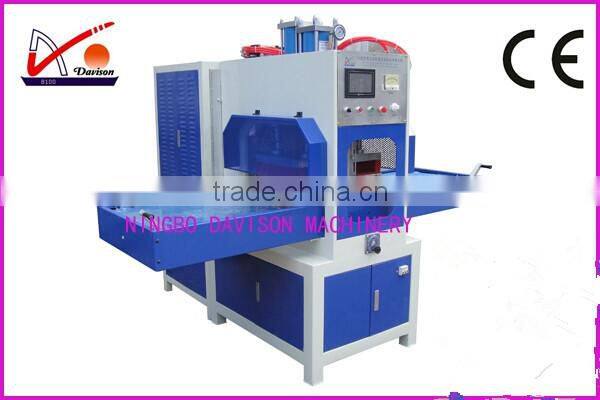

high frequency welding & cutting machine for upper shoes
Characteristics:
1. It adopts PLC and touch screen control to make the work precisely, and reduces operation difficulty.
2. Automatic slide table makes lower reject ratio and reduces labor intensity.
3. It requires low skill for operators. The operator can use it after short training.
4. The surface is perfect without seam, and the welding is strong, stiff and smooth.
5. It has big pressure, so it can cut the wasted edge in a short time after welding. So it makes the edge and pattern smooth and perfect.
6. Left & right slide table design, sometimes, 1 mold can be shared. So it saves the expensive mold cost.
7. It adopts high quality components, stable and low failure rate.
8. It adopts sensitive spark protection device. When it sparks, it will cut off the high frequency oscillation power, protect mold and material.
9. Without high frequency leakage because it adopts good shield device.
10. The mold can be changed easily and quicky because it adopts hanging mold device.
11. Safe & rational design to make sure the slide table will not hurt hands.
12. Special & strong head: Special design makes the pressure equably to make the products perfectly.
13. Heating device: It adopts heating device to increase the welding area for special material PET, PU, ETC.
14. Output power tuner: It can be adjusted according to different material to make sure the products can be made perfectly.
Applications:
1. Welding without seam for sports shoes cover, packing for toothbrush etc.
2. Synthetic leather
3. Sun visor
4. Material covered with fabric
5. Blister with paper card
6. Trademark, watchband, leather belt, CD bag,
7. PET, APET, PETG, PP, PET, EVA etc
8. phone cover
Specifications:
Output power |
25KW |
15KW |
12KW |
Frequency |
27.12MHz |
27.12MHz |
27.12MHz |
Input power |
48KVA |
28KVA |
20KVA |
Voltage |
AC380V |
AC380V |
AC380V |
Electron tube |
8T25RA |
8T85RB |
Toshiba E3130 |
Rectifier |
Be ordered |
Be ordered |
Be ordered |
Dimension |
2920*2650*2350mm |
3150*2250*2100mm 2350*2130*2050mm |
|
Upper electrode |
600*400 |
550*350 |
550*350 |
Lower electrode |
600*400 |
550*350 |
550*350 |
Distance between two electrodes |
100mm |
100mm |
100mm |
Pressure style |
Air to oil |
Air to oil |
Air to oil |
Slide table |
Automatic |
Automatic |
Automatic |
Output power tuner |
Electric |
Manual |
Manual |
It can be selected to install double output power tuners.
Packing : wooden box
contact: Sunny.Fan
skype:sunny.fan5
phone: +86 188 6866 7165
