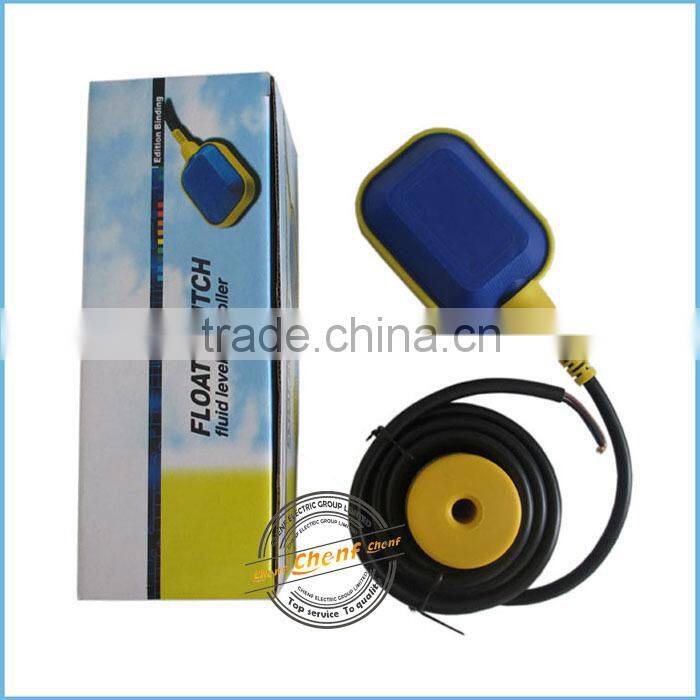

Hot Sell Newest Water Level Mini Float Switch 250V With 3M Cable

Hot Sell Newest Water Level Mini Float Switch 250V With 3M Cable photo-1
US$ 0.1 - 10 MOQ: 100 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Zhejiang, China
Brand Name:
Chenf
Model Number:
CFQ-M15-2
Payment & Shipping
Payment Methods:
Port of Shipment:
Ningbo or Shanghai
Delivery Detail:
Delivery time depends on order quantity.
Place of Origin Zhejiang, China
Brand Name Chenf
Model Number CFQ-M15-2
Media Type Liquid
Operating Temperature 0 degee to 80 degree
Flow Rate ≥100.000 times

Specifications

Newest Water Level Mini Float Switch 250V with 3M Cable
1, Liquid Controller float switch
2, 10A, 3m, 4m, 5m
3, CE, Rohs

Hot Sell Newest Water Level Mini Float Switch 250V with 3M Cable





Hot Sell Newest Water Level Mini Float Switch 250V with 3M Cable

Float Switch, Liquid Level Switch, water level controller, fluid level controller monitor



-----Liquid Controller /float switch-----

-----With 4m Cable----

----Easy to install----



Float Switch, Liquid Level Switch, water level controller, fluid level controller monitor

- Brief introduction:

1.Cable Float Switch uses one-step shaping injection molding with substantial structure, cheap price and long lifetime.

2.It has very good control effect for long distance, multiple level control, submerged pump or liquid with grain or block.

3.Certainly it is also useful for normal liquid. It uses Micro Switch to make connection output. Connection point capacity 10A/250VAC can start the motor equipment directly.

4.It can be regulated freely and easy to operate, convenient to install, safe and reliable, without maintenance, non-toxic and environment friendly.

5.It can resist sewage so that widely used in pool in resident, factories and mines ect., and ponds, barrel, manger and pot with oil, acid and alkali as well as the vessel with high viscosity and suspended substance.

Float Switch, Liquid Level Switch, water level controller, fluid level controller monitor

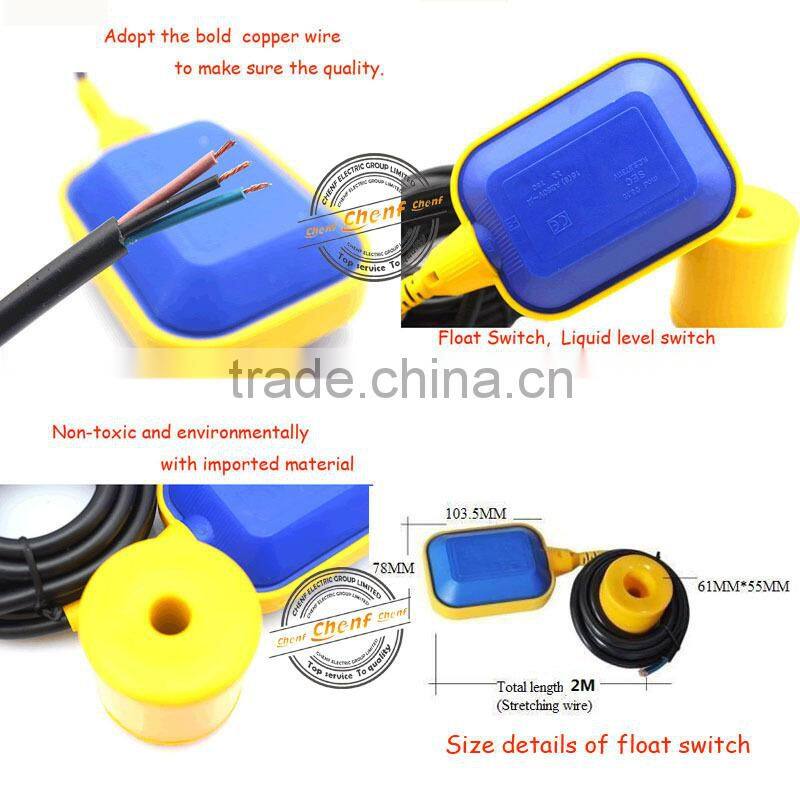

- Brief Show:

Hot Sell Newest Water Level Mini Float Switch 250V with 3M Cable

Float Switch, Liquid Level Switch, water level controller, fluid level controller monitor

- Technical Data:

Float RegulatorLiquid Controller /float switch
Rated voltage250V(380V)
Rated Frequency50Hz/60Hz
Rated current10A(3A)
Working temperature0 degee to 80 degree
Mechanical endurance≥100.000 times
Electric endurance≥ 50.000 times
Protection gradeIP68CS
Standard cable length4m
Switch currency+++ ≥50 000switch workings tested by VDE specialisation
Protective connectionT 70U
Protectionwaterproof
Working pressuremax.1bar
Circuit breaking capacityDirectly KW with 250V
FloatPolypropylene
Cablepolypropylene Jacket
Counter WeightPolypropylene Sealed Housing
Cable MaterialHO7RN- F3x0.75mm2 , PVC (3x0. 5mm2,3x0.75mm2, 3x1.0mm2)

Float Switch, Liquid Level Switch, water level controller, fluid level controller monitor

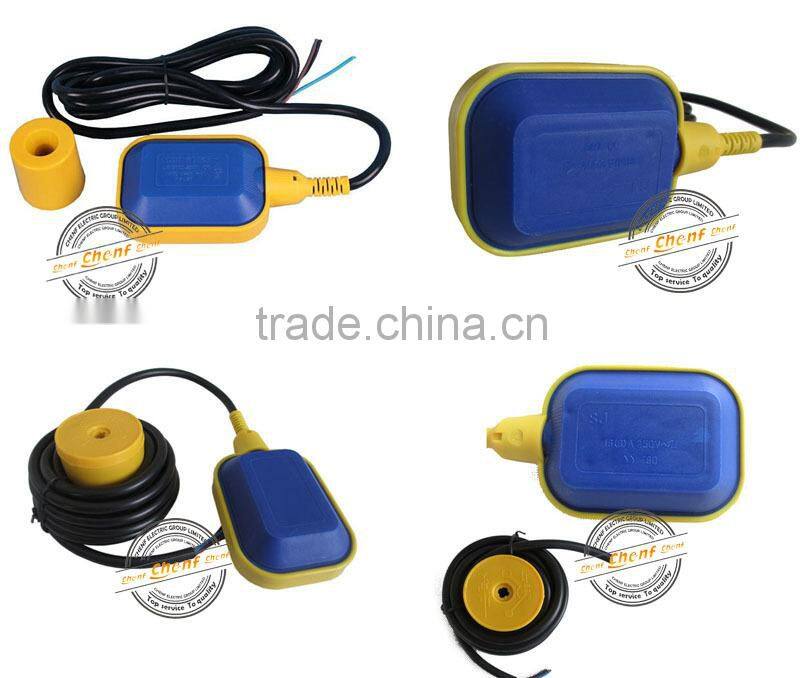

- More details:

Hot Sell Newest Water Level Mini Float Switch 250V with 3M Cable





Hot Sell Newest Water Level Mini Float Switch 250V with 3M Cable

Float Switch, Liquid Level Switch, water level controller, fluid level controller monitor



- Package:

One unit float switch, and one english instruction manual.

Hot Sell Newest Water Level Mini Float Switch 250V with 3M Cable

Float Switch, Liquid Level Switch, water level controller, fluid level controller monitor

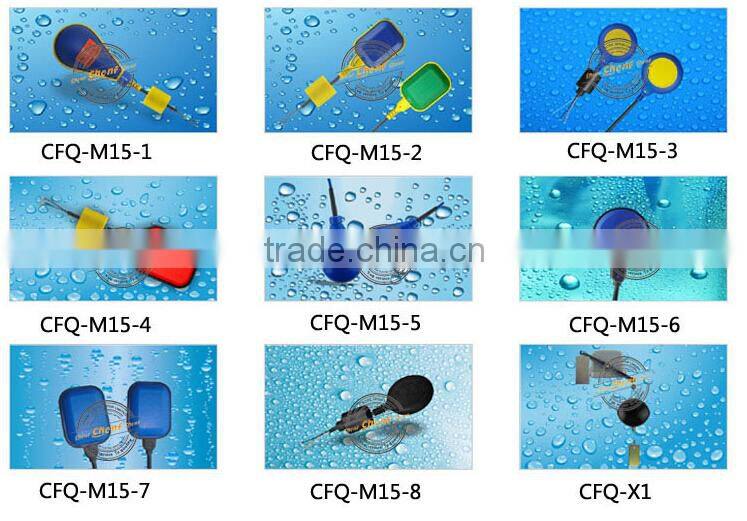

- Other series:



Hot Sell Newest Water Level Mini Float Switch 250V with 3M Cable
