Module Converter Serial Adapter Cable F Win Xp/7/8/8.1 Pl2303ta Usb

PL2303TA provides a convenient solution for connecting an RS232-like full-duplex asynchronous serial device to any Universal Serial Bus (USB) capable host. PL2303TA highly compatible drivers could simulate the traditional COM port on most operating systems allowing the existing applications based on COM port to easily migrate and be made USB ready without having to rewrite the COM port software application.

By taking advantage of USB bulk transfer mode, large data buffers, and automatic flow control, PL2303TA is capable of achieving higher throughput compared to traditional UART (Universal Asynchronous Receiver Transmitter) ports.When real RS232 signaling is not required, baud rate higher than 115200 bps could be used for even higher performance. The flexible baud rate generator of PL2303TA could be programmed to generate any rate between 75 bps and 6M bps.

PL2303TA is exclusively designed for mobile and embedded solutions in mind, providing a small footprint that could easily fit in to any connectors and handheld devices. With very small power consumption in either operating or suspend mode, PL2303TA is perfect for bus powered operation with plenty of power left for the attached devices. Flexible signal level requirement on the RS232-like serial port side also allows PL2303TA to connect directly to any 3.3V~1.8V range devices.

 This product is designed for laboratory, product testing, low-cost MCU communications and other applications, there are four lead,

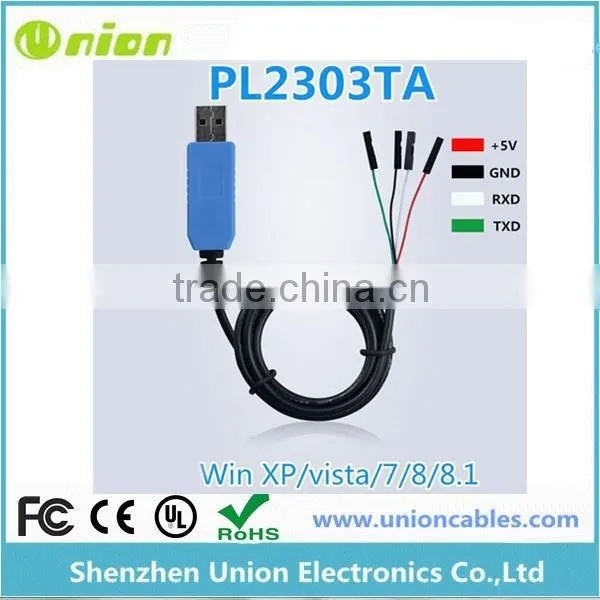

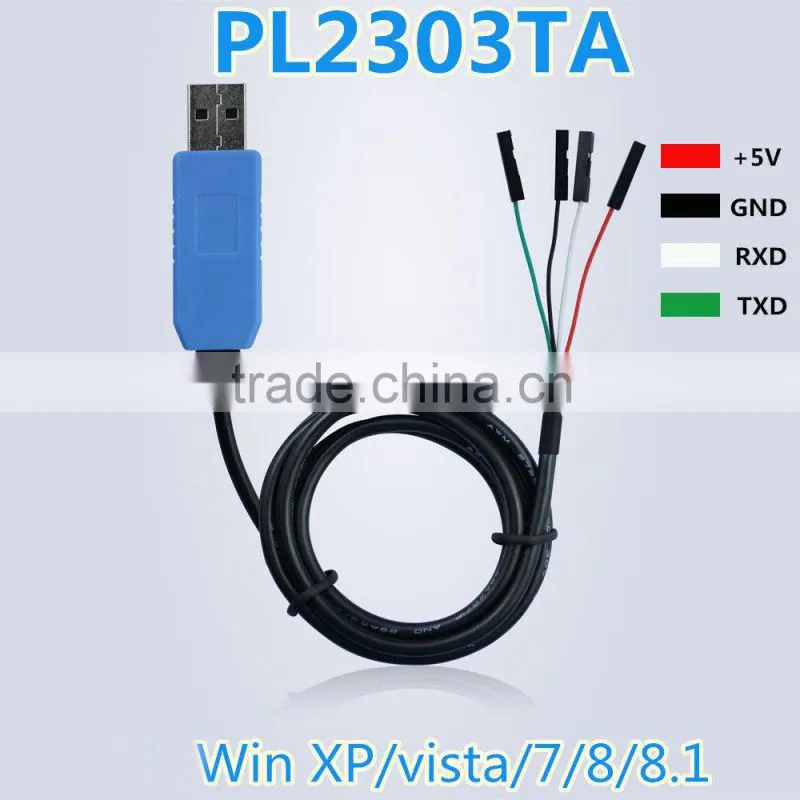

Red +5 V

Black GND

White RXD

Green TXD

Applications:

• Single-chip upgrade solution for Legacy RS232 devices to USB interface
• USB to RS232 converters/cables/dongles
• Healthcare/Medical USB Interface Data Transfer Cable
• Personal Infotainment/Media Player Docking USB Interface
• Cellular/PDA USB Interface Data Transfer Cable
• Serial-over-IP Wireless Solution
• USB Barcode/Smart Card Readers
• GPS/Navigation USB Interface
• Point-of-Sale (POS) Terminals/Printers
• PC Docking Station/Port Replicators
• Industrial/Instrumentation/Automation Control USB Interface
• USB Modem/Wireless/Zigbee USB Interface
• Set-Top Box (STB) / Home Gateway USB Interface
• BatteryCharger Application
• MCU-based devices to USB interface

Our Production Process

Our Credentials

Standard packaging size: 43.5*34*21cm

200pcs in one carton
Customised packing and length based on the quantity

What We Can Do:
1. All of our products have proceeded aging test before shipment and we guarantee to use

our products safety.
2. Support imprint your Logo on products and let your Logo shine anywhere.
3. OEM/OEM orders are warmly welcome!

Warranty and Return:
1. All products and accessoried have been tested by 3 times before ship out.
2. All products have 1 year warranty.If there is any man-made problem, we will replace or

repair for you freely.
3. We own the best after-sale service.If any problems happen, our team will do our best to

solve for customers.

  If you have any question about our product, please don't hesitate to Contact US.
