FTDI (Genuine) Chipset +3.3V Black USB to TTL Serial Cable

FTDI (Genuine) Chipset +3.3V Black USB to TTL Serial Cable thumbnail-1
FTDI (Genuine) Chipset +3.3V Black USB to TTL Serial Cable thumbnail-2
FTDI (Genuine) Chipset +3.3V Black USB to TTL Serial Cable thumbnail-3
FTDI (Genuine) Chipset +3.3V Black USB to TTL Serial Cable thumbnail-4
FTDI (Genuine) Chipset +3.3V Black USB to TTL Serial Cable thumbnail-5
FTDI (Genuine) Chipset +3.3V Black USB to TTL Serial Cable photo-1

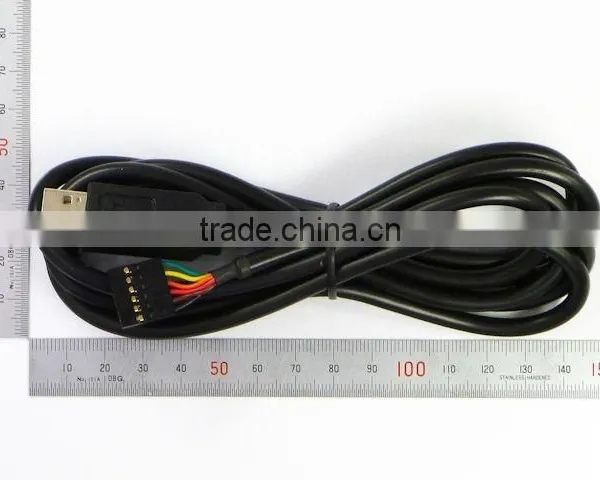

FTDI (Genuine) Chipset +3.3V Black USB to TTL Serial Cable photo-2

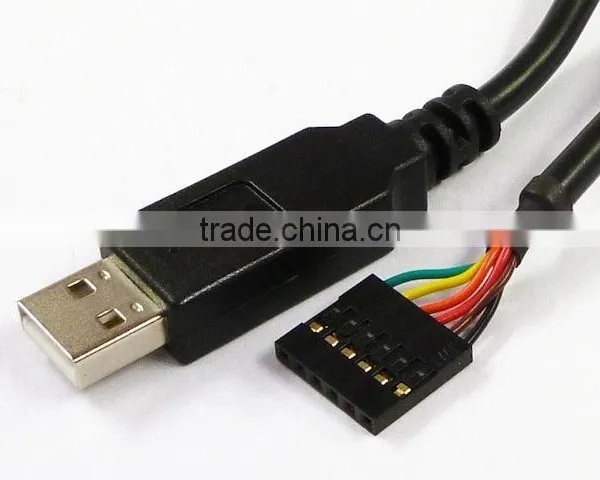

FTDI (Genuine) Chipset +3.3V Black USB to TTL Serial Cable photo-3

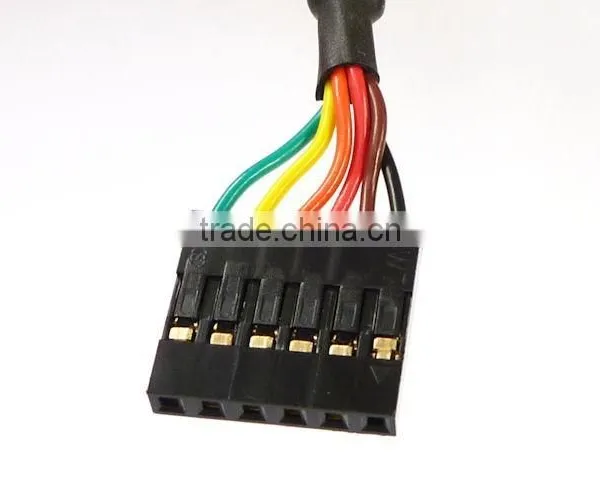

FTDI (Genuine) Chipset +3.3V Black USB to TTL Serial Cable photo-4

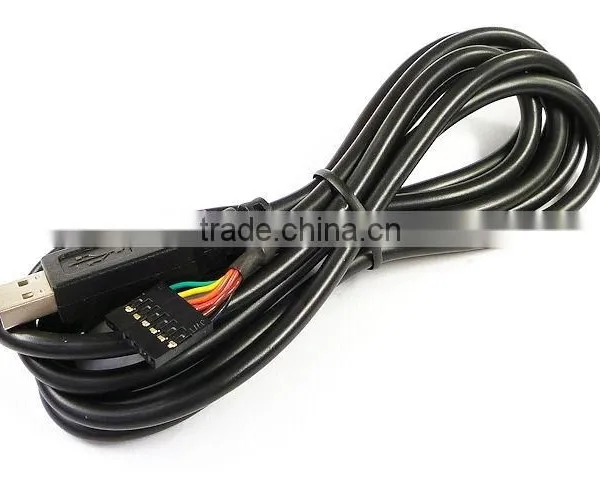

FTDI (Genuine) Chipset +3.3V Black USB to TTL Serial Cable photo-5
US$ 5 - 10 MOQ: 100 Pieces
Key Specifications
Get Latest Price
Brand Name:
OEM
Model Number:
TTL-232R-3V3
Place of Origin:
Guangdong, China
Contact Supplier Request Quote Chat Now
Shenzhen Union Electronics Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen or Hongkong
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name OEM
Model Number TTL-232R-3V3
Place of Origin Guangdong, China
Use Computer, Other, Computer, for embedded systems that require a serial connection to a computer
USB Type Standard
Product Description

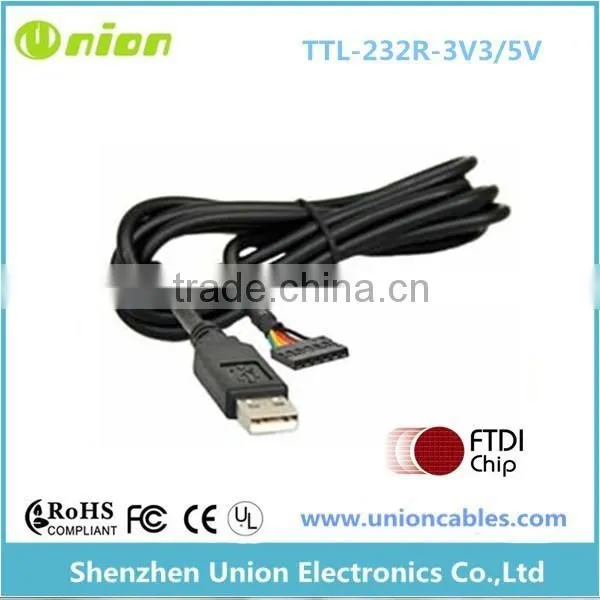

FTDI USB to TTL Serial Cable +3.3v TTL with BLACK Moulding

Genuine FTDI based USB to TTL Serial Cable are designed using the de facto standard FT232RQ chipset Genuine FTDIbased USB to TTL Serial Cable are designed using the de facto standard FT232RQ chipset (Genuine part from authorised distributors).  The cables provide a fast, simple way to connect devices with a TTL level serial interface to USB.

Designed in the UK by AVIT Research Ltd (usb2ttl). We have been designing and manufacturing serial cables since 1997.

Our circuits include regulatoin and short circuit protection unlike many other imported cables.

Please feel free to contact us for high volume sales or custom development.

NOTE that the Vcc pin voltage is +3.3v (some FTDI cables are +5v)

The cables are available with a 6-way SIL, 0.1" connector and are available at TTL levels of +5v and +3v3 in BLACK or TRANSPARENT with Rx and Tx LEDs.

See our other listings for different Voltage/Moulding:

USB2TTL5B - 5v TTL with BLACK Moulding
USB2TTL5T - 5v TTL with TRANSPARENT Moulding with Rx/Tx LEDs
USB2TTL3T - 3.3v TTL with TRANSPARENT Moulding with Rx/Tx LEDs

  • Simple and Easy way to give USB support to your designs

  • Connects directly to microcontroller UART or I/O pins

  • PC communicates as a standard serial device

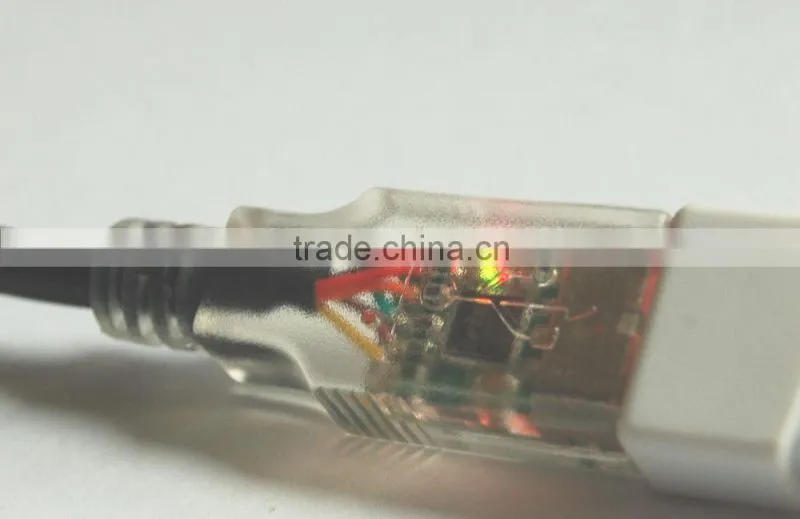

  • All circuitry integrated into sleek, moulded USB plug

  • Compatible with legacy software.

  • Based on FTDI FT232R

  • 6-way connector (Gnd, CTS, VCC, TX, RX, and RTS)

  • Supports data rates up to 3 Mbaud allowing a significant performance increase over a standard serial port.

  • Allows devices to be powered from the USB port.

  • All I/O are protected from shorts and ESD.

  • Drivers Supplied by FTDI

  • Can by customised for own branding (USB VID, PID, Descriptors etc.)

  • Cable Length 1.80m (6 ft)

Wire

 Pin Type

Function

Black

 1 power

Ground

Brown

 2 Input

CTS (Clear to Send - Device is ready to receive)

Red

 3 Output

VCC (+3.3v)

Orange

 4 Output

 PC serial Tx (TTL Rx)

Yellow

 5  Input

PC serial Rx (TTL Tx)

Green

 6 Output

RTS (Request to Send - PC has data to send)





Parameters

Min

Typ

Max

Units

Serial port speed

300

3000000

baud

Power output voltage* (3v3)

2.50

3.3

3.50

Volts

Power output voltage* (5v)



4.25		 5.0

5.25

Volts

Power output current



75

mA

Operating Temperature

-40



+85

°C

Input Voltage threshold

1.0

1.2

1.5

V

Output Voltage High (3v3)

 2.2 2.8 3.2

V

Output Voltage High (5v)

 3.2 4.1 4.9

V

Output Voltage Low

 0.3 0.4 0.6 V

*Power supply voltage is dependant on the USB port to which the cable is connected. The minimum specified is the expected worst case when connected through a bus-powered hub that conforms to the USB specification.


DATA SHEET
The FTDI TTL-232R-3V3 and TTL-232R-5V DataSheet can be downloaded from here here

DRIVERS

Drivers for Windows, Mac and Linux can be downloaded from here

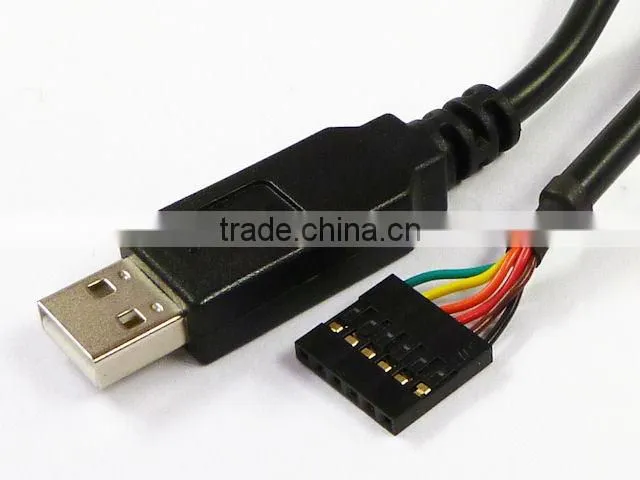

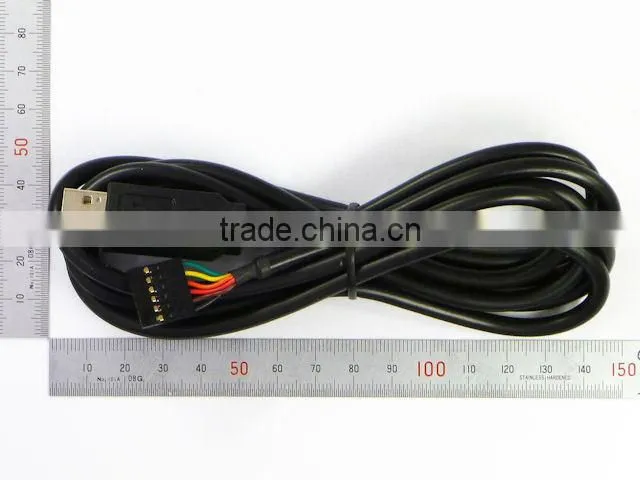

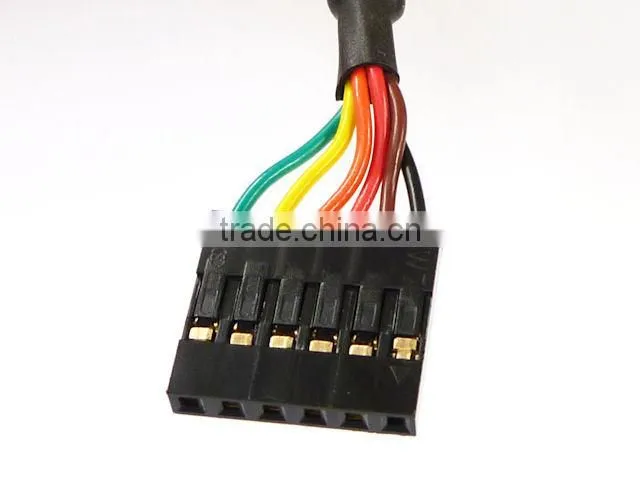

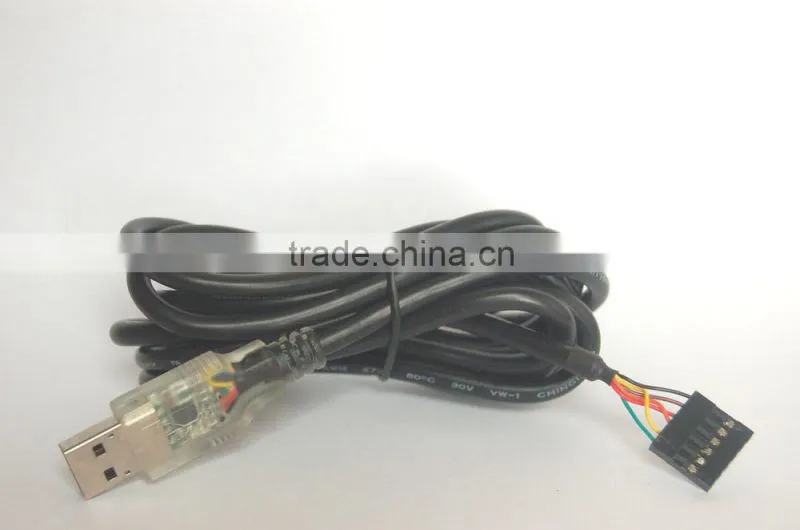

FTDI (Genuine) chipset +3.3V Black USB to TTL Serial CableFTDI (Genuine) chipset +3.3V Black USB to TTL Serial CableFTDI (Genuine) chipset +3.3V Black USB to TTL Serial Cable

 FTDI (Genuine) chipset +3.3V Black USB to TTL Serial CableFTDI (Genuine) chipset +3.3V Black USB to TTL Serial Cable



Packaging & Shipping

Standard packaging size: 43.5*34*21cm

200pcs in one carton
Customised packing and length based on the quantity

Our Services

What We Can Do:

1. All of our products have proceeded aging test before shipment and we guarantee to use

our products safety.

2. Support imprint your Logo on products and let your Logo shine anywhere.

3. OEM/OEM orders are warmly welcome!

Warranty and Return:
1. All products and accessoried have been tested by 3 times before ship out.
2. All products have 1 year warranty.If there is any man-made problem, we will replace or

repair for you freely.
3. We own the best after-sale service.If any problems happen, our team will do our best to

solve for customers.

Company Information

Shenzhen Union Electronics Co.,Ltd is one of the leading suppliers who specialized in researching, designing and producing various kinds of Cables & Adapters.

Our main products include HDMI Cable & Adapters, Display Port Cables, USB Cable, Network Cables, VGA Cables, DVI cables, Serial RS232 Cables, Component A/V Cables and related accessories.
These Products are exported to the world such as US, EU area, South America, Middle East Asia, Africa, etc. .
Our products has got high reputation from the customers.
We also can sell all the cables and adapter in small quantity,you can buy them at our Aliexpress store.
