USB to TTL Serial Cable - Debug / Console Cable for Raspberry Pi
US$ 3 - 5
MOQ: 10 Pieces
Key Specifications
Get Latest Price
Brand Name:
Union
Model Number:
TTL-232R-RPI-PL
Place of Origin:
Guangdong, China
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen or Hongkong
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
USB to Serial (TTL Level) Converter TTL-232R-3V3US$ 6 - 8MOQ: 10 Pieces -
FTDI Cabel TTL-232R-3V3 USB Serial 3.3V (FT232)US$ 6 - 8MOQ: 10 Pieces
-
TTL-232R USB TO SERIAL CONVERTER, TTL-232R-3V3US$ 6 - 8MOQ: 10 Pieces
-
USB to TTL CablesUS$ 6 - 8MOQ: 10 Pieces
-
FTDI TTL-232R-3V3US$ 6 - 8MOQ: 10 Pieces
Brand Name
Union
Model Number
TTL-232R-RPI-PL
Place of Origin
Guangdong, China
Use
Computer, Other, Computer, Raspberry Pi
USB Type
Standard
Product Description

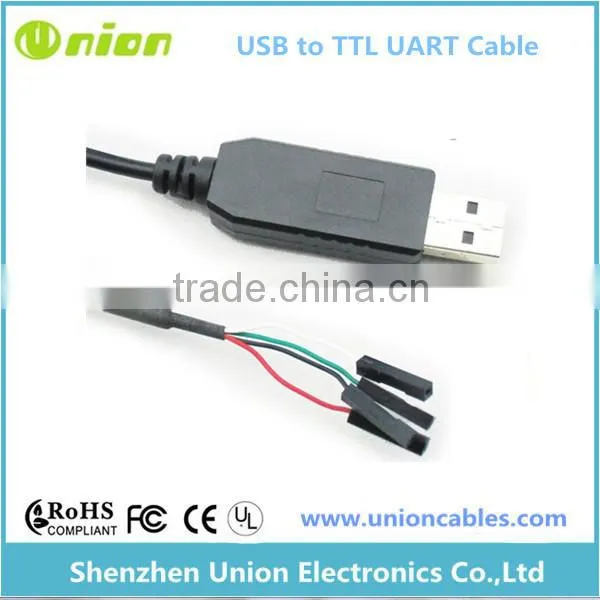

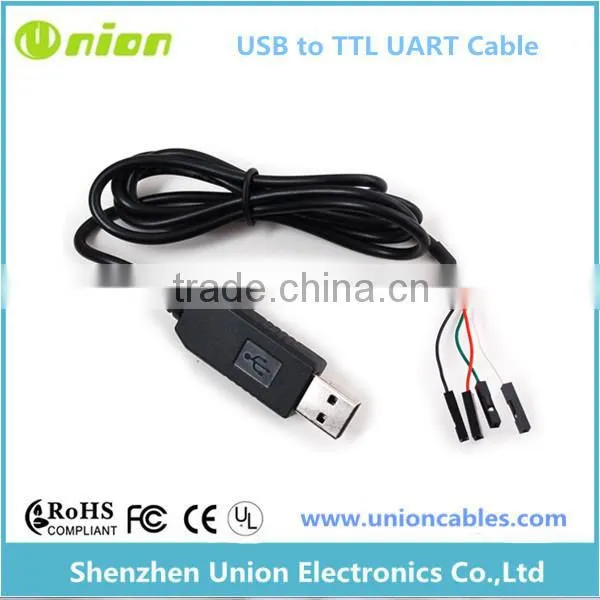

USB to TTL Serial Cable - Debug / Console Cable for Raspberry Pi
The cable is easiest way ever to connect to your microcontroller/Raspberry Pi/WiFi router serial console port. Inside the big USB plug is a USB<->Serial conversion chip and at the end of the 36" cable are four wire - red power, black ground, white RX into USB port, and green TX out of the USB port. The power pin provides the 500mA direct from the USB port and the RX/TX pins are 3.3V level for interfacing with the most common 3.3V logic level chipsets.

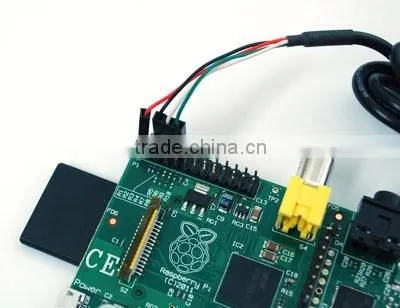

Because of the separated pin plugs, this cable is ideal for powering and connecting up to the debug/login console on the Raspberry Pi. Connect the pins as shown to power the Pi and establish the RX/TX link. Then install the Windows XP/Vista/7/8 or MacOS X PL2303HX.D drivers on your computer and connect with a terminal program at 115200 baud.
Also handy for hacking WiFi routers to install alternate OS's, or nearly any other TTL port. This is easier to use than an FTDI cable in many cases because the wires are separated
This cable is not good for Arduino re-programming such as a Boarduino, MENTA, Monochron, etc. because it does not have the DTR/RTS wire necessary for initiating the bootloader reboot sequence. For that we suggest an FTDI cable or FTDI friend.
Documents
Packaging & Shipping
Standard packaging size: 43.5*34*21cm
200pcs in one carton
Customised packing and length based on the quantity
Our Services
What We Can Do:
1. All of our products have proceeded aging test before shipment and we guarantee to use
our products safety.
2. Support imprint your Logo on products and let your Logo shine anywhere.
3. OEM/OEM orders are warmly welcome!
Warranty and Return:
1. All products and accessoried have been tested by 3 times before ship out.
2. All products have 1 year warranty.If there is any man-made problem, we will replace or
repair for you freely.
3. We own the best after-sale service.If any problems happen, our team will do our best to
solve for customers.
Company Information
Shenzhen Union Electronics Co.,Ltd is one of the leading suppliers who specialized in researching, designing and producing various kinds of Cables & Adapters.
Our main products include HDMI Cable & Adapters, Display Port Cables, USB Cable, Network Cables, VGA Cables, DVI cables, Serial RS232 Cables, Component A/V Cables and related accessories.
These Products are exported to the world such as US, EU area, South America, Middle East Asia, Africa, etc. .
Our products has got high reputation from the customers.
We also can sell all the cables and adapter in small quantity,you can buy them at our Aliexpress store.
