Product Details
Place of Origin: | Guangdong, China | Brand Name: | EVERBRIGHT | Model Number: | 6F22 006P |
Battery Type: | Zn/MnO2 | Nominal Voltage: | 9V | Size: | 9V |
Nominal Capacity: | >240 Minutes,180 Ohm, continuous discharge time, EPV: 4.8V |
Product Description
6F22 9V Carbon Zinc Battery, 9V Battery Cell
1. Specification:
Product name | 6F22 9V Carbon Zinc Battery, 9V Battery Cell |
Chemical System | Zinc-manganese dioxide (Zn/MnO2) |
Standard | IEC standard |
Nominal voltage | 9 Volts |
Average capacity | >240 Minutes,180 Ohm,continuous discharge time to 4.8V |
Open-circuit voltage | 10.30 Volts |
Length | 24.50-26.50MM |
Width | 15.50-17.50MM |
Height | 46.50-48.50MM |
Average weight | 36.40 Grams |
Shelf life | 24 Months |
Battery material | Manganese dioxide, Zinc, Acetylene black, Grophite powder, Metal jacket etc |

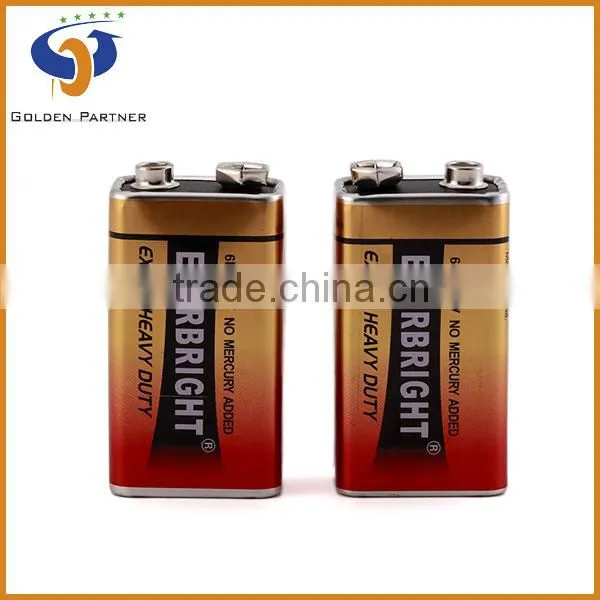

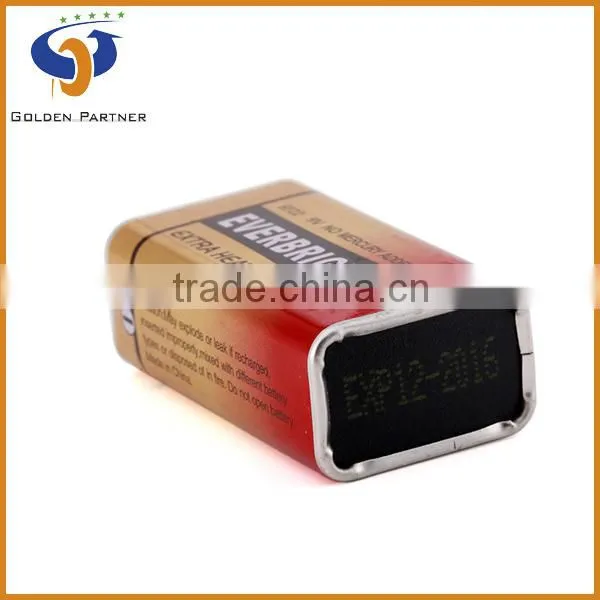

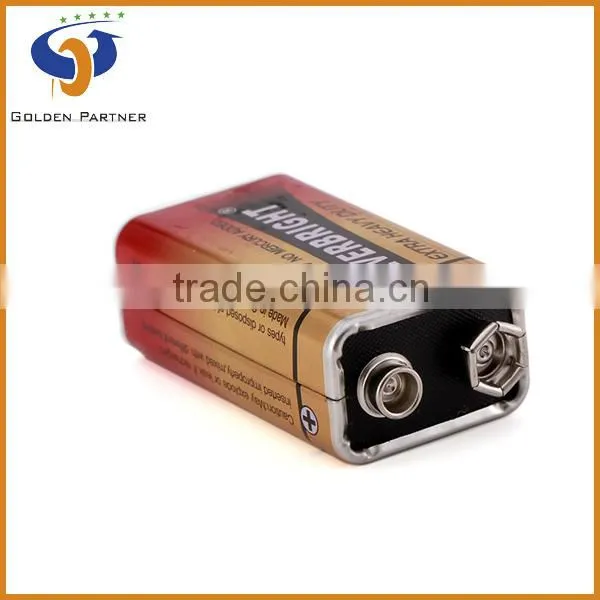

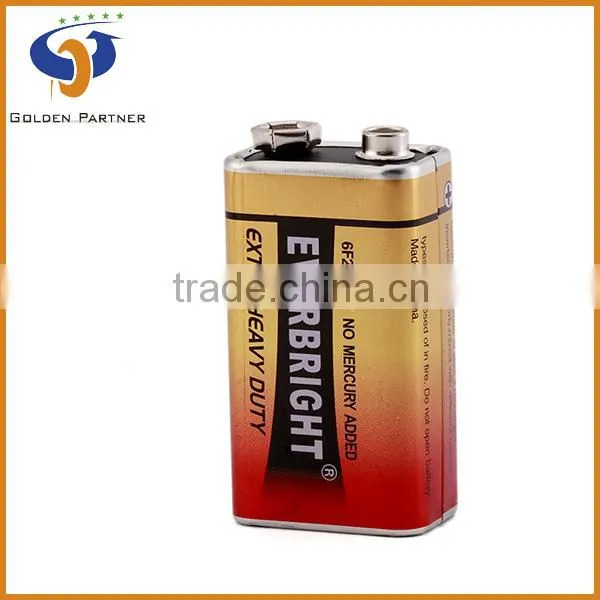

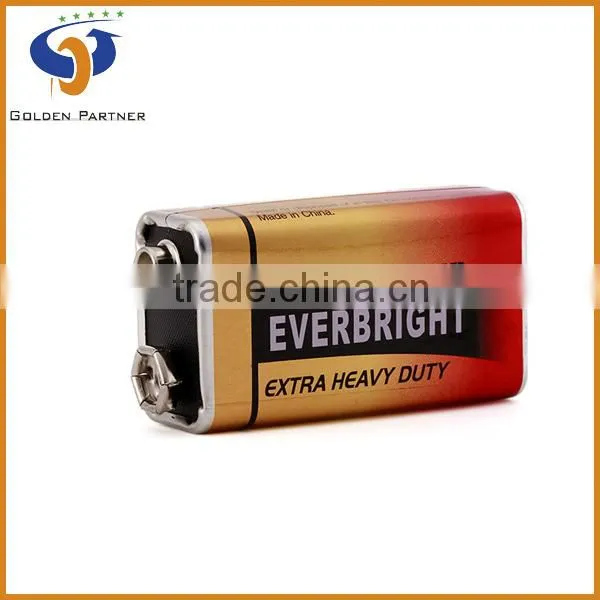

2.Detailed pictures below for your reference:
Metal jacket: Attractive appearance and safer performance.
3.Why choose our battery?
Quality | With over 18 years' experience in battery business, we guarantee each single piece of battery is reliable in quality. |
Service | Efficient and excellent service is the basic requirement you can expect from us. |
Responsibility | Your satisfaction with our batteries and our service is our responsibility. |
4.Technical data:
Art. No.
| Type
| Nominal Voltage | Shelf Life (Month) |
Test Conditions | Discharge Time | |
IEC Standard(IEC 60085-2:2007) | EVERBRIGHT | |||||
151A
| 6F22 006P 1604D |
9
|
24
| 20±2°C,180Ω, 24h/d, E.P.V. 4.8V | ----- | ≥240 Min |
20±2°C,270Ω, 1h/d, E.P.V. 5.4V | 420 Min | ≥480 Min |
5. Internal structure:
6.Packing:
Shrink pack | 1 PCS |
Inner Box | 10 PCS |
Colorful carton | 500 PCS |
Gross weight | 19.80KGS |
Net weight | 18.30KGS |
Measurement | 280X270X210MM |
7.Quality control & performance:
1)Our battery is made of high quality raw materials which have been inspected strictly before usage.
2)Our workers and technicians closely watched each step in the battery production processes, strictly executed the quality management system to insure each battery up to IEC standard.
3)Our battery has the characteristics of high capacity, long-durability, super leak-proof, good performance of continuous discharge, long time of intermittent discharge, and it has low decline rate of capacity.
8.Chemical reaction:
In a zinc–manganese dioxide dry battery, the zinc can is the negative terminal through which the electric current flows into the device. The zinc is oxidised according to the following half-equation.
Zn(s) → Zn2+(aq) + 2 e− [E° = -0.7626 volts]
The positive terminal is a mixture of chemicals – usually a mixture of manganese dioxide powder, carbon and an electrolyte to increase the electrical conductivity. A carbon electrode rod also is placed inside the middle of the battery, connecting the two metal-capped ends of opposite charge and serving as the positive terminal.The reaction is as follows:
2MnO2(s) + 2 e− + 2NH4Cl(aq) → Mn2O3(s) + 2NH3(aq) + H2O(aq) + 2 Cl− [e° ≈ +.5 v]
and the Cl− combines with the Zn2+.
There are other possible side-reactions, but the overall reaction in a zinc–manganese dioxide battery can be represented as:
Zn(s) + 2MnO2(s) + 2NH4Cl(aq) → Mn2O3(s) + Zn(NH3)2Cl2 (aq) + H2O(l)
9.Applications:
We promise to provide you with high quality products as well as high efficiency services.
