Help CenterRS485 to USB FTDI Chipset
Related Products
-
Cable USB RS232 Converter With WIRE-END, 5V 1.8M Part # FTDI USB-RS232-WE-1800-BT_5.0US$ 6 - 10MOQ: 100 Pieces -
USB-RS232-WE-1800-BT-0.0US$ 6 - 10MOQ: 100 Pieces
-
FTDI USB-RS232-WE-1800-BT-0.0 CABLE, USB TO RS232 SERIAL, 1.8M, WIRE ENDUS$ 6 - 10MOQ: 100 Pieces
-
CABLE, USB/RS232 CONV, WIRE-END 3V3 1.8M Part # FTDI USB-RS232-WE-1800-BT_3.3US$ 6 - 10MOQ: 100 Pieces
-
CABLE, USB A - RS232, SERIAL CONVERTOR, Part # USB-RS232-WE-1800-BTUS$ 6 - 10MOQ: 100 Pieces

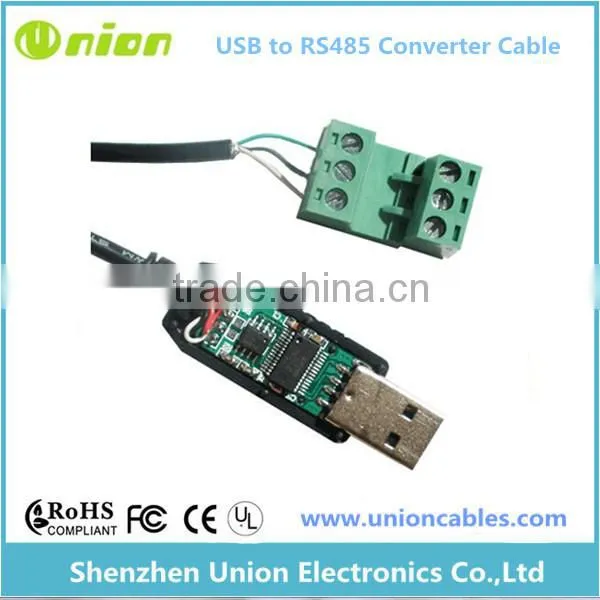

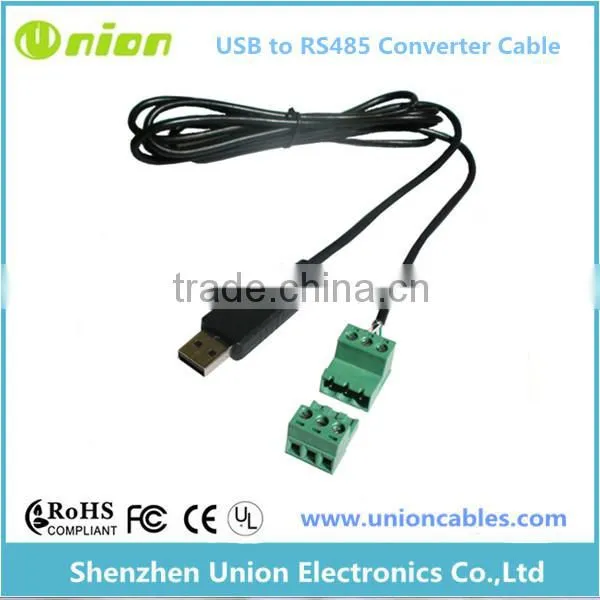

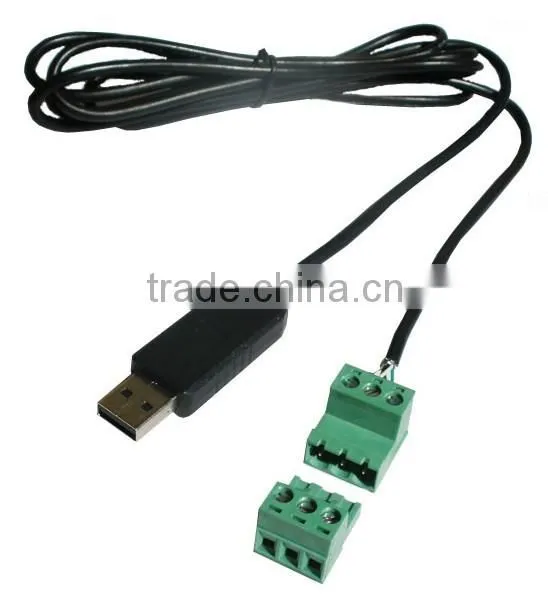

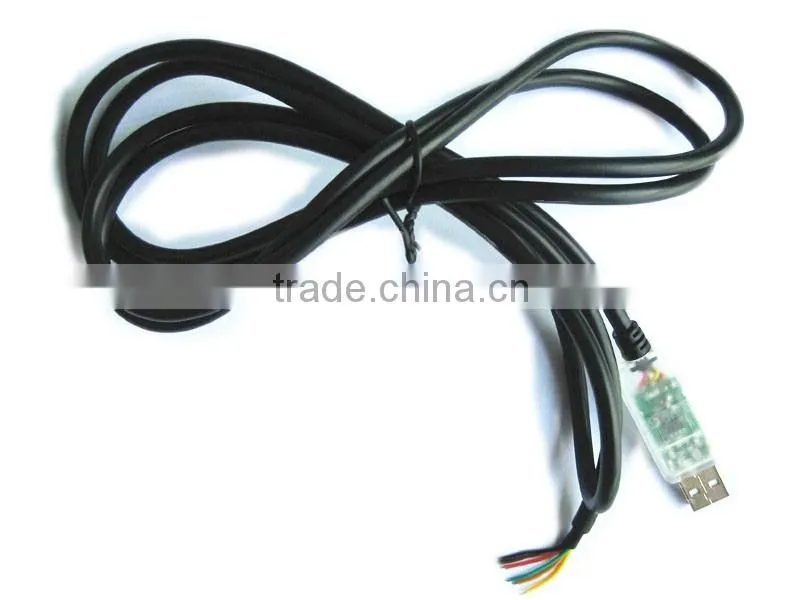

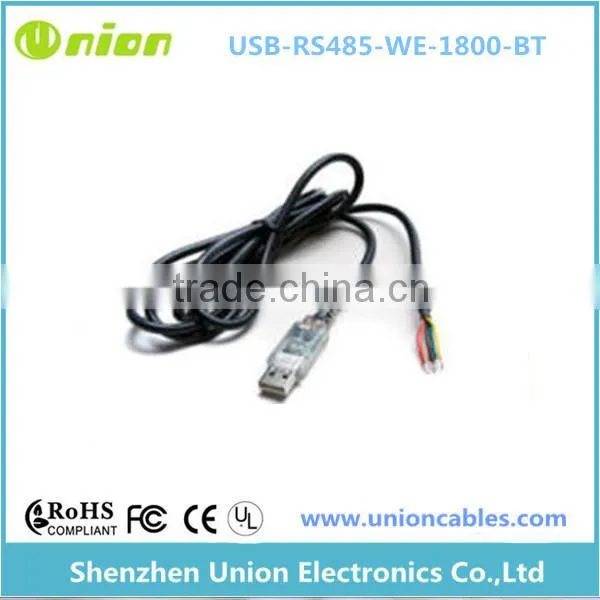

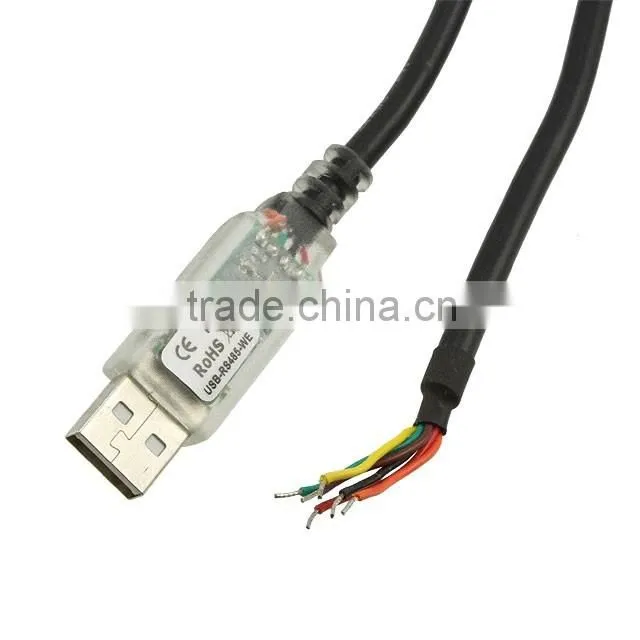

The USB-RS485 cables are USB to RS485 levels serial converters. The cables include FTDI’s FT232RQ USB to serial UART interface IC device, which handles all the USB signalling, and protocols, plus an appropriate transceiver. The cable provides a fast, simple method to connect equipment with an RS485 interface to USB.
Features:
• Entire USB protocol handled by the electronics in the cable.
• UART interface support for 7 or 8 data bits, 1 or 2 stop bits and odd / even / mark / space / no parity.
• TIA-485 and V.28/V.24 communication interface with low power requirements.
• Internal EEPROM with user writeable area.
• Data transfer rates from 300 baud to 3 Mbaud.
• Visual indication of Tx and Rx traffic via LEDs in the transparent USB connector.
• Extended temperature range (-40°C to +85°C).
• Electronics available as separate PCB.
Standard packaging size: 43.5*34*21cm
200pcs in one carton
Customised packing and length based on the quantity
What We Can Do:
1. All of our products have proceeded aging test before shipment and we guarantee to use
our products safety.
2. Support imprint your Logo on products and let your Logo shine anywhere.
3. OEM/OEM orders are warmly welcome!
Warranty and Return:
1. All products and accessoried have been tested by 3 times before ship out.
2. All products have 1 year warranty.If there is any man-made problem, we will replace or
repair for you freely.
3. We own the best after-sale service.If any problems happen, our team will do our best to
solve for customers.
Shenzhen Union Electronics Co.,Ltd is one of the leading suppliers who specialized in researching, designing and producing various kinds of Cables & Adapters.
Our main products include HDMI Cable & Adapters, Display Port Cables, USB Cable, Network Cables, VGA Cables, DVI cables, Serial RS232 Cables, Component A/V Cables and related accessories.
These Products are exported to the world such as US, EU area, South America, Middle East Asia, Africa, etc. .
Our products has got high reputation from the customers.
We also can sell all the cables and adapter in small quantity,you can buy them at our Aliexpress store.
If you have any question about our product, please don't hesitate to contact us
