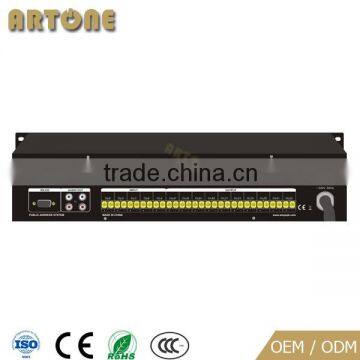

PA System 32 Channel Sound Card For Power Management Device

Features
- Standard 3U height aluminum panel, 4.8" screen display, English edit menu, shuttle button edit function;
- 8 channel audio source inputs, 32 channel audio source matrix outputs, each channel input volume adjustable, can play different programs towards different zones;
- With one channel MIC input on the front panel, fast select all zones or sub zones paging;
- Supports USB disk, SD card storage, timing control manually or automatically;
- Manually or automatically control DVD, MP3, Tuner sources and forced-switch power supply, monitor, zone controller, power sequence management and other peripheral equipment;
- Fire alarm function, alarm area auto identify, N±1 … N±5 multiple alarm modes setting;
- The system can edit four sets of timing schedule, each schedule able to edit 99 programs, the programs can be copied to other seasons and weeks;
- There are power switch, all zones paging, sub zones paging, audio sources control, matrix shift and other shortcut keys;
- Supports remote paging console, can remotely control the system power, matrix zone and audio sources, and connect 8 sets paging MIC, distance up to 1KM;
- It configures wireless remote control kit, preset 12 programmable buttons; can remote control (about 1KM) the system, such as power management, sub zones control, MP3 playing, etc.
- It designed three level security priorities: fire alarm is the top priority, remote paging is prior to background music;
- Zone output through signal matrix amplifier, when one of zone amplifier in faulty, other zone amplifiers still can work;
- With memory function, program will not be lost when it’s power off, automatically resume when it’s power on again;
Specification
Model No. |
PAS-2132 |
Built-in Audio Source |
USB, SD card |
MP3 Frequency Response |
20~20KHz/±1dB |
MP3 S/N |
95 dB |
Audio Output |
1KΩ/1V unbalanced |
Communication Speed |
9600bps |
Std Communication Protocol |
RS-422 |
Std Communication Port |
RJ45 |
Alarm Input |
Short-circuit(0V) |
Screen Display & Resolution |
4.8’’ display & 192x64 res |
Zones |
32 Channel |
Voltage Input |
AC220V-240V/50Hz-60Hz |
Voltage Output |
AC220V-240V/50Hz-60Hz |
Power Output |
Sum is 500VA, Single line 500VA |
Power Consumption |
20W |
Dimension |
485*375*132mm |
Weight |
6.9Kg |
Packaging & Shipping
First Packing: Plastic Bag (to prevent it from scratch);
Second Packing: Foam Packing (Anti Vibration or serious shock in transportation)
Third Packing: Carton Box (For easier delivery and selling)
