USB to Serial RJ45 Console Cable

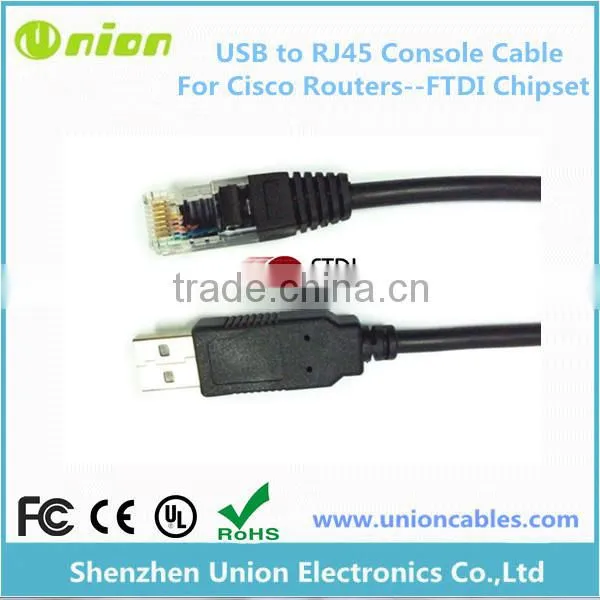

This USB to Serial RJ45 cable has an embedded FTDI FT232R and ZT213 RS232 level shifter to produce true RS232 levels and is terminated with a RJ45 connection for direct connection to Cisco and other network equipment serial console ports (DTE).
Designed for the modern PCs, Laptops which no longer have Serial Ports.
This USB to Serial RJ45 Console / Rollover Cable is a much neater, space saving alternative as it combines the two devices that most network engineers, students, technicians use on most console ports. (A USB to RS232 Adapter & a DB9 to RJ45 Cable).
One cable provides the USB to Serial & the Console/Rollover Cable and is 1.8meters (+/- 0.2m) in length. This USB-Serial RJ45 Cable can also be extended using a USB extension cables up to a maximum of 5 meters or even further if using a USB repeater/extending device.
This USB to Serial RJ45 Console Cable supports Windows XP ~ Windows 8.1 (32 & 64 Bit editions), Windows Server 2003~2012 (32 & 64 Bit editions) Linux (32 & 64 Bit editions), MAC OS 8/9 and OSX inc 10.9 (Mavericks) (32 & 64 Bit editions)
Download drivers for most Operating Systems from here
Drivers are installed automatically using the Internet when using Windows 7~Windows 8.1 via the Windows Hardware Install Wizard
(Offline installation is also possible via the driver link for non internet connected machines).
Compatible with USB 2.0 and USB 1.1, Supports Data Transfer of up to 500Kbps.
Compatible with Most Cisco Console Ports, Juniper Network Console Ports and other Data Terminal Networking Console Ports.
Pinouts for this cable RJ45 (8 Pin) are:
Pin 1 = CTS
Pin 2 = DSR
Pin 3 = RX
Pin 4 = Ground
Pin 5 = Ground
Pin 6 = TX
Pin 7 = DTR
Pin 8 = RTS
If you wanted more information regarding Cisco pinouts, they have a handy information page here
(The cable we sell is based on the rollover cable (DTE) within the information and NOT the straight through)
Product Features:
1.The RJ45 connector can also be adapted to DB9 via RJ45-to-DB9 adaptors.
2.This USB cable has an embedded FTDI 232 and RS232 level shifter to produce true RS232 levels.
( Chipset: FT232RL+ZT213)
3.USB to Serial cable, RJ45 presentation and pinouts for direct connection to Cisco and other network equipment serial console ports.
_____________________________________________________________________________
Benefits:
1.No more cables & adapters to buy and/or make to get it working
2.No more DB-9 Adapters
3.No more Mickey Mouse Prolific driver problems
4.No more fake Prolific chips
32 and 64 bit operating systems are both supporter
|
|
|
|
|
|
Standard packaging size: 43.5*34*21cm
200pcs in one carton
Customised packing and length based on the quantity
What We Can Do:
1. All of our products have proceeded aging test before shipment and we guarantee to use
our products safety.
2. Support imprint your Logo on products and let your Logo shine anywhere.
3. OEM/OEM orders are warmly welcome!
Warranty and Return:
1. All products and accessoried have been tested by 3 times before ship out.
2. All products have 1 year warranty.If there is any man-made problem, we will replace or
repair for you freely.
3. We own the best after-sale service.If any problems happen, our team will do our best to
solve for customers.
Shenzhen Union Electronics Co.,Ltd is one of the leading suppliers who specialized in researching, designing and producing various kinds of Cables & Adapters.
If you have any question about our product, please don't hesitate to Contact US.
