Features
- Built-in 100v/70v transformer
- Wall mount speaker
- 2 way speaker, 4”, 5” and 6” woofer speaker and 1” tweeter
- Power 30W, 40W and 50W at 100V line
- Metal grill and mask, ABS body and stainless mounting bracket
- Black / White color for option
- Switch for different power at 100V / 70V / 8 ohm
- Economical series with best cost-effective performance
Description

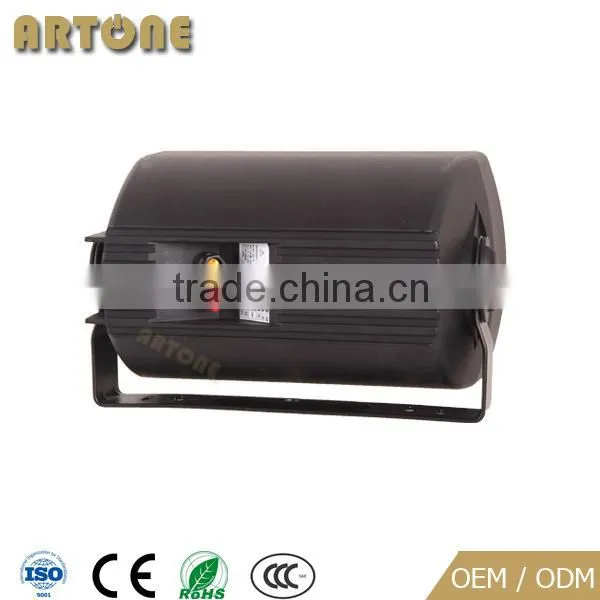

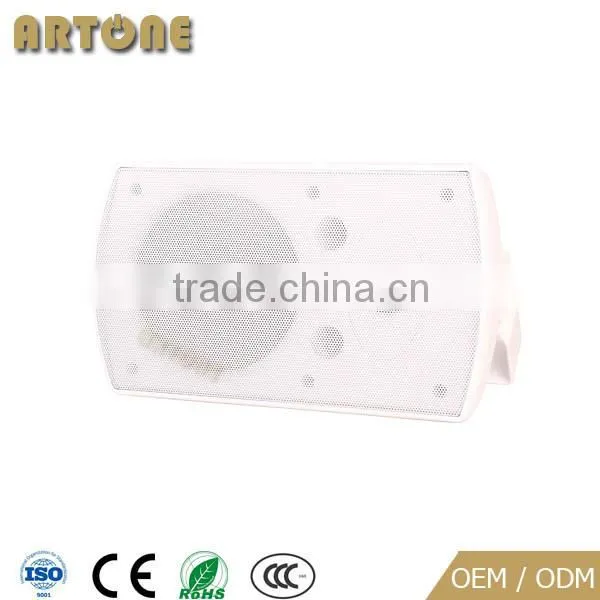

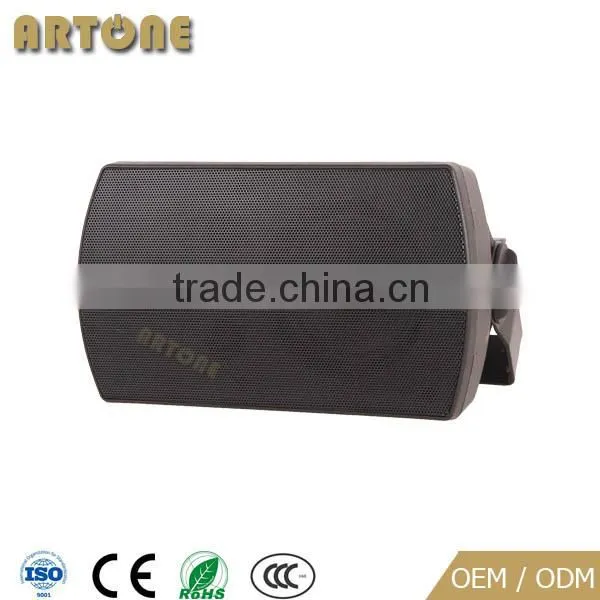

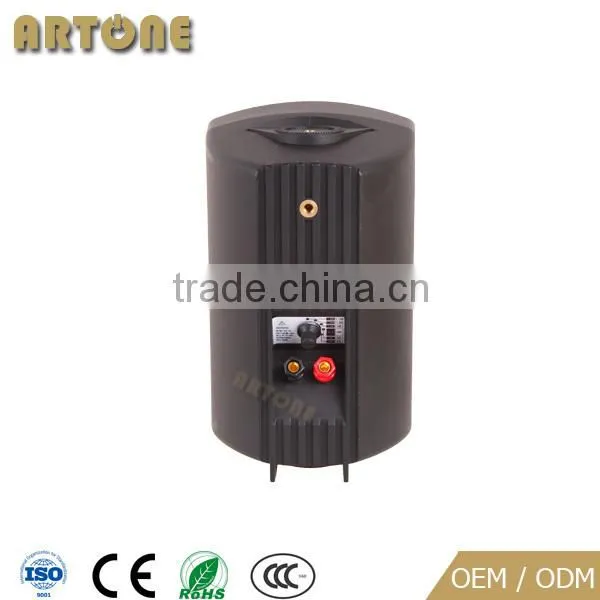

ARTONE wall mount speaker is a speaker with built-in 70v/100v transformer, which reduces line losses on long distance transfer and allows easy parallel connection of multiple speakers.
There are 4”/5”/6” woofer speaker + 1” tweeter speaker driver built-in 2 way speaker, it is able to give wide frequency response at 70-20KHz, 90-18KHz and 100-16KHz, the multiple power taps 70V, 100V, 8ohm and give power 1/2, 1/4 or full power, which are helpful for different applications varies from room size and ambient noise surroundings. The elegant design come with metal grill and ABS plastic enclosure in white color, and can be installed on wall merge to ambient field. Its stainless bracket makes the easy, fast and secure installation.
It is an ideal choice for industrial, educational and commercial applications in hotel, school, office, church, shop and factory audio system, where background music and paging is needed.
Installation Guide
The ARTONE wall mounting speaker BS-3430 / BS-3540 / BS-3650 is designed not only for environmental embedding, but also for quick and easy installation, very practical use in audio system.
Before ceiling speaker installation, user have to study the environment, choose the power of speaker, the mounting type, the noise level in surroundings, the height of ceiling, etc.
First, set the wiring properly, lead the speaker cable to the BS-3430/BS-3540/BS-3650 installation place. Take the bracket accessory from the speaker package, to fix it on the wall tight by screws. Then connect the speaker wire to wall mount speaker, and put it in the bracket and tight it between bracket by using 2 plate accessories from each side of speaker.
When the speaker is set tight on mounting bracket, it is time to adjust the position of speaker. Simply rotate the speaker from up and down to set the sound direction.
Specification
| Model No. | BS-3430 / BS-3540 / BS-3650 |
| Power and Power Tap | 30W, 40W, 50W |
| Line | 8Ω |
| Impedance | Black: Com Red:8Ω |
| SPL(1W/1M) | 88dB / 89dB / 89dB |
| Max. SPL (Rated W/1M) | 90dB / 91dB / 92dB |
| Frequency Response | 100-18KHz / 70-20KHz |
| Speaker Driver | 4”5”6” full range driver x 1 + 1” tweeter |
| Mounting | Bracket mounting |
| Material | Metal grille and ABS enclosure |
| Color | Black and white |
| Dimension | 240x145x157mm / 273x164x170mm / 335x184x187mm |
| Weight | 2.6KG / 2.9KG / 3.95KG |
| Product Quality Level | High & Medium Quality Provided |
| Price & Cost | Low price, low profit |
| Service | 7x24 online, OEM/ODM cooperation |
| Company Administration | Follow the ISO9001 standard |
| Production Capacity | Amplifiers > 5000 per month / Speakers > 20000 per month |
| QC Control | More than 10 QC staffs and strict quality control manual |
| Exhibition & Trade Show | Beijing, Shanghai, Canton, Hong Kong, Frankfurt, Dubai, Las vegas Professional Sound and Electronic Fair |
| Export Market | Asia, Africa, South America, North America, Europe, Oceania, Middle East |
| Research & Design | Professional team consist of 20 People working in anolog, digital, communication, artwork, software, hardware technicians |
| Brand Cooperated | More than 30 brands in OEM/ODM business |
A: How to set up my public address system for my project ?
R:The audio system need to calculate the power of amplifiers and speakers, and pa system differs according to different needs and features, you may consult our sales technician before purchasing.
A: Wanna start a new product
R:No problem, more than 20 professional engineers and technicians are here for you, sufficient cooperation will be provided along the new product development.
A:What's the warranty for your products?
R:Electric device like amplifiers warranty is 3 years, speakers or other small items warranty is 5 years.
A:The product range
R: PA System,Mixing Amplifier,Power Amplifier,Public Address Speakers,Ceiling Speaker,Column Speaker,Wall Mount Speaker,Horn Speaker,Hifi Speaker,DVD,DJ equipments,Wifi Audio,Multiroom Audio System,Home Audio, etc.
A:Do you have maintainance and return policy for your sold products?
R:Yes, you will get support and solution from us all the time. For small defects, we will send free necessary parts to you for maintainance or replacement, for unacceptable goods, we'll calculate the loss and get compensation, you are always safe in cooperating with us.
